| Prod Model: |
Power Star Plus Series |
| Capacity: |
1000W-12000W |
| Power Factor: |
0.9-1.0 |
| Technology: |
CPU Control |
| Display: |
LCD |
| Delivery Time: |
7-15days |
| Warranty: |
3 Years |
Product Description

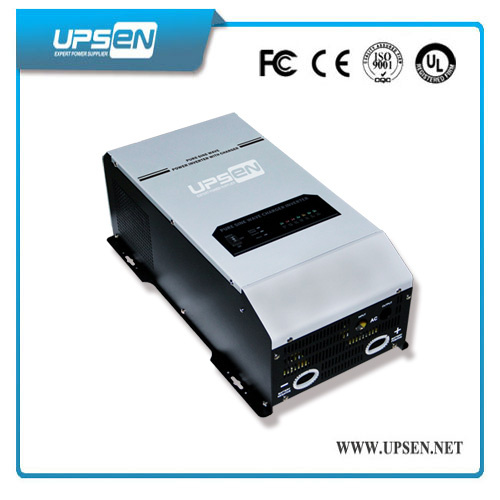

120VAC/230VAC Power supply DC AC Inverter Accept generators energy outputPure Sine Wave Inverter Charger Power Star Plus Series 1000W-12000W (1ph in/1ph out)
Key Features:
1:Remote control function
2:Bypass without battery connected
3:Super loading ability and high loading capacity
4:Automatically transfer between battery and line modes
5:temperature, and inverter's inner fault identification protections.
6:Built-in fast charger, the maximum charging current up to 100A
7:Pure sine wave output, it can be connected to an inductive load
8:Automatic conversion between battery mode and utility power mode
9:High efficiency up to 95% under line mode, and 88% for Battery Mode
10:AC output identical to, and in some cases better than the power supplied by your utility
Protection against:
Over load, over temperature, over charging, low battery,.Reverse polarity protection by fuse / diodes.Input & Output isolated.Low battery shut-down,Temperature protection,Overload protection etc.
Application
UPSEN Power Srar Inverter can be used for various appliances,Network Rooms,Education System,Medical Equipment,Financial System,Securities System,Data Processing Center,National Defense System etc.
Technical Specification| Power Star Plus Series |
| Model No. | PS Plus Series |
| Nominal Power | 1000W | 2000W | 3000W | 4000W | 5000W | 6000W | 8000W | 10000W | 12000W |
| AC Input |
| AVR Function | Available for Option |
| Waveform | Pure Sine Wave |
| Voltage | 120VAC/230VAC |
| Acceptable Voltage | 194-243VAC\164-243VAC(wide mode) | 154VAC~273VAC |
| Line Low Transfer | 85V±4%/184(154 wide mode±4%) | 154Vac±4% |
| Line Low Return | 95V±4%/194(164 wide mode±4%) | 164Vac±4% |
| Line high Transfer | 135V±4%/253±4% | 273Vac±4% |
| Line high Return | 127V±4%/243±4% | 263Vac±4% |
| Frequency | 50Hz or 60Hz (Auto sensing) |
| Line Low Transfer | 47Hz for 50Hz, 57Hz for 60Hz | 40Hz±0.3 for 50Hz |
| Line high Transfer | 55Hz for 50Hz, 65Hz for 60Hz | 80Hz±0.3 for 50Hz |
| AC Output |
| Waveform | Pure Sine Wave(bypass mode sync to input) |
| Voltage | 120/220/230/240VAC(bypass mode sync to input) | 230VAC(bypass mode sync to input) |
| Voltage Regulation | ±10%rms(bypass mode sync to input) |
| Frequency | 50Hz±0.3Hz(bypass mode sync to input) |
| Peak Power | 3 times of rating power |
| Short Circuit Protection | Yes,shutdown after 10ms | Yes,shutdown after 10s |
| Power Factor | 0.9-1.0 |
| DC Input |
| Battery Voltage | 12V/24V | 12V/24V/48V | 24V/48V | 48V |
| Minimum Start Voltage | 10V for 12V,20V for 24V,40V for 48V | 40Vdc |
| Low Battery Alarm | 10.5V for 12V,21V for 24V,42V for 48V | 44Vdc±1.2Vdc |
| Low Battery Transfer | 10V for 12V,20V for 24V,40V for 48V | 40Vdc±1.2Vdc |
| High Voltage Alarm | 16V for 12V,32V for 24V,64V for 48V | 64Vdc±1.2Vdc |
| Max Charging Current | 35A/70A | 70A | 85A | 100A |
| Over Charge Voltage | 15.7V for 12V,31.4V for 24V,62.8V for 48V | 62.8V |
| Transfer Efficiency |
| Line Mode | >95% |
| Battery Mode | >88% |
| power saver | Available when the load is less than 25 Watts | <75W |
| Indicators |
| 7-LED Display | From the right to the left,LED1 line mode (green lighting),LED2 inverter mode |
| (green lighting),LED3 charging mode(yellow lighting),LED4 Fully charged |
| (green lighting),LED5 over heat shutdown(red lighting),LED6 Overloaded |
| shutdown(red lighting),LED7 Saving Mode(green lighting) |
| 3-LED Display | Charging Mode(green lighting),inverter mode(green lighting),Alarm(red lighting) |
| Switch selector | Saving Mode is on/off when push the switch forwards/backwards, keeping it horizontal is turning the inverter off. |
|
| Audible Alarm | Sounding when the heatsink's tem is over 105ºC and shutdown after 30 seconds. |
| Protections | low battery,over charging,over temp,over load |
| Communications | RS-232/USB(custom-made) |
| Enviromental |
| Operating Environment | 0-40ºC,0-90%RH(non-condensing) |
| Audible Noise | <60dB |
| Physical |
| Net Weight(KG) | 18 | 20 | 22 | 35 | 38 | 40 | 60 | 66 | 70 |
| Dimension L*W*H | 442*218*179mm | 598*218*179mm | 750*520*310mm |
| *Specification is subject to change without prior notice. |
Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.

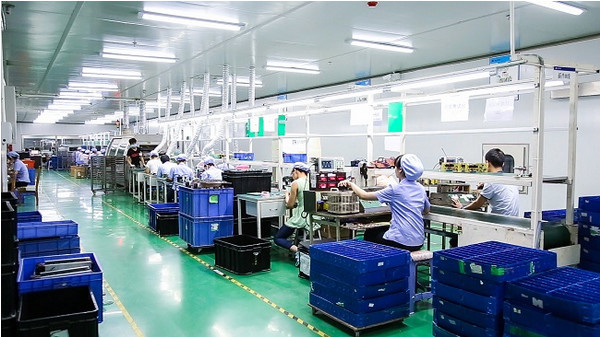

We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
