| Prod Model: |
Rack Mount Star Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Interface: |
USB/RS232 |
| Temperature Compension: |
Yes |
| Transfer Time AC To DC: |
Zero |
| Size: |
2u, 3u 5u |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Upsen |
Product Description

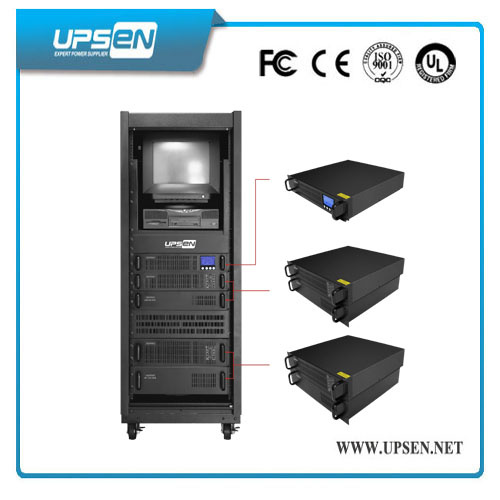

Pure Sine Wave Rack Mounted UPS for network devices
Model:Rack Mount Star Series 1K-10KVA
Key Features:
1)Intelligent slot available
2)excellent electrical performance
3)Wide input voltage range, Zero transfer time
4)Fan speed auto control when loads varies
5)Protection against all types of power problems
6)Auto Self-Testing System whileTurning on UPS
7)Humanization bypass output, can be adjustable.
8)Provide intelligent slot, Provide standard battery pack
9)Smart RS232 communication with monitoring software
10)Input L and N lines reverse wiring detection, Auto start when AC back.
11)the user can easily get UPS status information, including the working mode
12)LED/LCD Indicators display Detailed Real-Time UPS Status and parameters.
13)Set Output Voltage, Frequency parameter and bypass function on the display.
Applications
RM Series 1KVA~10KVA High Frequency Rack Mount Online UPS is specially designed for
servers, Data-center, critical network devices, Sensitive electronic equipment, Telecom,Transmission equipment,,communication,public security, ATM etc.
Technical Specification
Model | RM1K | RM2K | RM3K | RM1KL | RM2KL | RM3KL | RM6KL | RM10KL |
| Rated Power | VA/W | 1Kva/ 0.8Kw | 2Kva/ 1.6kw | 3Kva/ 2.4Kw | 1Kva/ 0.8Kw | 2Kva/ 1.6Kw | 3Kva/ 2.4Kw | 6Kva/ 4.8Kw | 10Kva/ 8Kw |
| Input | Phase | Single Phase with Ground |
| Nominal Voltage | 110115//120Vac or 220/230/240Vac | 220/230/240Vac |
| Voltage Range | 60-138VAC or 115 ~ 300VAC | 176 ~ 276VAC |
| Frequency Range | 46 ~ 54Hz(default), user adjustable within 40~60Hz | 46 ~ 54Hz |
| Power Factor | 0.97 | 0.98 |
| Connection | IEC320-10A inlet | IEC320-16A inlet | IEC320-10A inlet | IEC320-16A inlet | Terminal Block |
| Output | Phase | Single Phase |
| Voltage | 110/115/120Vac or 220/230/240VAC ± 2% | 110/115/120Vac or 220/230/240VAC± 1% |
| Frequency | 46~54Hz or 50Hz ± 0.2Hz (Line mode) | 46~54Hz (Line mode) |
| 50Hz ± 0.2Hz ( Battery mode) | 50Hz ± 0.05Hz ( Battery mode) |
| Waveform | Pure Sine Wave |
| Overload Capability | 108%~150% for 30 sec., 150% for 300 ms | 105%~130% for 10 min.,130% for 1 min. |
| Current Crest Ratio | 3:01 |
| Connections | IEC320 - 10A * 4 | IEC320-10A and Terminal Block | IEC320 - 10A * 4 | IEC320-10A and Terminal Block | IEC320-10A * 4 and Terminal Block |
| Bypass | Auto Transfer | on overload and UPS failure |
| Before UPS Power-on | Default "NO", user adjustable to "YES" | Yes |
| Voltage Rangee | 80~264VAC (Default), user adjustable within 80~286VAC | 176 ~ 261VAC |
| Transfer Time | 0 ms; less than 4 ms from inverter to bypass and vice versa | Zero |
| LED&LCD indicators | Load level / Battery level, Battery , Utility Power, Inverter, Bypass, Overload, Fault |
| Audible Alarm | Bypass, On battery mode, Battery low, Overload, Fault |
| Communications | RS-232 Serial Interface |
| Intelligent Slot; |
| OPTIONS: WEBPOWER SNMP/WEB card, AS400 card or WinPower CMC) |
| Network Surge Protection | RJ45 I/O port available for network or Fax/Modem |
| Environmental | Operating Temperature | 0 ~ 40°C |
| Operating Humidity | 20 ~ 90% non-condensing |
| Main Unit | Net Weight (Kg) | 16.3 | 10.3 | 11.2 | 9.1 | 11.5 | 12.3 | 18.3 | 20.3 |
| Dimensions (W x D x H) mm | 482 x 420 x 88 (2U) | 482 x 420 x 88 (2U) or (3U Internal Batteries | 482 x 420 x 88 (2U) | 482.6 x 600 x 130 (3U) Optional 4U |
| Battery Pack | Type | Internal Batteries | |
| Nominal DC Voltage | 24/36VDC | 72/96VDC | 24/36VDC | 72/96VDC | 192/240VDC |
| Battery Numbers & Capacity | 2/3Pcs *12V9Ah | 6/8Pcs*12V7.2Ah | Depending on the capacity of external battery packs |
| Backup Time (Full load) | 5min | 9min (with 1 BP) | 5min (With 1BP) |
| Recharge Time | 5hrs to 90% |
| Charging Current (Max.) | 1.0A | 8A±1A | 4.2A |
| Charging Voltage | 27.4/41.1Vdc±0.6V | 110Vdc±0.4V | 41.1Vdc±0.6V | 110Vdc±0.4V | 274Vdc±1%V |
| Net Weight (Kg) | --- | 25.3 | 25.3 | --- | --- | --- | --- |
| Dimensions (W x D x H) mm | --- | 482 x 420 x88(2U) | --- | --- | --- | --- |
| *Specification are subject to change without prior notice |
