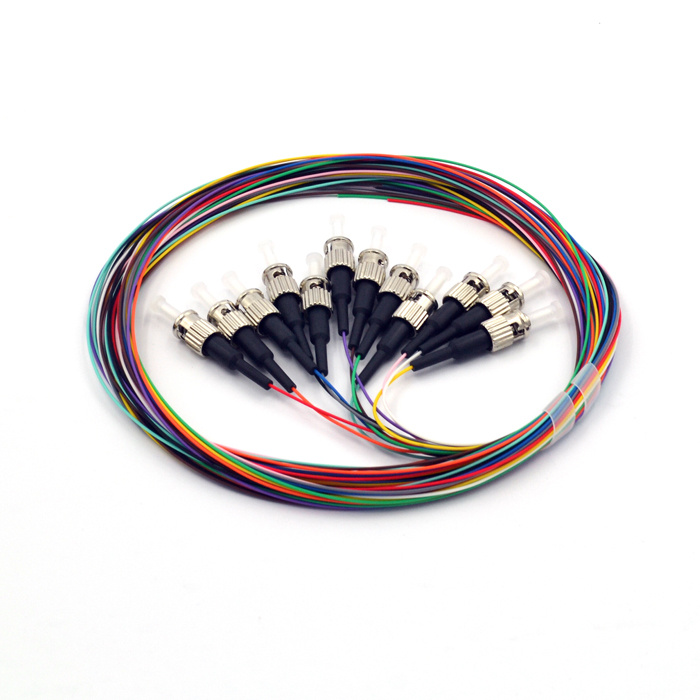

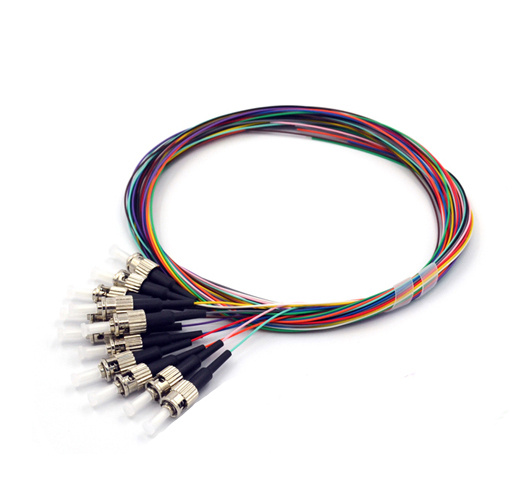

12core St/Upc Multimode 50/125 Multi-Colored Fiber Optic Pigtails

Name: 12core St/Upc Multimode 50/125 Multi-Colored Fiber Optic Pigtails
Brand: all-electronics-online.com
SKU: 770882325
Availability: InStock
Rating: 4.7 (92 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	12 C ST
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber Optic Pigtail:	Fiber Pigtail
St Pigtail:	mm Pigtail
Fiber Optic Cable:	Optical Fiber
Color:	Black Blue Red,Auqa,Biege,Ect,
Cable Diameter:	0.9mm 2mm 3mm
Length:	Customized
Fiber Type:	9/125sm 50/125 62.5/125mm Om3 Om4
Product Name:	Optical Fiber Patch Cord
Insertion Loss:	Less Than 0.2dB
Return Loss:	More Than 60dB
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	ST
Certification:	ISO9001

Product Description

Fiber Optic Pigtail:

A fiber pigtail is a single, short, usually tight buffered, optical fiber that has an optical connector pre-installed on one end and a length of exposed fiber at the other end.
The end of the pigtail is stripped and fusion spliced to a single fiber of a multi-fiber trunk. Splicing of pigtails to each fiber in the trunk "breaks out" the multi-fiber cable into its component fibers for connection to the end equipment.

Application
¨         Telecommunication
¨         CATV, FTTH, LAN
¨         Fiber oiptic sensors
¨         Optical transmission system
¨         Test equipment
Features
¨         Screw-thread coupling mechanism
¨         Ceramic ferrules connectors
¨         Low insertion loss, high return loss
¨         Excellent mechanical endurance
¨         High credibility and stability
¨         Good in repeatability and exchangeability
¨         100% Insertion, Return Loss, End Face and Interference inspection

Technical Data

Parameter

Unit

FC, SC, LC

ST, MU

MTRJ, MPO

E2000

UPC

APC

UPC

APC

Insertion Loss

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

Return Loss

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Repeatability

≤0.1

Durability

≤0.2dB typical change, 1000 matings

Operating temperature

ºC

-20 ~ +75

Storage temperature

ºC

-40 ~ +85

Ordering Information

Connector	Fiber Core	Cable Diameter	Fiber Type	Polishing	Cable Jacket	Cable Color	Fiber Length
LC SC FC ST D4 MU DIN SMA MPO MTRJ E2000	Simplex Duplex	0.9mm 2.0mm 3.0mm	SM:9/125um MM:50/125um MM:62.5/125um OM3	PC UPC APC	PVC LSZH	Yellow Orange Aqua others	1M 2M 3M 10M 20M 30M
