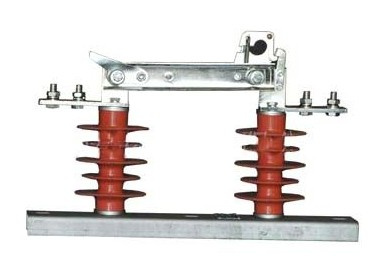

12kv High Voltage Load Break Switch

Name: 12kv High Voltage Load Break Switch
Brand: all-electronics-online.com
SKU: 816794685
Availability: InStock
Rating: 5 (49 reviews)

Price:	US $ 300-1050/Piece
Min Order:	200/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	FGW9-12
Material:	Silicon Rubber/Resin Pillar Type
Type:	High-voltage
Structure:	Single-column Disconnector
Installation:	Outdoor High-voltage
Operation:	Manual
Grounding:	Single Ground
Series:	Single-Stage
Run:	Vertical Rotation
Certification:	CE
Common Model:	Fgw

Product Description

Overview:
FGW9-12 high-voltage load isolation switch is that our company absorbs foreign advanced technology development of a high-performance disconnector, with reliable contact, circulation capacity, have a certain ability to arc and so on. For power systems with a rated voltage of 10kv, use this as a voltage to turn on and isolate the power supply. The isolating switch must be operated with a special hand-held load disconnect device to avoid personal injury and Equipment damage.
We developed the product can be divided into resin pillar and composite pillar type, in which the composite pillar type has better anti-pollution ability and no-clean characteristics.

Application environment:
1. Plains type elevation is not more than 2000m, plateau altitude isn't more than 4000m;
2. Ambient air temperature: + 40 ºC, -30 ºC
3. Wind pressure does not exceed 700Pa (wind speed 34m / s)
4. Seismic intensity does not exceed 8 levels
5. No frequent violent shocks
6. No influence around the switch insulation properties, conductive capacity of the gas, chemical precipitation, salt spray, dust and other explosive, aggressive gas.

Main technical parameters:

Item	System voltage kV	Rated current A	Rated 4s thermal stability current kA	Lighting impulse withstand voltage kv	Power frequency withstand voltage, 1 min kv
FGW9-12/400	12	400	12.5	75	42
FGW9-12/630	12	630	20	75	42
FGW9-12/900	12	900	25	75	42
					42
FGW9-12/1250	12	1250	40	75	42
					42
FGW9-15/400	12	400	12.5	110	47
FGW9-15/630	12	630	20	110	47
FGW9-15/900	12	900	25	110	47
FGW9-15/1250	12	1250	40	110	47

Shanghai Powery Industries Co., Ltd. Located in Shanghai China, our factory located in the beautiful seaside city--Qingdao, covering more than 10000sqm, with the workshop covering an area of 5000sqm, is a advanced management company, which is about 15 minutes' drive away from the Qingdao airport and about half-hour's drive away from the port.

We are engaged in the design, manufacture and marketing services of rigging, vessel and container fittings, electric power fittings, and high and low voltage transmission and distribution line fittings. We have been equipped all kinds of forging machines, casting machines, punching machines, lathes and drilling machines. "Quality and Service" is our top belief. Our products have been exported to Asia, America and Africa for many years. Most of our friends and customers are satisfied with our quality and services, on the basis of which, long-term friendships have been established.

Being ISO9001: 2008 certified and with permits for all products, we produce all products according to relative International Standards and customers' requirements.

You and your esteemed company are welcomed to visit us. Our best services, famous Qingdao beach sightseeing and delicious seafood are waiting for your presence.
