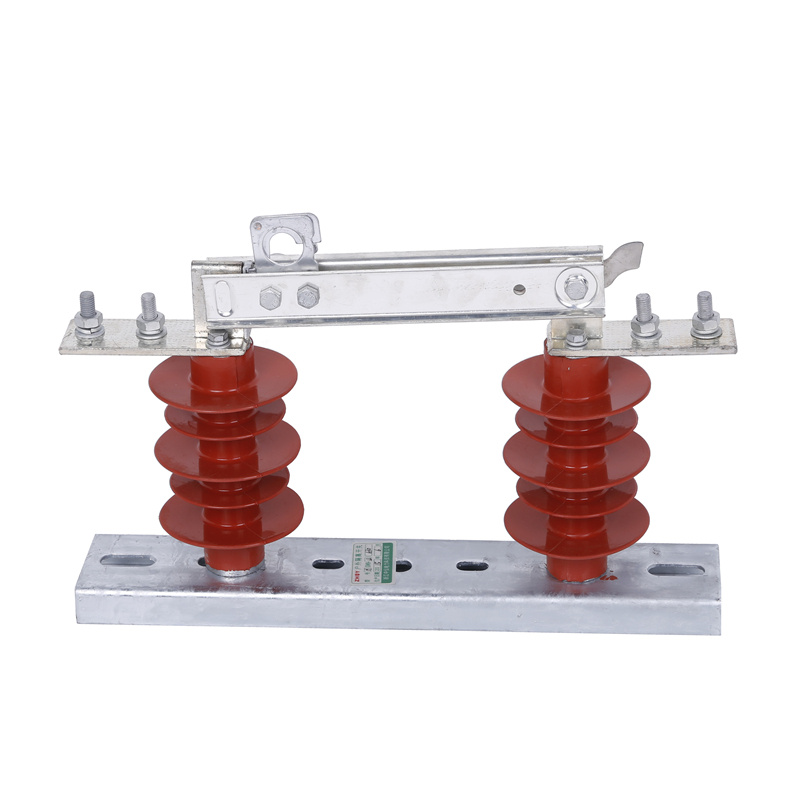

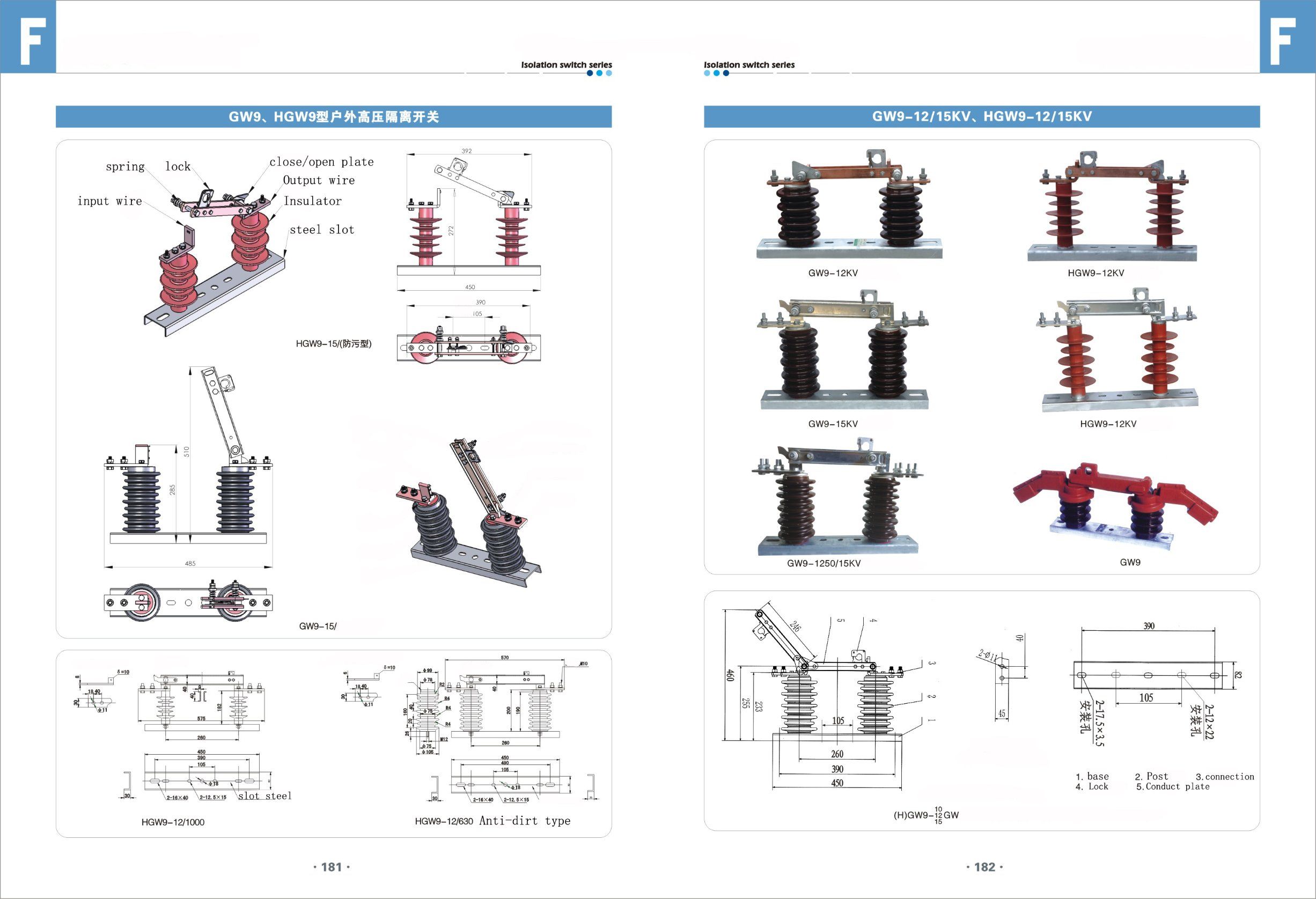

12kv Outdoor High Voltage Air Break Switch

Prod Model:	GW9-12
Material:	Silicon Rubber
Type:	High-voltage
Structure:	Single-column Disconnector
Installation:	Outdoor High-voltage
Operation:	Manual
Grounding:	Single Ground
Series:	Three
Run:	Vertical Rotation
Switching Mode:	Single Throw-in
Certification:	CE

Product Description

Structure Introduction:
1) This product is a three-phase line system for single-phase application, simple structure, economical and convenient.
2) This product is a single fracture vertical open structure, single pole isolation switch pillar insulator installed in the respective chassis, the main base, pillar insulator, the main conductive circuit part, self-locking device and other components. The use of knife-type structure of sub-closing is to achieve cutting and closing lines. Each phase piece consists of two conductive inserts, the compression spring on both sides of the blade, adjust the height of the spring can get the contact pressure required to switch the knife. Switch off when the use of insulated hook bar operating mechanism part, the knife has a self-locking device.

Operating principle:
1) When the disconnector is disengaged, the insulation hook is used to lock the hook of the disconnector, pull the hook to the opening direction, unfasten the self-locking device and drive the connected conductive plate to realize the opening action , Closed by the insulation hook rods to withstand the isolation switch hook to drive the rotation of the shaft, so that the connected conductive plate to the closing position, then self-locking device to talk about the isolation switch locked in the closing position.
2) This type of isolation switch can be installed in the pillars, walls, ceilings, cross frame or metal frame, can also be installed, ramp loading, but the installation position should be turned when the knife is turned to the bottom.


Item			Unit	Parameters
Rated voltage			KV	12		15
Maximum operating voltage			KV	12		7.5
	Power frequency withstand voltage, 1 min	to ground	KV	40		40
		fracture		47		47
	Lighting impulse withstand voltage	to ground	KV	105		105
		fracture		120		120
Rated frequency			HZ	50
Rated current			A	630	800	1000	1250
Rated 4s thermal stability current			KA	20	25	25	31.5
Rated dynamic current (peak)			KA	50	63	63	80
Creepage distance			MM	300		380
Mechanical life			TIMES	2000		2000
