12V 144ah Deep Cycle Gel Solar Battery with ISO9001 Approved

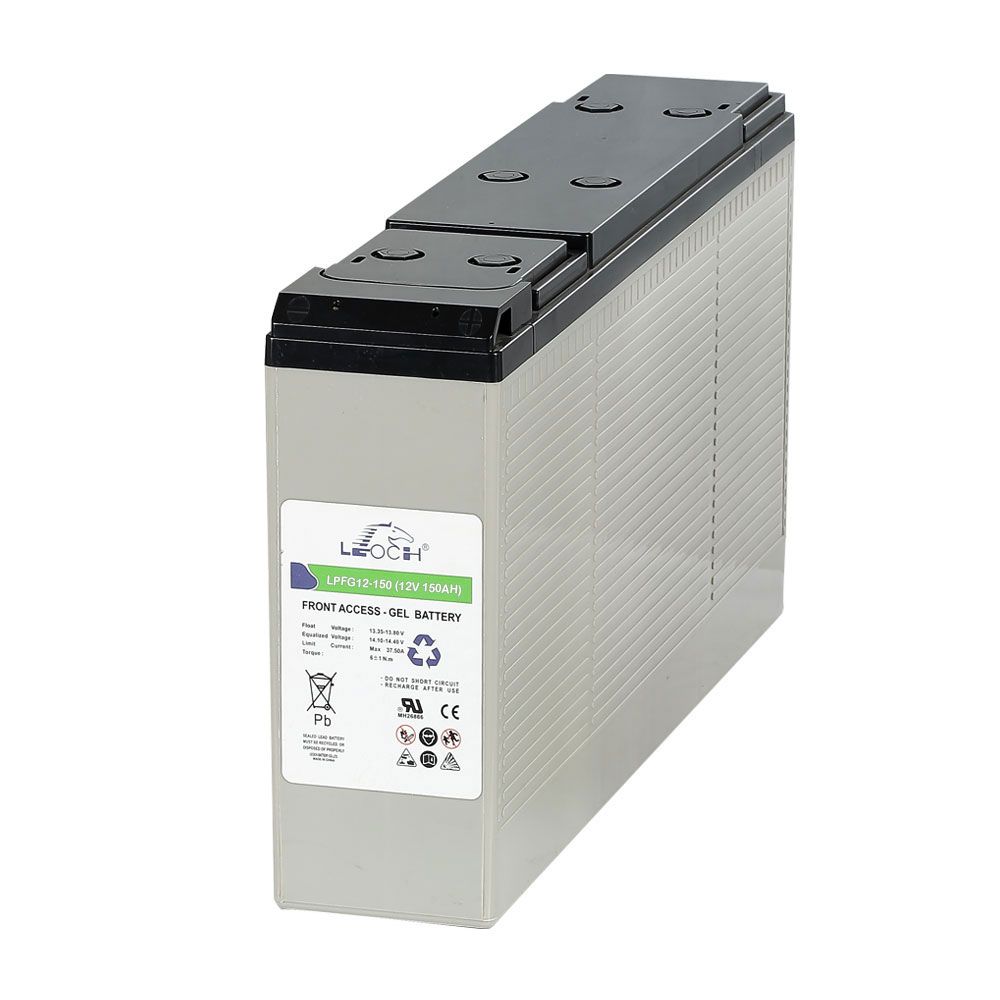

Name: 12V 144ah Deep Cycle Gel Solar Battery with ISO9001 Approved
Brand: all-electronics-online.com
SKU: 776200555
Availability: InStock
Rating: 4.8 (40 reviews)

Price:	US $ 10-150/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPFG12-150
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	ISO14001 / ISO9001 / IEC / Tlc / UL / CE
Approx Dimension:	551mm X110mm X 287mm
Total Height:	287mm
Weight:	47.4kg
Terminal Type:	T6
Usage:	Telecom, Emergency Backup Power Supply
Nominal Voltage:	12V
Discharge Rate:	High Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable
Type:	Gel

Product Description

General Features:
1. Specifically ideal for 19 inch or 23 inch power cabinets
2. Front terminals make the installation, maintenance and supervision easy
3. Shield designs protect terminals from short circuit and show good appearance
4. Unique vent valve design: reduce water losing and prevent air/spark going inside
5. Thick plates, special formula of paste and plate making process for a long service life
6. ABS material: increase the strength of battery container (Flame-retardant ABS is optional)
7. Long time discharge
8. Suitable for space and storage electric power use
9. Special plate design, long cycle lifetime
10. Using special lead-calcium alloy to boost up the grid anti-corrosive performance and extend the battery using lifetime
11. Using special separator to boost up the battery performance inside
12. High thermal capacity, reduce the risk of thermal out of control and drying hard, can be used in bad environment
13. High gas recombined reaction efficiency
14. Little water losing, no electrolyte stratification phenomenon
15. Long storage time
16. Good deep discharge resilience performance
17. Using gas silicon dioxide, small granule degree, bigger than surface area

Certifications: ISO14001 / ISO9001 / IEC / Tlc / UL / CE, etc.

Typical Applications:
For standard 19 inch or 23 inch power cabinets
Network connection equipment of communication system
Power system of special network or local area network
UPS, standby power supply
Power station systems
Marine systems

Specifications:

Model	Nominal Voltage (V)	Rated Capacity(AH)				Approx Dimension								Approx Weight		Terminal type
		20HR	10HR	5HR	1HR	Length		Width		Height		Total Height		Approx Weight
		1.80 V/cell	1.80 V/cell	1.75 V/cell	1.60 V/cell	mm	in.	mm	in.	mm	in.	mm	in.	kg	lbs
LPFG12-70	12	70	65.8	57.8	40.3	564	22.2	114	4.49	187	7.36	187	7.36	26.0	57.3	T6
LPFG12-100	12	90	85	74.5	49.1	508	20.0	110	4.33	238.5	9.39	238.5	9.39	32.3	71.2	T13
LPFG12-100H	12	96	90	79.2	52.2	394	15.51	110	4.33	285	11.22	285	11.22	35.0	77.2	T6
LPFG12-150	12	144	135	118.8	78.3	551	21.69	110	4.33	287	11.3	287	11.3	47.4	104.5	T6
LPFG12-180	12	158	150	132	87.0	550	21.65	126	4.96	280	11.02	280	11.02	52.0	115.0	T13
