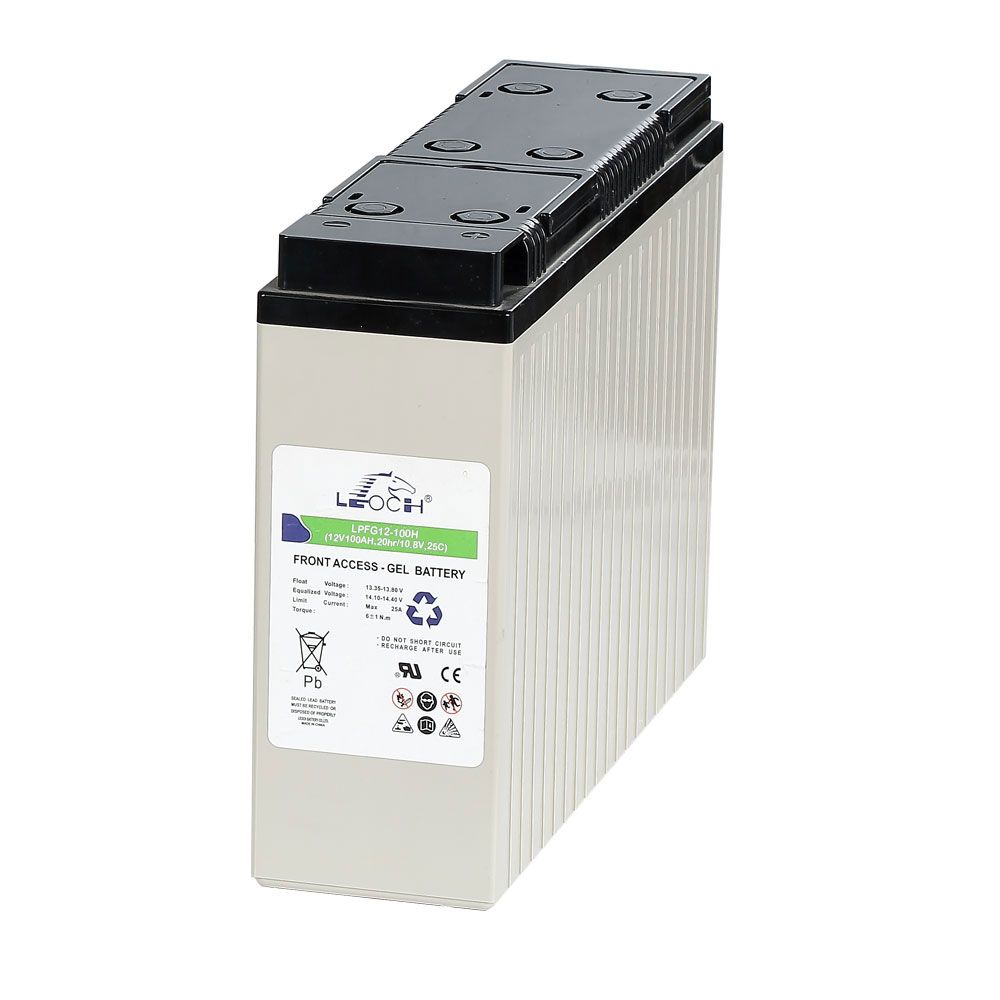

High Quality Rechargeable Front Terminal Gel Solar Battery

Name: High Quality Rechargeable Front Terminal Gel Solar Battery
Brand: all-electronics-online.com
SKU: 775606025
Availability: InStock
Rating: 5 (79 reviews)

Price:	US $ 10-150/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPFG12-100H
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
R20:	96ah
Dimension:	394 X 110 X 285mm
Weight:	77.2kg
Terminal Type:	T6
Usage:	Telecom, Emergency Backup Power Supply
Nominal Voltage:	12V
Discharge Rate:	High Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable
Type:	Gel
Electrolyte:	Gel

Product Description

General Features:
1. Specifically ideal for 19 inch or 23 inch power cabinets
2. Front terminals make the installation, maintenance and supervision easy
3. Shield designs protect terminals from short circuit and show good appearance
4. Unique vent valve design: reduce water losing and prevent air/spark going inside
5. Thick plates, special formula of paste and plate making process for a long service life
6. ABS material: increase the strength of battery container (Flame-retardant ABS is optional)
7. Long time discharge
8. Suitable for space and storage electric power use
9. Special plate design, long cycle lifetime
10. Using special lead-calcium alloy to boost up the grid anti-corrosive performance and extend the battery using lifetime
11. Using special separator to boost up the battery performance inside
12. High thermal capacity, reduce the risk of thermal out of control and drying hard, can be used in bad environment
13. High gas recombined reaction efficiency
14. Little water losing, no electrolyte stratification phenomenon
15. Long storage time
16. Good deep discharge resilience performance
17. Using gas silicon dioxide, small granule degree, bigger than surface area

Certifications: ISO14001 / ISO9001 / IEC / Tlc / UL / CE, etc.

Typical Applications:
For standard 19 inch or 23 inch power cabinets
Network connection equipment of communication system
Power system of special network or local area network
UPS, standby power supply
Power station systems
Marine systems

Specifications:

Model	Nominal Voltage (V)	Rated Capacity(AH)				Approx Dimension								Approx Weight		Terminal type
		20HR	10HR	5HR	1HR	Length		Width		Height		Total Height		Approx Weight
		1.80 V/cell	1.80 V/cell	1.75 V/cell	1.60 V/cell	mm	in.	mm	in.	mm	in.	mm	in.	kg	lbs
LPFG12-70	12	70	65.8	57.8	40.3	564	22.2	114	4.49	187	7.36	187	7.36	26.0	57.3	T6
LPFG12-100	12	90	85	74.5	49.1	508	20.0	110	4.33	238.5	9.39	238.5	9.39	32.3	71.2	T13
LPFG12-100H	12	96	90	79.2	52.2	394	15.51	110	4.33	285	11.22	285	11.22	35.0	77.2	T6
LPFG12-150	12	144	135	118.8	78.3	551	21.69	110	4.33	287	11.3	287	11.3	47.4	104.5	T6
LPFG12-180	12	158	150	132	87.0	550	21.65	126	4.96	280	11.02	280	11.02	52.0	115.0	T13

ANHUI UPLUS ENERGY TECHNOLOGY Co., Ltd is a technology-driven enterprise specializing in the research, development and manufacturer of automobile and commercial truck batteries. The UPLUS factory covers a site of 300, 000 square meters and is capable of producing 10 million batteries annually. The SLI batteries that it produces are used in a wide variety of cars, trucks, buses, marine and associated vehicles. Indeed, UPLUS is now the largest automotive battery manufacturer in China.

The UPLUS factory is equipped with the most sophistic production lines currently available, including Italian metal expending line, USA punching machine, Korean automatic enveloping, grouping and COS lines. Blending world class technology with the highest operator training standards, UPLUS batteries will be of the highest possible quality. UPLUS manufacturing will include, as part of its commitment to the technology leadership, the manufacture of the new micro-hybrid and start-stop AGM batteries. It is the first battery manufacturer in China to do so.

UPLUS is combining he finest in R&D with most advanced manufacturing; Under the most rigorous of quality control system, in striving for the lofty goal of zero defect. UPLUS is ISO19001, ISO/TS16949, ISO14000, OHSAS18001, IEC and CE certified.
