12V 24V 80W Constant Voltage LED Driver

Name: 12V 24V 80W Constant Voltage LED Driver
Brand: all-electronics-online.com
SKU: 797487825
Availability: InStock
Rating: 4.9 (76 reviews)

Price:	US $ 15-17.5/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DR-CV-80
Dimming Range:	5%-100%
IP Degree:	IP20
Efficiency:	85%
Protection:	Short Circuit/Over Load/Over Voltage
Weight:	503G
Dimensions:	1906529(mm)
Output Power:	80W Max
Warranty:	2years
Usage:	Light
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Mode:	Customed
Power Supply Voltage:	90-130V/AC&180-240V/AC
Brand:	No Brand

Product Description

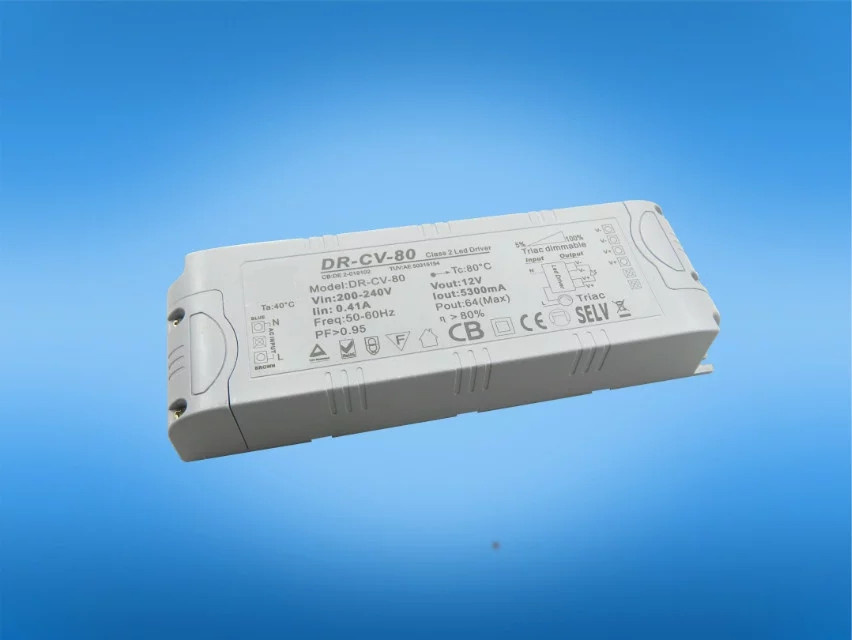

12V 24V 80W Constant Voltage LED Driver

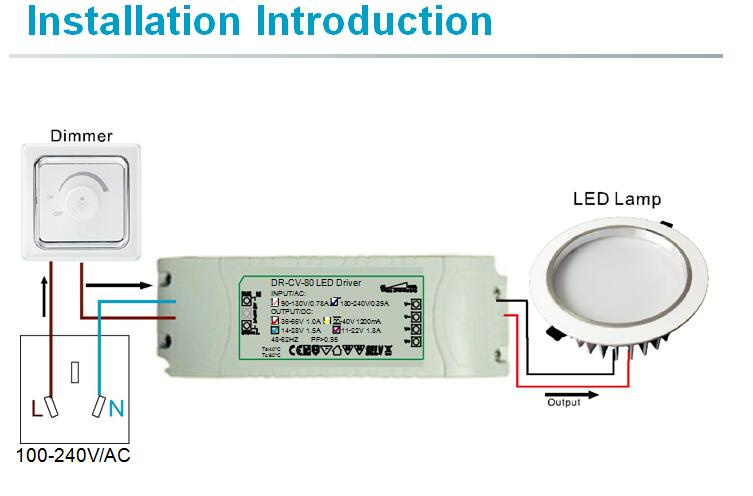

Triac Dimmable

Product Features

Selectable constant current and constant voltage output.(Custom on request)

Full-ioslated,delivering up to 80W of power.

Short circuit,over current and over voltage protection. Up to 80% efficient.

Fireproof environmental protection PC plastic cover 2 years quality warranty

Technical Specifications

Model No.		DR-CV-80
Input Voltage Range		90-130V/AC&180-240V/AC

AC Frequency		48-62Hz

Input current		0.78Amax

Output Mode		Constant Voltage
Output Current	5500mA	3300mA	1650mA

On Load Voltage	12V	24V	48V
On Load Range		70%-100%
Output Power		80W Max.
Power Factor		>0.95

Efficiency		>80%

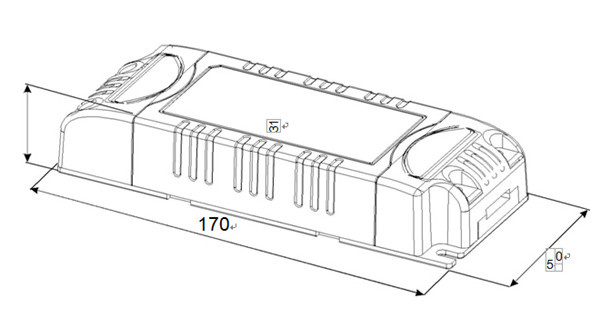

Dimensions		1906529(mm)

Weight		503g

Environmental Specifications

Operating Temperature	-30~45ºC
Storage Temperature	-40~+70ºC

Thermal Dissipation	Nature
Relative Humidity	5~95%

Isolation Voltage	In/Out 3000VAC
Vibration	5-55Hz/2g,30 Mimutes

Life Time	50000Hours,at TC max

Conformity & Standards

EMI	EN55022
EMI	EN55015 Class B
	EN55015 Class B

Safety	EN60598

Electromageric	EN61547,ENV5024
Immunity	EN61000-4-2/3/4/6/8/11

Harmonic	EN61000-3-2
Current Emissons	EN61000-3-3
