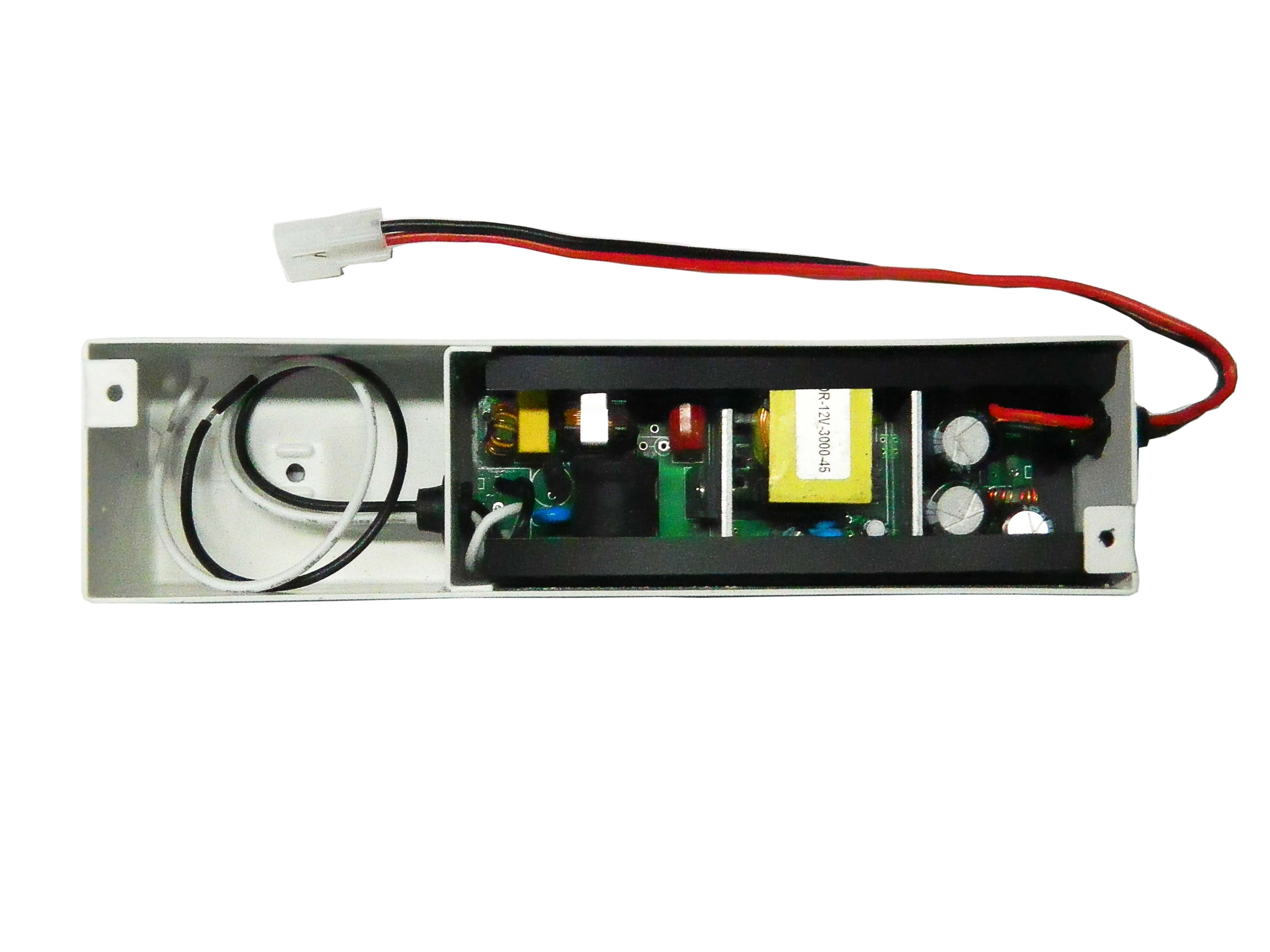

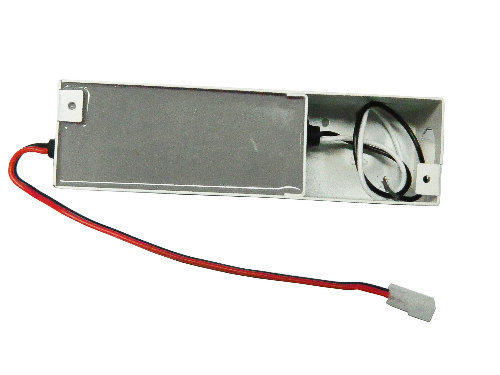

12V 24V ETL /UL Metal Junction Boxed Triac Dimmable LED Driver

Prod Model:	ETL-(12-100)W
Usage:	Light
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	Conventional Step-down Transformer
Certification:	SAA

Product Description

12V 24V ETL /UL metal junction boxed  triac dimmable led driver

This is our newest special design metal junction boxed led driver for North America.we can make it from 1-100W constant voltage and constant current,can use for led strip led liner light led panel downlight as other led lighting fixture

We have ETL ,UL for the safety with 5years warranty

Constant Voltage:

Model	ETL-80W(junction box led driver)
Input Voltage Range	90~130 or 180~240V/AC
AC Frequency	48-62Hz
Output mode	Constant Voltage
Output current	5500&3300&1650mA
On load voltage	( 12&24&48 )*0.5v
No load voltage	12&24&48 Vmax
Output power	66&79.2&79.2W max
Power factory	>0.95
Efficiency	82-86%
Dimension	262*66*35mm

We have 12w 20w 30w 40w 60w 80w 100w junction boxed led driver.

Features

1.Advanced patent MCU dimming technology
2.Suitable for leading edge or tailing edge dimmers
3.Short cicuirt and over current and over voltage protection
4.FLCKER FREE,NOISE FREE
5.NO LIMIT REQUIREMENT FOR LOAD WATTAGE,load 1-100%
6.Conveniently connected terminals(screws)
7.ETL metal box,dimming range 1-100%
8.5 years quality Warranty





Trade Terms

1. Payment: T/T, Western Union and paypal;
2. Production lead time :500PCS: about 10 workdays, 1000PCS: about 15 workdays;
3. Sample can be delivered within 3days;
4. Shipping freight are quoted under your requests;
5. Shipping port: Shenzhen, Mainland China;
6. Discounts are offered based on order quantities;
7. MOQ: 1 pcs.

Packaging & Shipping
1. Shipping freight are quoted under your requests;
2. Shipping port: Shenzhen, Mainland China;
3. Bubble bag ,inner box,and carton etc,
  Neutral Package, or customer color box package upon requirements.


Package Contents:
1*Transformator LED Driver
