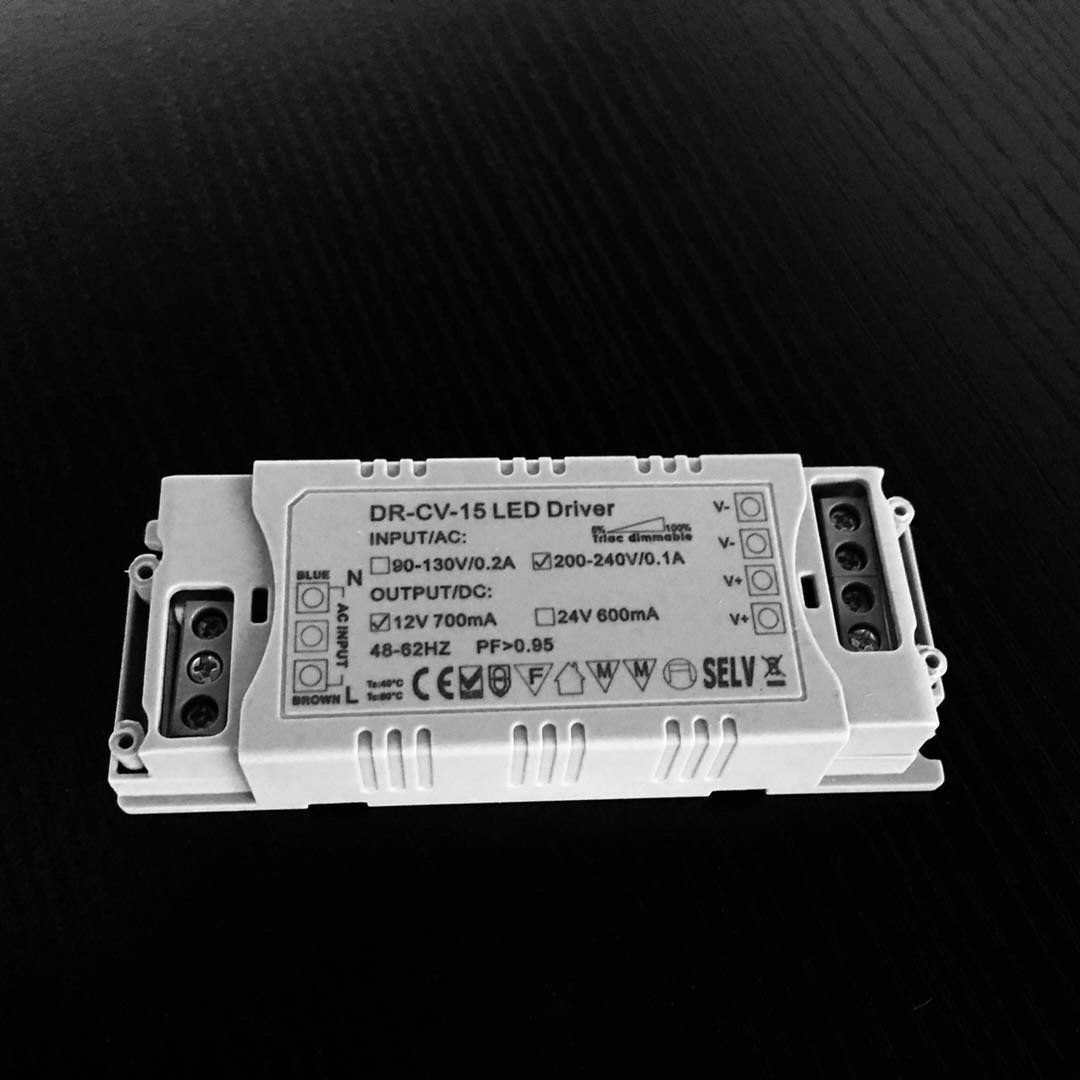

24V 700mA 15W Triac Dimmalbe LED Strip Light Driver with ETL/UL Certificates

Name: 24V 700mA 15W Triac Dimmalbe LED Strip Light Driver with ETL/UL Certificates
Brand: all-electronics-online.com
SKU: 835725335
Availability: InStock
Rating: 4.5 (120 reviews)

Price:	US $ 0.6-0.8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	triac-cv-12w
Item Name:	Triac Dimmalbe LED Strip Light Driver
Material:	Iron Box
Dimming:	Dali Triac or 0-10V Available
Usage:	Light
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	Electronic Step-down Transformer
Certification:	ETL SAA

Product Description

Constant current or Constant Voltage

triac Dimmable/0-10V Dimmable/DALI Dimmable/Non-Dimmable

Model	Ingput Voltage (V/AC)	Output Power (W)	Output Current (mA)±5%	Load voltage (V/DC)	Open circuit voltage (Vmax)	PF	Efficiency	Dielectric strength (KVAC/1min)	Size (mm)
Triac-12W	110&230	12	250	23-46	50	>0.95	80-86%	3750	*943618*
			350	17-34	40
			500	12-24	30
			620	9-18	22

Constant Voltage
Input Voltage(V/AC):110V
Input Power(W):12W
Output Voltage(V/DC):12/24
Output Current(mA):1000/500
PF:>0.95
Efficiency((%):>82%
Dielectric Strength(V/AC):3000
Thermal Dissipation:Nature
Relative Humidity:5~95%
Isolation Voltage:In/Out 3000VAC
Vibration:5-55hZ/2G,30Minutes
Life time:50000H,AT tc max

FAQ
----- IC
We use Silergy, NSC and Fairchild

-----capacitor
We use Rubycon, berly,

---- Transformer
All of our coils are use pure copper wire

---- PCB board
Double glass fiber board (FR-4) has good heat dissipation effect

------High efficiency,save energy ,protected environment

• High stability and low ripple, increase light efficiency and decrease light attention
• Meet to safety standard and EMC
• Assure LED stability long lift and light efficiency by constant current
• Passed high ,low temperature testing.
• Integrity protection,over loading, over voltage ,over current
• 8Hrs and 100% full load burn-in test.

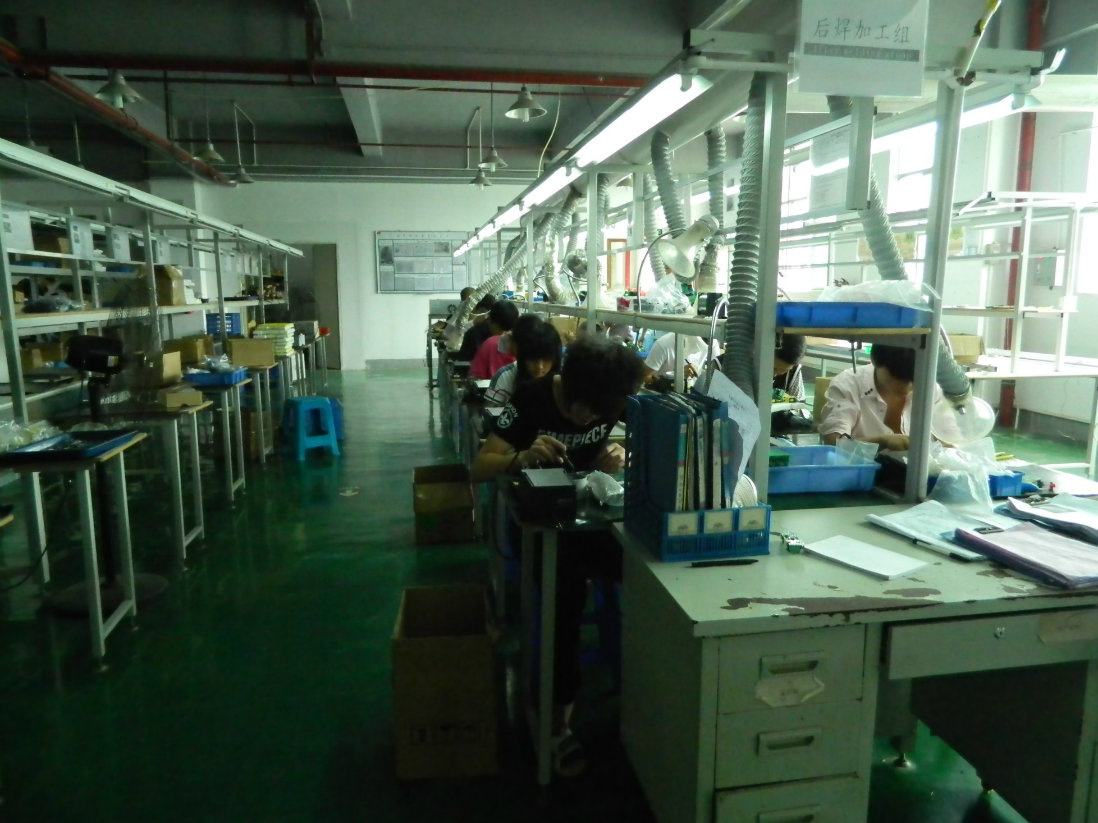

SUNRED LED Co., Limited!

We are LED driver manufacturer and LED car lighting trader located in Shenzhen, China

Which established in 2017.

Our main products are

0-10V/PWM dimmable drivers.

TRIAC dimmable LED driver,

DALI dimmable LED driver

IP67 Waterproof LED power supply

Low voltage LED transformer

LED car lighting

We have many good partners and suppliers, all of our products are with certificates,

CE EMC LVD TUV for Europ and SAA for Australia, For America market we have ETL UL certificates.

Also we can offer you good price, acceptable lead time and excellent after sale service.

Sunred LED, this young and flexible company will keep the innovation and honest in heart. To built a long good and mutual business relationship with you. Always fighting to prop the hope of green and lighten the future of the world.
