12V 75W Single Output AC to DC Switch Power Supply

Name: 12V 75W Single Output AC to DC Switch Power Supply
Brand: all-electronics-online.com
SKU: 818290885
Availability: InStock
Rating: 5 (90 reviews)

Price:	US $ 5.25/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-75-12
Usage:	Construction
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Brand:	Kampa

Product Description

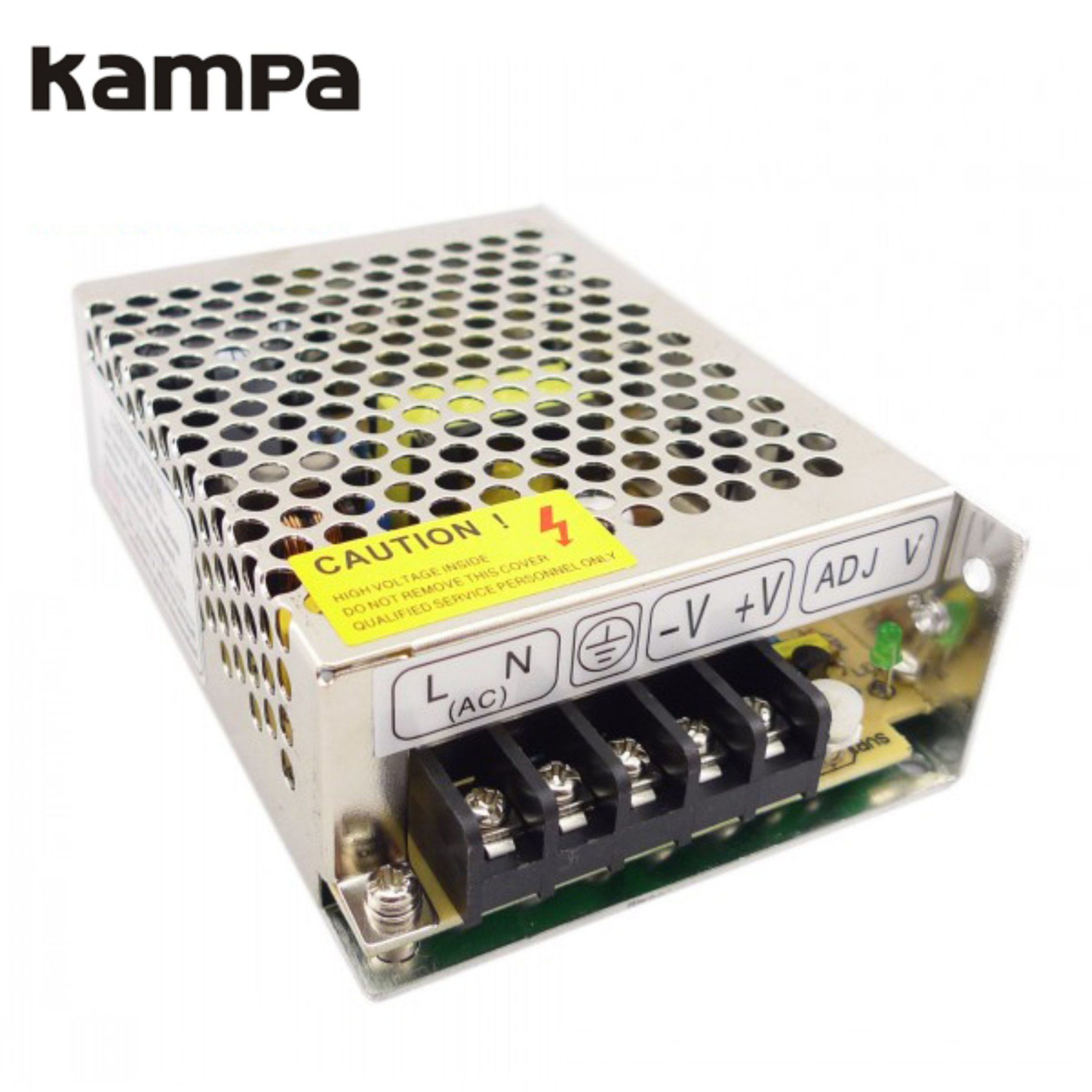

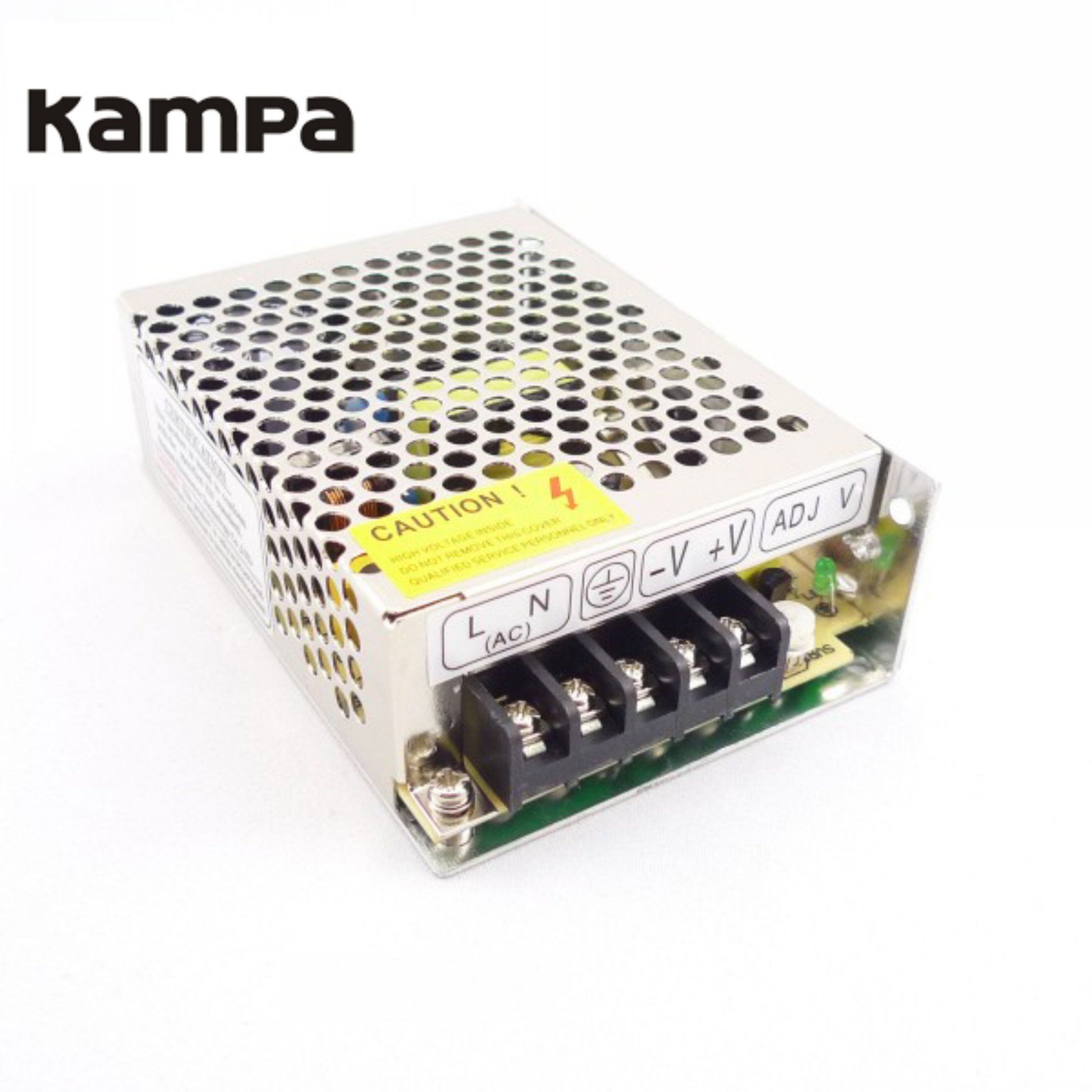

12V 75W single output AC to DC switch power supply

1.Technical Data

Model Specification	S-75-5	S-75-12	S-75-15	S-75-24
DC output	5V 15A	12V 6.3A	15V 5A	24V 3.2A
Wave and noise	50mVp-p	50mVp-p	50mVp-p	75mVp-p
Inlet stability	±1%	±0.5%	±0.5%	±0.5%
Load stability	±1%	±0.5%	±0.5%	±0.5%
Adjustable range for DC voltage	±10%	±10%	±10%	±10%
AC Inrush current	Cold-start current 40A/230V
OverLoad protection	105% 150% hiccup mode, auto-recovery
Over-voltage protection	115% 135% ratedoutput voltage
Setup, rise, hold up time	300ms, 50ms, 80ms
Withstand voltage	I/P-O/P:1.5KvAC, I/P-FG:1.5KvAC, O/P-FG:0.5Kv
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG:500VDC/100M
Safety standards	Design refer to GB4943, UL60950, EN60950
EMC standards	Design refer to GB9254, EN55022 classB

Dimension &Weight:

Product size: 159*97*38mm Unit Weight: 0.5kgs
Packing details: 30pcs/ctn/16kgs/0.97CUFT

Packaging & Shipping

Company Information

Yueqing Kampa Electric Co.,Ltd. is Established in 2009.Has variety of goods ,such as Relay,Circuit breaker,Switches,Thermocouple,Thermostat,Temperature controller,Switch power supply,AVS,Heat sink,Heater,Distribution box,Junction box and so on.We are manufacturer and have ten years experience in Electrical industry.

Our Exibition

Our Services

A.Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.
B.After sales service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.

Kama Electric Co., Ltd.

Established in 2009, Occupies 12000m2.

Our company is the electric and electronic expert. And we can offer more than 600kinds of distributing and controlling system products.

Established in 2009, Occupies 12000m2.

Our company is the electric and electronic expert. And we can offer more than 600kinds of distributing and controlling system products.

As Kampa have more than 15 share-holding factories for relays, thermostat, heater, automatic voltage switch, temperature controller, push button, cable ties, cable gland, solar connector, use, circuit breaker, distribution box, High voltage transformer, vacuum circuit breaker, etc...

Meanwhile, Most of our goods have gained CE, UL, CCC, BV, SA, CB and SEMKO approval. And we can also offer OEM and ODM service because of our professional teams.

Especially speaking, Kampa CREAT Nonarc Electric Co., Ltd. In 2010.

It is specialized in producing Circuit breaker and Distribution box. It has ISO9001, 5S system and advantage technology equipment.

Welcome to visit us for cooperation!

Kampa - will create a magnificent tomorrow together with you!
