13-65 Ways 1cab Metal Case 1-5 Row Distribution Box

Name: 13-65 Ways 1cab Metal Case 1-5 Row Distribution Box
Brand: all-electronics-online.com
SKU: 807531565
Availability: InStock
Rating: 4.6 (150 reviews)

Price:	US $ 13.34-14.55/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	1CAB
Standard:	IEC60947-3
Packing Type:	Carton
Material:	Steel Sheet and Copper Fittings
Protection:	Epoxy Polyester Coating
Type:	Distribution Metering Box
Structure:	Protection
Certification:	Ce
Shell Protection Grade:	IP66
Brand:	Chana

Product Description

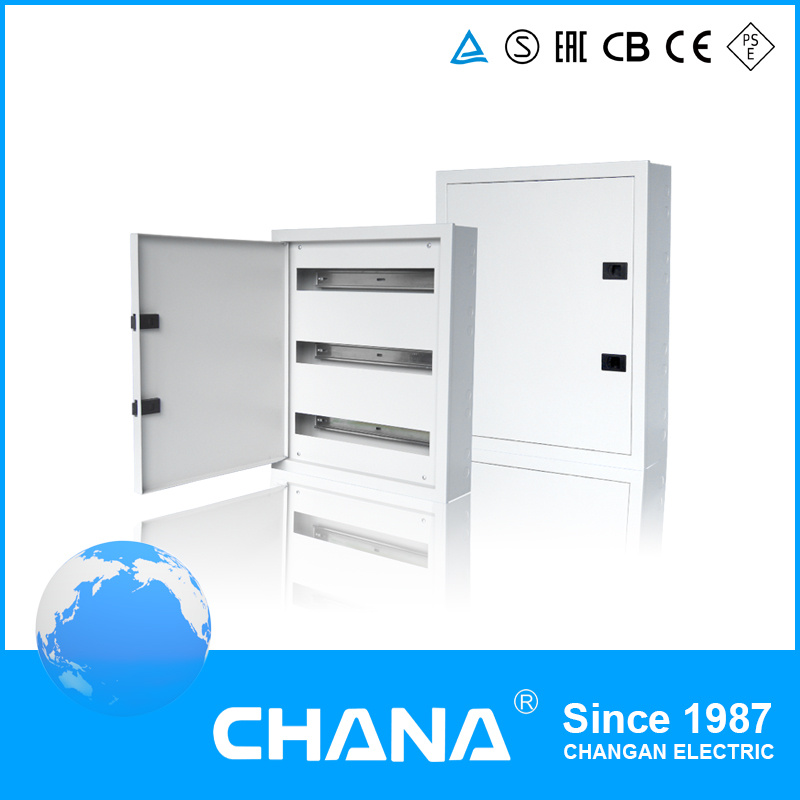

1CAB Series Distribution Box

1. Description

1CAB series distribution box is designed for safe, reliable distribution and control of electrical power as service entrance equipment in residential, commercial and light industrial installation.
Steel sheet and copper fitting inside
Protected with epoxy polyester coating
Color: RAL7032 or RAL7035
Standard: IEC 60947-3

2. Specification

Model	Row	Way No.	Dimension (mm)					Terminal configuration
Model	Row	Way No.	H	W	D	H1	W1	N	E
1CAB113	1	13	292	402	110	192	340	13*1	8*1
1CAB226	2	26	442	402	110	342	340	13*2	8*1
1CAB339	3	39	592	402	110	492	340	13*3	8*2
1CAB452	4	52	742	402	110	642	340	13*4	8*3
1CAB565	5	65	892	402	110	792	340	13*5	8*4

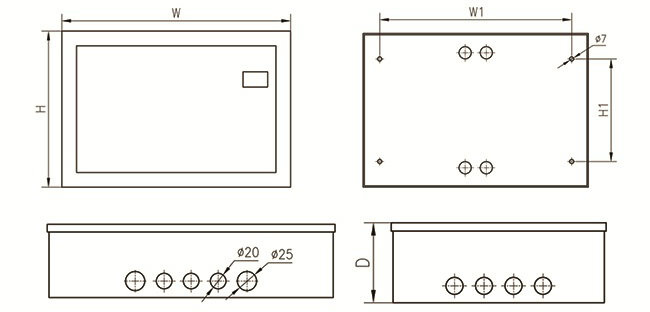

3. Overall and Installation Dimension

4. Feature Product

5. FAQ

Q 1. What's the payment term?
A. We accept tt,30% deposit and 70% balance agaisnt the copy of b/l.

Q 2. How's the delivery time?
A. Usually it will take about 25 days for production.

Q 3. Tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.

Q 4. Could you offer form a? or c/o?
A. It's totally not a? problem. We can prepare relative documents to foreign affairs office or other office??to apply for this certificate.

Q 5. Would you accept to use our logo?
A. If you have good quantity, it absolute no problem to do oem.

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
