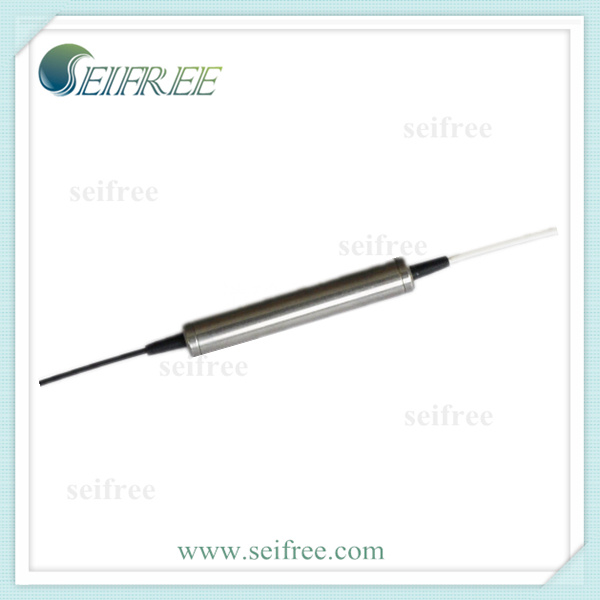

1310nm Single Stage Fiber Optic Isolator (Faraday Rotator)

Name: 1310nm Single Stage Fiber Optic Isolator (Faraday Rotator)
Brand: all-electronics-online.com
SKU: 788482275
Availability: InStock
Rating: 4.6 (114 reviews)

Price:	US $ 11-12/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SISO-S1-31-P-09-10-A5-0
Fiber Type:	Single Mode
Wavelength:	1310nm
Stage:	Single Stage
Grade:	Premium
Pigtail Diameter:	0.9mm
Application 1:	Fiber Optic Amplifiers
Application 2:	CATV
Application 3:	FTTH
Application 4:	OTDR
Application 5:	Fbg
Application:	Probe
Type:	Single-mode Fiber
Connection Structure:	FC
Certification:	ISO9001

Product Description

Description
Single mode optical isolator made use of magnetic light crystals of Faraday Effect. The optical components allow the light to transit only one direction. The devices are designed and manufactured to meet Telcordia GR-1209-CORE requirements and RoHS compliant.

Applications Features
Optical Amplifiers                                                                           Low Excess Loss
WDM System Wide Pass Band
Test Equipment High Reliability

Ordering Information
SISO -       -       -       -       -       -       -

Stage	Wavelength	Grade	Pigtail Dia.	Pigtail Length	Package	Connector Type
S1=Single Stage	31=1310nm	P= Premium	02=0.25mm	05=50cm	A6	FU(A)=FC/UPC(APC)
S2=Dual Stage	55=1550nm	A= A Grade	09=0.9mm	10=100cm	B1	SU(A)=SC/UPC(APC)
/				15=150cm	C1
						LU(A)=LC/UPC(APC)
			X=Customization

Package and Mounting Dimension (mm)

Stainless Steel Tube (A)

Plastic Box (B)

Aluminum alloy Box (C)

Aluminum alloy Rack (D)

Outline

Mounting

Outline

Mounting

Outline

A1=Φ3x50

A5=Φ5.5x34

B1=90x20x9.5

50x12x2Φ3.2

C1=85x18x8.4

44.5x13x2Φ3

D1=129x29x160(LGX)

A2=Φ3x54

A6=Φ5.5x38

B2=100x80x10

70x73.5x4Φ3.2

C2=90x72x8

86x68x4Φ3

D2=129x58x160(LGX)

A3=Φ3x60

A7=Φ5.5x50

B3=120x80x18

80x74.5x4Φ3.2

C3=110x95x7.5

99x84x4Φ3.5

D3=485x43.5x230(19' Rack)

A4=Φ5x70

A8=Φ5.5x64

B4=141x115x18

100x106x4Φ3.2

C4=110x95x15

99x84x4Φ3.5

D4=485x87x230(19' Rack)

Item

φ0.25 Stainless

φ0.9 Stainless

φ2/3 Stainless

φ0.9(φ2,φ3) Plastic

φ0.9(φ2/φ3) Aluminum Alloy

LGX

19' Rack

1X1

Specification

Parameter	Unit	Value
Grade	/	Premium		A
Stage		Single	Dual	Single	Dual
Wavelength	nm	1310±15, 1550±15
Isolation (@23ºC Over Band)	dB	>30	>46	>30	>46
Insertion Loss	nm	<0.4	<0.6	<0.6	<0.8
PDL	dB	<0.1		<0.15
PMD	ps	<0.05	<0.1	<0.05	<0.1
Insertion Loss Temperature Sensitivity	dB/ºC	<0.005
Wavelength Temperature Shifting	nm/ºC	<0.002
Return Loss	dB	>60			>55
Fiber Type	/	SMF-28e
Pigtail Dia.	mm	0.25 /0.9
Pigtail Length	cm	>50
Operating Tem.	ºC	-5~ +70
Storage Tem.	ºC	-40~ +85
