136W 48V Fanless Lithium Battery Charger with Full Range AC Input

Name: 136W 48V Fanless Lithium Battery Charger with Full Range AC Input
Brand: all-electronics-online.com
SKU: 801624705
Availability: InStock
Rating: 4.6 (82 reviews)

Price:	US $ 9.5-11.5/Piece
Min Order:	500/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD136-15CH23
Output Power:	136W
Color:	Black
Warranty:	2 Year
Type:	Lithium Ion Battery Charger
Charging Type:	Electric Charger
Principle:	PWM

Product Description

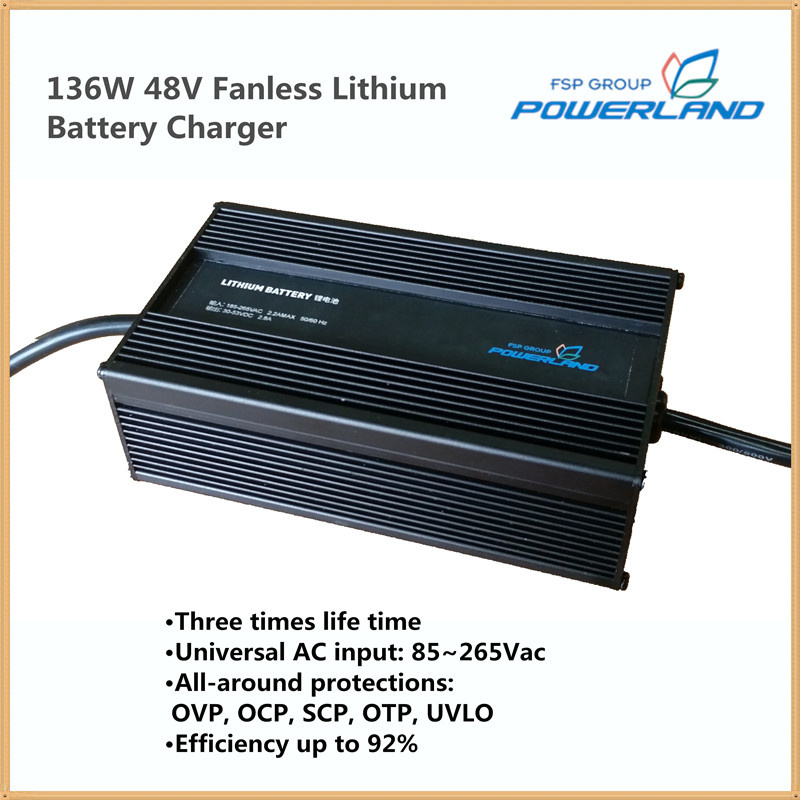

136W 48V Fanless Lithium Battery Charger with Full Range AC Input

Powerland's Lithium batteries chargers are designed with ultra-high power conversion efficiency,as well as full metal case enclosure.The outstanding performance of low power disspation and water proof provides the chargers high reliablility and super long life time.This series of chargers have been successfully installed in different kinds of electric vehicles,such as E-scooters,E-bikes,E-motorcycles,E-boat,E-forklifts,E-airport tugs,etc.

Features
Three times life time
Fully enclosed design with IP65
High Reliability
Output power: 136W
Low temperature start up: -20^oC
High temperature full load operation: 60^oC
Universal AC input: 85~265Vac
Efficiency up to 92%
Output voltage: 48V battery bank
All-around protections: OVP, OCP, SCP, OTP, UVLO

Model Specifications

Model Number	Output Current	Output Current Range	Output Voltage Range
PLD136-15CH23	2.5A	95%Io~105%Io	30~54.2V

Specifications

Model	PLD136-15CH23
Output Voltage	30V~54.2V
Max. Output Voltage (Float Charging)	54.2V
Current Accuracy	±5%
Voltage Accuracy	±2%
Output Power	136w
Input Voltage Range	85~265 Vac
Input Frequency Range	47-63Hz
Input Current(MAX)	1.8A@230Vac
Max. Input Power	136W
Power Factor	NC
Efficiency	90% @ 230Vac
Leakage Current	0.70mA max. @ 240Vac / 50Hz
THD	NC
Protections	OVP, OTP , SCP, Open Circuit Protection
Environmental Protection Rating	IP5
Working Temp	-20ºC~+60ºC
Cooling	Free Air Cooling
Max Case Temp. (o C)	<55ºC @ 25ºC
Electromagnetic Compliance	NC
Surge Protection	1kV/2kV
Isolation Test	Primary to Secondary: 3000Vac / 10mAMax / 60seconds Primary to Earth: 1500Vac 10mA max./60 seconds Secondary to Earth: 500Vac 10mA max./60 seconds
Dimension	146X70X39mm (LxWxH)
Weight	1.135Kg,2.502lb
Life Time	15,000 hours at 25 oC, 230Vac input, and full load output.
