144f Sm Armored GYTA Fiber Optical Cable
| Price: |
US $ 2/Meter |
| Trade Terms: |
FOB,EXW |
| Min Order: |
3000/Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
GYTA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outer Sheath Color: |
Black |
| Outer Sheath Material: |
PE |
| Metallic Strengthen Member: |
Steel Wire |
| Filler: |
Filling Compound |
| Single Armour Material: |
Corrugated Aluminium Tape |
| Fiber Count: |
2-288 Core |
| Brand Name Of Fiber: |
Corning ,Yofc,Draka,Fujikura or as Your Requiremen |
| Waterblocking Material: |
Water Blocking Tape or Filling Compound |
| Installation Style: |
Duct, Aerial |
| Loose Tube Material: |
PBT with Jerry |
| Application: |
Communication |
| Type: |
Multi-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
ISO9001 |
| Sheath Material: |
PE |
Product Description
PBT loose tube GYTA 24 core single mode fiber optic cable
Product Description

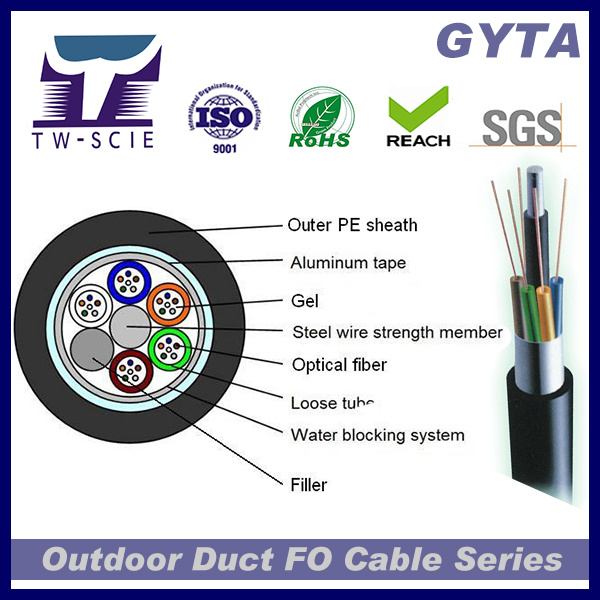

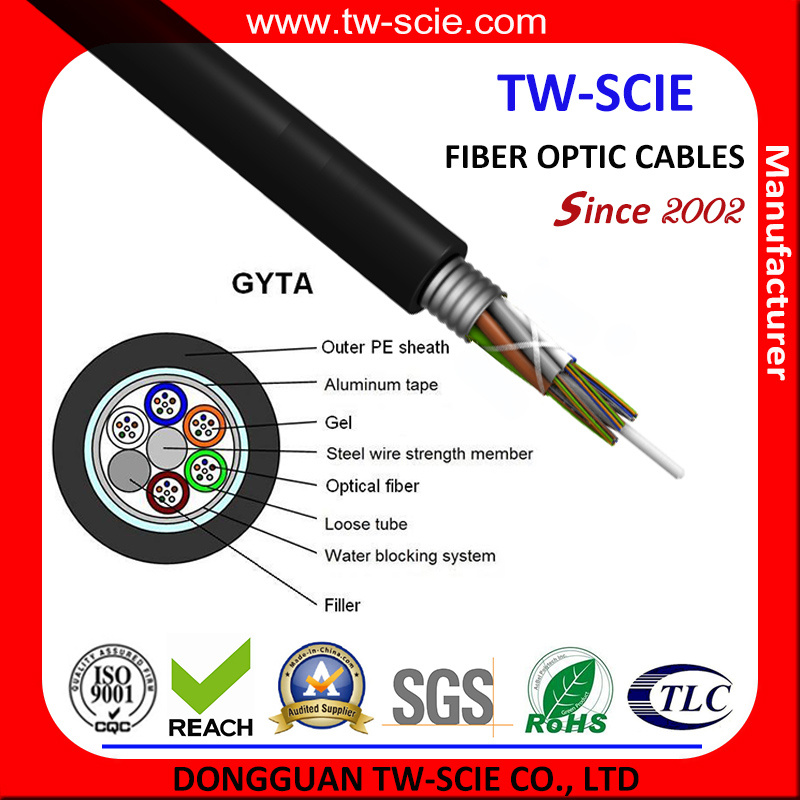

The 24 core fiber optic cable GYTA, 250μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath.
Specification
Cable Type | GYTA-24 |
| Fiber Count | 24 |
| Tubes | 4 |
| Fillers | 1 |
Cable Diameter(mm) | 9.5 |
| Cable Weight (kg/km) | 80 |
Tensile Strength (Long/Short Term N) | 600/1500 |
Crush Resistance (Long/Short Term N/100mm) | 300/1000 |
Bending Radius (Static/Dynamic mm) | 10D/20D |
Characterisics
1.Steel wire strength.filler protect tube fiber.Aluminum tape armord.
2.Good ultra violet radiation resistant property.
3.Good moisture-resistance.
NOTE
1. Only a part of cables are listed in the table. Cables with other spans can be inquired.
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Specially designed Cable structure is available on request.
Packaging & Shipping
1. Standard Packaging:
Rolled by wooden wooden drums. 2000m to 6000m/drum or other required.
2. Sheath mark
The following printing(white hot foil indentatioin)is applied at 1-meter intervals.
a. Supplier: KSD or as cuctomer required
b. Standard Code(Product Type, Fiber Type, Fiber Count)
c. Year of manufacture: xxx
d. Length marking in meters
FAQ
1. Shipping: Generallyby sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc
2. Payment: We accept T/T, L/C and Western Union, just choose what you like
3. Delivery time: Generally 3~7 working days upon receipt deposit. According to the quantity.
4. MOQ: Generally our MOQ is 1000meters. samples below 1meter can be provided freely
Quote Request Information
1. Fiber Count: 2 to 144 Fibers
2. Span length: 50meter to 800meters is available
3. Fiber type: Various kind of Single mode or multi mode is available
4. Line Voltage: 10kV, 35kV, 110kV or 220kV
5. Order Quantity
DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication
Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.
The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.
The main products of our enterprise are:
Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.
All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
