1500W DC 12V/24V to AC 110V/220V/240V Modified Sinve Wave Inverter with UPS Charger with LCD Display

Name: 1500W DC 12V/24V to AC 110V/220V/240V Modified Sinve Wave Inverter with UPS Charger with LCD Display
Brand: all-electronics-online.com
SKU: 783473045
Availability: InStock
Rating: 4.4 (108 reviews)

Price:	US $ 117/Piece
Trade Terms:	FOB,EXW
Min Order:	100/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WSP-1500W+UPS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	31515255mm
Phase:	Single
Type:	DC/AC Inverters
Power Source:	Electric Power
Output Power:	>1000W
Brand:	OEM

Product Description

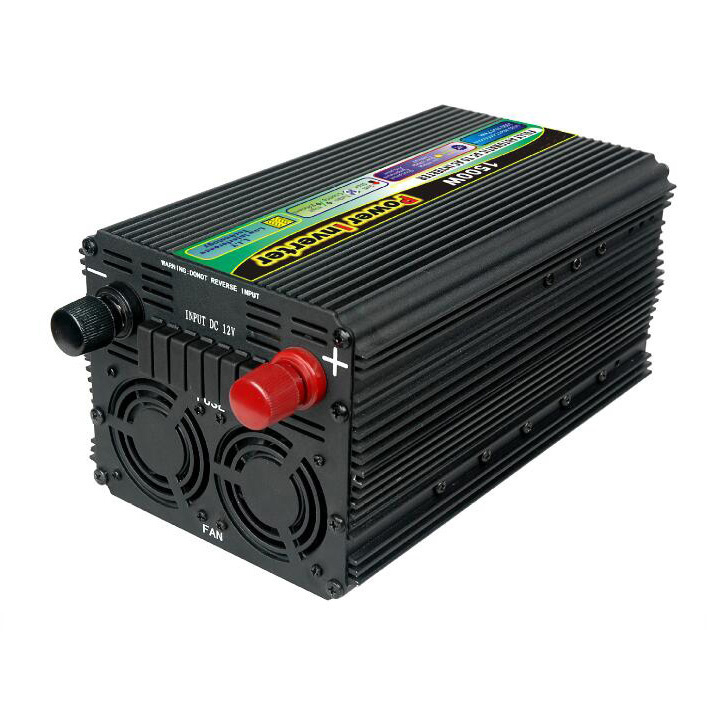

1500W DC 12V/24V TO AC 110V/220V/240V Modified sinve wave inverter With UPS Charger with LCD display

1500W continuous power inverter 3000 watt peak.
Over temperature protection
Low battery alarm
Over voltage protection
Overload protection
Low battery shut down
UPS and battery charger

1. / Output continuous power	1500W
2. / Output peak power	3000W
3.DC / Input DC voltage	12V			24V
4. / Working voltage	11-15V			21-29V
5. / Low-voltage protection	9 -10.5V			18.5-20.5V
6. / Lack-voltage alarm	9.5 -11V			19.5 -21V
7. / Over-voltage protection	≥15V			≥29V
8. / Fuse	30A X 7			15A X 7
10. / Non-load current	≤0.5A			≤0.5A
11. / Convert efficiency	≥90%
12. / Overload protection	1500W- 1800W
13. / Short circuit protection	Have
14. / Work temperature	-10ºC -- +50ºC
15. / Temperature protection	+60ºC -- +70ºC
16. / Output wave	/ Modified sine wave
17.AC / AC Output voltage	110V	117V	220V		240V
18. / Output frequency	60Hz	60Hz	50Hz		50Hz

AC / AC input voltage	110V	220V
AC / AC input frequency	50HZ/60HZ	50HZ/60HZ
AC / AC working voltage	85V-130V	170V-250V
AC / AC input low voltage protection	≤75V	≤150V
AC / AC input high voltage protection	≥130V	≥250V
AC / AC input Fuse	15A	10A
/ Charge current	Maximal 10A
/ Charge voltage	14.5V-16V	29V-32V
/ DC to AC inverting household electricity supply time	≤10ms
/ household electricity supply inverting DC to AC time	≤10ms
/ DC to AC inverting household electricity supply requirement	AC / AC input voltage under normal working scope
/ household electricity supply inverting DC to AC requirement	,AC,AC / Not household electricity supply, AC input low voltage protection, AC input high voltage protection.

Packing:
1, Packing                         Paper Box
2, PCS/CTN                           4PCS
3, Measurement                   315*152*55mm
4, Carton dimension         350*350*220mm
5, Unit weight                    2.73kg ± 0.15kg
6, Net weight (N.W)                  10.9kg
7, Gross weight (G.W)                11.6kg
