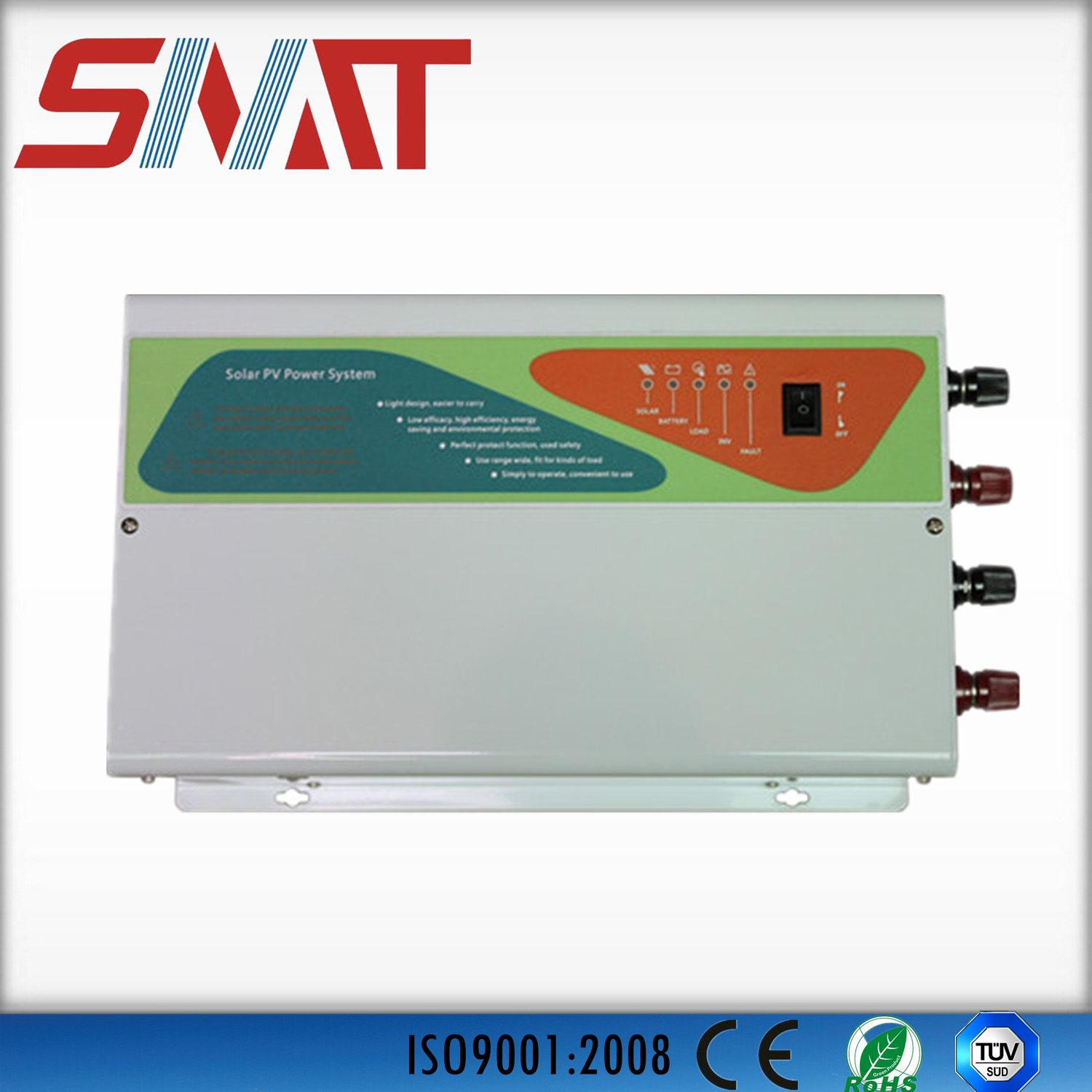

1500W High Frequency off Grid Inverter with MPPT Controller Built-in for Power Supply
| Price: |
US $ 188/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
SNIC-H150 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Controller Capacity: |
24V/50A |
| OEM/ODM: |
Service |
| Type: |
DC/AC Inverters |
| Power Source: |
Solar Power |
| Output Power: |
1500W |
| Application: |
Daily Use |
| Brand: |
Snat |
Product Description
Introduction:

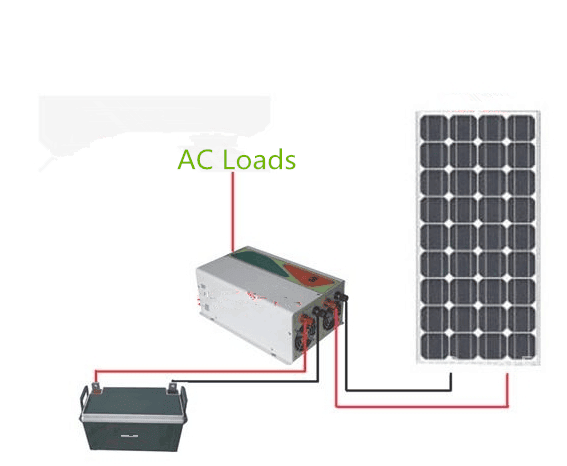

This series product of pure sine wave inverters with charge controller is designed for off-grid power supply system, uses the fully digital design concept, the real pure sine wave output, can adapt to various types of loads, low-power consumption, high-efficiency, single on/off operating, output voltage and frequency is very stable
Built-in using dedicated solar controller of MCU intelligent control technology, realize the battery charge and discharge management, prolong the service lifespan of battery,.
Widely be used in family, schools, streets, industrial and mining, frontier defenses, islands, pastoral areas such as power supply system
Characteristics:- Microcomputer (MCU) intelligent control technology, performance excellence;
- Pure sine wave AC output, strong ability to adapt to the load;
- LED display mode, equipment running status be clear at a glance
- Output overload, short circuit protection, all kinds of automatic protection and alarm
- Low power consumption, high efficiency, high utilization rate of system
- Intelligent battery management, overcharge protection, prolong the service life of the battery
- Miniaturization design, save precious space
Technology parameter| Model: | SNIC-H150 |
| Rated power(W) | 1500w |
| DC voltage(VDC) | 24Vdc |
| Solar input | Rated power(W) | 1500w |
| Rated voltage(VDC) | <25/<50 |
Inverter
output | Output voltage | 220VAC±5% |
| Output frequency | 50Hz/60Hz±0.5% |
| Output waveform | Pure sine wave |
| effiency | > 87% (80% impedance load) |
| No-load loss | <8W |
| Inverter output protection | DC over-voltage/under-voltage protection, overload, short circuit protection, etc |
| Fan | Temperature control switch control |
| Others | Noise | < 45dB |
| Run environment temperature | 0-40ºC |
| storage environment temperature | -15 - +50ºC |
| Run/storage environment relative humidity | 0-90% No condensation |
| Runtime environment at high altitude | 0-3,000meters |
| Storage environment at high altitude | 0-5,000meters |
| Dimensions(D*W*H)mm | 360*196*78mm |
| Packaging size(mm) | 420*220*14mm |
| N.W./G.W.(kg) | 4.2kg/4.9kg |
Range of application
---Office equipments: such as Computer, Fax machine, Printer, Scanner etc;
---Household: such as Game machine, DVD, Vidicon, Fan, Lamp etc.
---Charging battery: such as Phone, Electric razor, Digital camera, any other else
Feature:- High transfer efficiency and fast start
- High safe performance: with the function of short circuit, overload, overvoltage, undervoltage, overtemperature
- Iron box shell, can resist on certain external force extrusion or touch attack
- Pure sine wave, can be adapted to inductive load with strong stability
- High efficiency, small volume, light weight, easy installation
- Apply to Solar power system, Wind energy, Emergency power supply
Special sockets for different requirements
Warranty:
Quality warranty for 1 year, including all relative products purchased from our company; parts will be shipped free during warranty period.
Delivery time:
Stick to contract
Any requirements, welcome to contact with Sabrina Liu:Click Trade messenger; Tel: +86 757 81816131; Mobile: +86 18039293535.,
You will get our reply in 12 hours
A Professional Manufacturer Specialized in field of Solar power system
Foshan SNAT Energy Electrical Technology Co. Ltd is a professional manufacturer specialized in the field of solar inverters, solar inverters with controllers built-in, solar controllers, UPS which are used for household, telecom, electricity, infrastructure and industrial markets.
At the same time, our company is concurrently engaged in solar panels, batteries for solar power system. All products purchased by our company have our wanrranty commitment, parts will be shipped for free during wanrranty period.
