150W 36V 3.5A Lithium Battery Charger

Name: 150W 36V 3.5A Lithium Battery Charger
Brand: all-electronics-online.com
SKU: 817972745
Availability: InStock
Rating: 4.4 (87 reviews)

Price:	US $ 15.54-15.64/Piece
Min Order:	500/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD150-EVCS04-42
Output Power:	150W
Color:	Black
Warranty:	2 Year
Type:	Lithium Ion Battery Charger
Charging Type:	Electric Charger
Principle:	PWM

Product Description

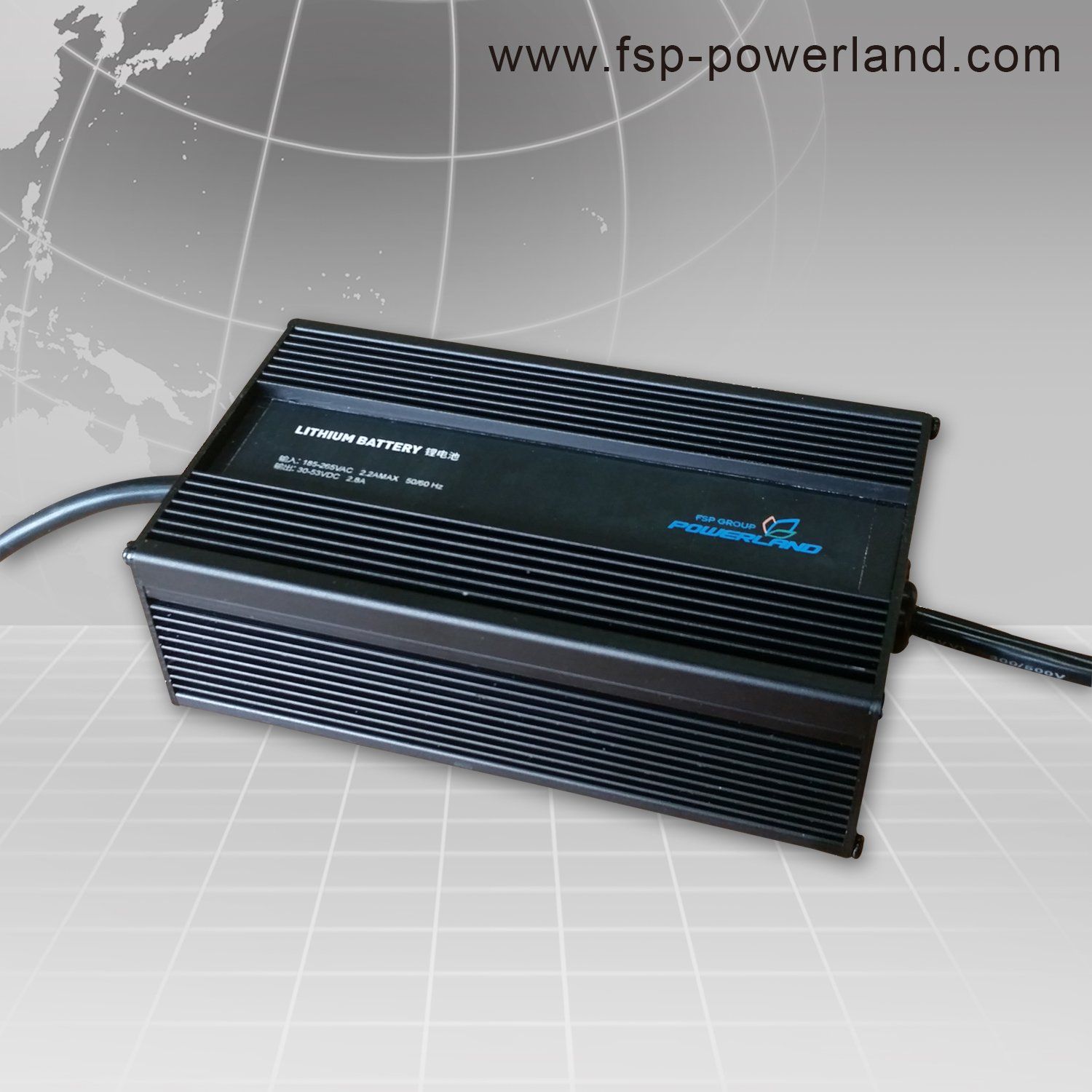

150W 36V 3.5A Lithium Battery Charger

Powerland's 36V Lithium battery chargers are designed with ultra-high efficiency, as well as full metal case enclosure. The extraordinary performances of low power dissipation and water proof provide the chargers high reliability and super long life time. This series of chargers offer solid power conversions for applications such as e-vehicles, e-bikes, e-motorcycles, e-boat, e-machines, etc.

Features
Universal AC Input :185~265 Vac
Output Power:150W
High ReliabilityEfficiency Up to 93%
All-around Protections:OVP,OCP,SCP,OTP
Low Temperature Start Up -20 ºC
High Temperature Full Load Operation:50ºC
Three Times Life Time
2 Year Warranty

Model Specifications

Model Number	Output Power	Output Voltage	Output Current	Output Current Range
PLD150-EVCS04-42	150W	25~42V	3.5A	95~105%Io

Specifications

Model	PLD150-EVCS04-42
Output Voltage	25V~42V
Output Current	3.5A
Max. Output Voltage (Float Charging)	42V
Output Voltage @ Open Circuit	42V
Current Accuracy	±5%
Voltage Accuracy	±0.5%
Output Power	150W
Input Voltage Range	185~265Vac
Input Frequency Range	47-63Hz
Input Current(MAX)	2A@230Vac
Max. Input Power	175W
Efficiency	91%@230Vac
Protections	OVP, OTP , SCP, Open Circuit Protection
Environmental Protection Rating	IP65
Working Temp	-20ºC~+50ºC
Cooling	Free Air Cooling
Max Case Temp. (o C)	<55ºC@25ºC Ambient Temperature
Surge Protection	1kV DM, 2kV CM
Isolation Test	Primary to Secondary: 3000Vac/10mA max./60s Primary to Earth: 1500Vac/10mA max./60s Secondary to Earth: 500Vac/10mA max./60
Dimension	146x84x48mm (LxWxH)
Weight	1.14kg
Life Time	30,000 hours at 25ºC, 230Vac Input, and Continuous Full Load Output
