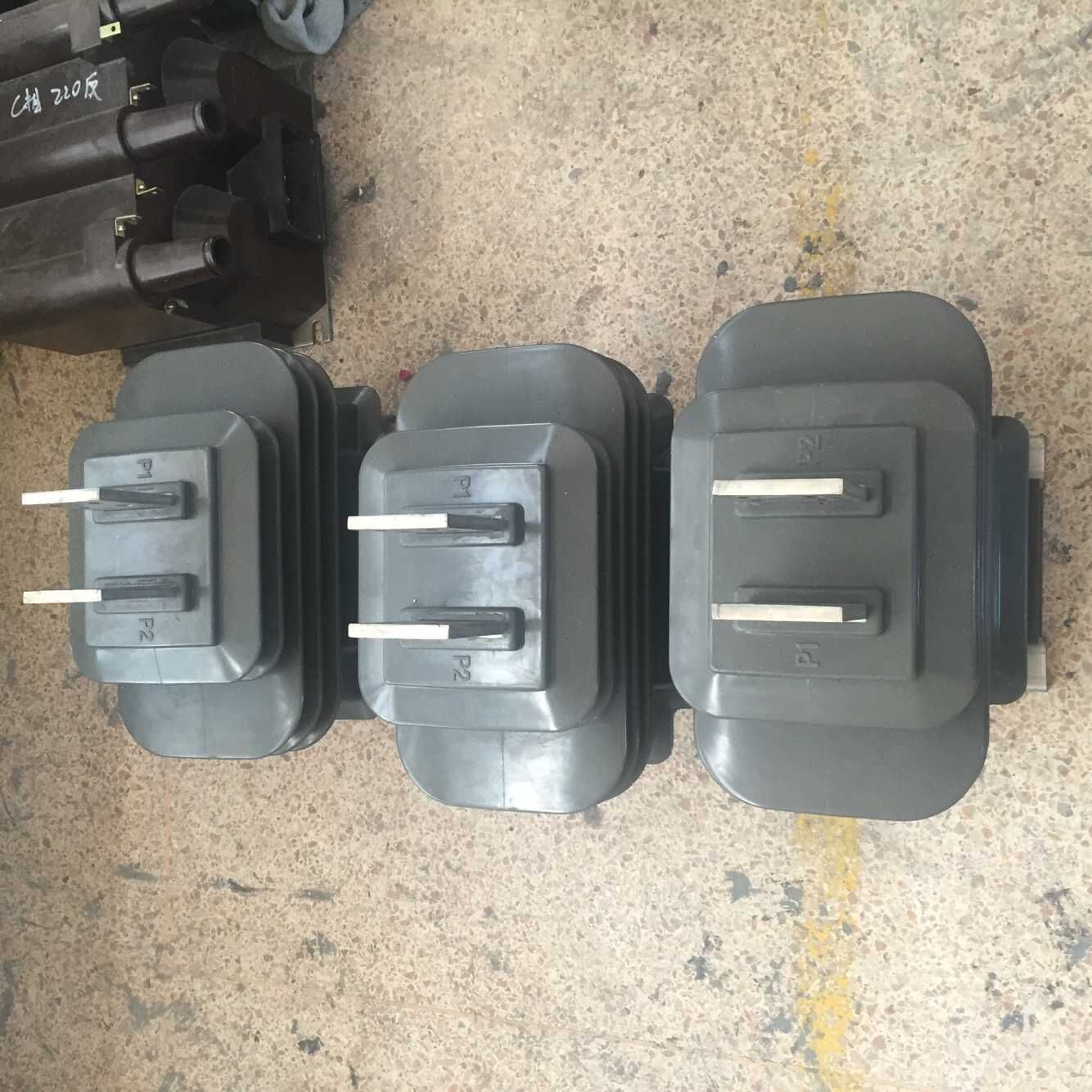

15kv (13.8KV) Outdoor Pole Mounted Current Transformer
| Price: |
US $ 300/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
LZW |
| Application: |
Instrument |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description
| |
TECHNICAL SPECIFICATIONS OF CURRENT TRANSFORMERS 13.8 KV - (250/500):5 A
FOR MEASUREMENT IN OUTPUT FEEDERS |
| | |
| TECHNICAL CHARACTERISTICS OF CURRENT 13.8 KV |
| ITEM | DESCRIPTION | UNIT | CHOSEN TECHNICAL SPECIFICATIONS | OFFERED TECHNICAL SPECIFICATIONS |
| 1 | Description of equipment | | | |
| 1.1 | Quantity | | 900 | 900 |
| 1.2 | Brand | | Specify | HEMG |
| 1.3 | Model | | Specify | LZW |
| 1.4 | Origin | | Specify | CHINA |
| 1.5 | Year of manufacturing | | 2014 | 2015 |
| 2 | ENVIRONMENTAL CONDITIONS OF OPERATION | | | |
| 2.1 | Maximum ambient temperature | oC | 40 | 40 |
| 2.2 | Minimum ambient temperature | oC | 15 | 15 |
| 2.3 | Average maximum daily temperature | oC | 30 | 30 |
| 2.4 | Relative humidity averages | % | 85 | 85 |
| 3 | Installation sites | | Outdoor | Outdoor |
| 4 | CHARACTERISTIC OF THE TC | | | |
| 4.1 | Voltage Nominal primary (phase-phase) | kV | 13.8 | 13.8 |
| 4.2 | B.I.L | kV | ≥95 | ≥95 |
| 4.3 | Primary Nominal current | A | 250500 | 250500 |
| 4.4 | Secondary Nominal current | A | 5 | 5 |
| 4.5 | Maximum permanent current | % | 120 | 120 |
| 4.6 | Rated current of short duration (1s) | kA rms | ≥12, 5 | ≥12, 5 |
| 4.7 | Dynamic current | kA peak | ≥32, 5 | ≥32, 5 |
| 4.8 | NOMINAL LEVELS OF INSULATION AT SEA LEVEL | | | |
| | (a) industrial frequency dielectric, one minute | kV rms | ≥38 | ≥38 |
| | (b) where impulse dielectric | kV peak | ≥95 | ≥95 |
| 4.8 | RATED OUTPUT (BURDEN) AND ACCURACY CLASS | | | |
| | (a) secondary winding | | | |
| | Load (burden) minimum | VA | 30 | 30 |
| | Precision | CI | 0.2 IEC | 0.2 IEC |
| 4.1 | Minimum distance of insulation (Creepage) stroke | mm | 400 | 400 |
| 4.1 | Material of insulators (bushings) | | Resin | Resin |
| 4.1 | Board for connection of terminals of the three phases | | YES | YES |
| 4.1 | Suitable for cable connector | MCM | 1 0 - 500 | 1 0 - 500 |
