| Prod Model: |
16 Cores Control Cable |
| Product Name: |
16 Cores Control Cable |
| Rated Voltage: |
450/750V 0.6/1 Kv |
| Conductor: |
Copper |
| Insulation: |
PVC |
| Sheath: |
PVC |
| Core Color: |
Red Yellow Blue Green Black or as Your Requirement |
| Shield: |
Copper Wire / Copper Tape / Steel Tape |
| Packaging: |
Packed in Roll or Wooden Drum |
| Shipping: |
3-10 Working Days |
| MOQ: |
100 Meter |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
PVC |
| Certification: |
VDE |
| Application: |
Instrument |
| Model: |
Various Control Cable |
| Brand: |
Chang Qing Teng |
Product Description

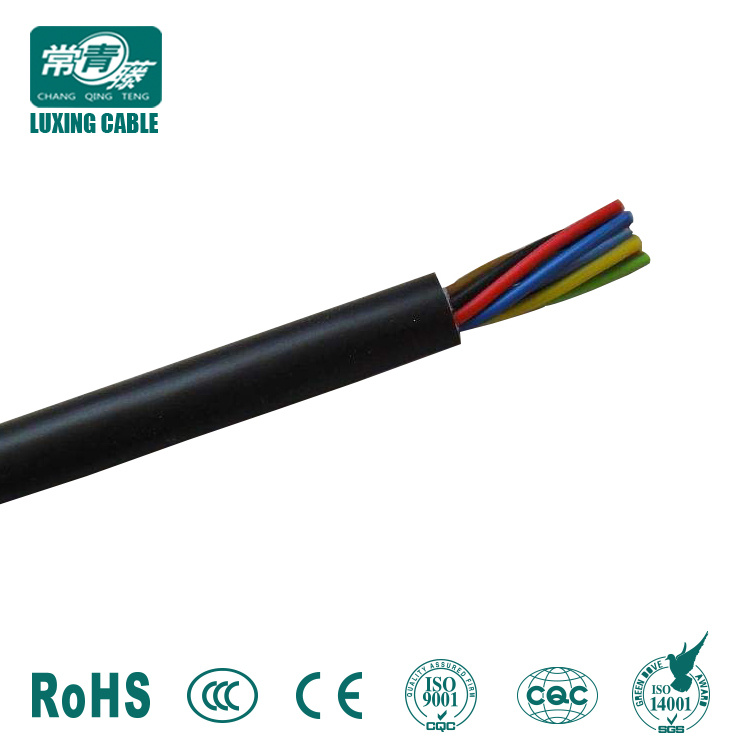

ITEM NAME : 16 Cores 1mm2 2.5mm2 4mm2 Flexible PVC Control Cable
Cable Specifications
Copper Conductor, XLPE Insulated, Braiding Shielded, PVC Sheathed Flexible Control Cable
GB9330-1988,IEC,DIN,BS,450/750V AC
450/750V Copper Coductor PVC Insulated and sheathed Flexible Control Cable
Detailed Product Description
The control cable can be produced according to the standard GB9330-1988,IEC,DIN,BS,and the factory can also manufacture the cables in accordance with other standards.
Scope of Application
The control cable are suitable for the wiring of electrical controlling equipments and instrument,monitoring and controlling return circuit,electrical protection and measurement in power distribution unit under the circumstance that the rated voltage is up to 450/750V AC.
Characteristics
1,Maximum operation voltage: 600 V.
2,Maximum operation temperature in the conductor:
90°C In a dry environment.
75°C In a wet environment.
3,Soft drawn concentric lay stranded copper conductor class B (7 wires).
4,Manufactured in sizes from 0,823 5 to 5,26 mm2 (18 to 10 AWG).
5,No-flame propagation characteristics.
6,Polyvinyl Chloride (PVC) insulation and jacket with low smoke emission and low acid gas content characteristics. Black outer jacket.
7,No existen especificaciones técnicas para este producto.
8,Con. Multiple-cond. THW-LS / THHW-LS Con. Multiple-cond. THWN / THHN Con. PE + PVC type
Control EPR + CPE Type Control EPR + PVC Type Control XLPE + PVC
Control Zero Halogens LS PVC + PVC type LS PVC + PVC type / shielded cables
9,LS tipo PVC + PVC / interlock armor industrial plants and to connect safety and signaling devices, where characteristics such as no- flame propagation, low smoke emission and low acid gas content are required.
10,Can be installed in trays or conduits and in underground or exposed to sunlight facilities, in wet or dry locations.
| Sectional Area (mm2) | 0.5 | 0.75 | 1 | 1.5 | 2.5 | 4 | 6 | 10 |
| Plain Copper (Ω/km) | 36.0 | 24.5 | 18.1 | 12.1 | 7.41 | 4.61 | 3.08 | 1.83 |
| Tinned Copper (Ω/km) | 36.7 | 24.8 | 18.2 | 12.2 | 7.56 | 4.70 | 3.11 | 1.84 |
Detailed Models :
Model | Description | Application |
KVV | copper conductor, PVC insulated, PVC sheathed, control cable | Suitable for being laid indoors, in cable trench, pipelines or other specific occasions. |
KVVP | copper conductor, PVC insulated, PVC sheathed, braided, shielded, control cable | Suitable for being laid indoors, in cable trench, pipelines or other specific occasions that demands shielding. |
KVVP2 | copper conductor, PVC insulated, PVC sheathed, copper-tape shielded, control cable |
KVV22 | copper conductor, PVC insulated, PVC sheathed, steel-tape armored, control cable | Suitable for being laid indoors, in cable trench and pipelines, directly burial or other specific occasions with a relatively large capacity for mechanical stretching force. |
KVV32 | copper conductor, PVC insulated, PVC sheathed, thin steel wire-armored, control cable | Suitable for being laid indoors, in cable trench, pipelines, silo or other specific occasions that demands shielding. |
KVVR | copper conductor, PVC insulated, PVC sheathed, flexible, control cable | Suitable for being laid indoors and places that demands moving cables with flexibility. |
KVVRP | copper conductor, PVC insulated, PVC sheathed, braided shielded, flexible, control cable | Suitable for being laid indoors and shielded places that demands moving cables with flexibility. |
Techinical Parameter
Nom.
Cross section
(mm) | Conductor construction | DCresistance of conductor at 20oC(min.) Ω/km | Nom.wall thickness
of insulaion mm |
Insulation resistance
of 70oC
(MΩ/km)
|
Type |
No./Nom. Dia of conductor mm
| PVC | PE | XLPE |
1.0 | 1 | 1/1.13 | 18.1 | 0.6 | 0.7 | 0.7 | 0.011 |
1.0 | 2 | 7/0.43 | 18.1 | 0.6 | 0.7 | 0.7 | 0.013 |
1.5 | 1 | 1/1.38 | 12.1 | 0.7 | 0.7 | 0.7 | 0.011 |
1.5 | 5 | 30/0.25 | 13.3 | 0.7 | 0.7 | 0.7 | 0.010 |
2.5 | 1 | 1/1.78 | 7.41 | 0.8 | 0.7 | 0.7 | 0.010 |
2.5 | 2 | 7/0.68 | 7.41 | 0.8 | 0.7 | 0.7 | 0.009 |
4 | 1 | 1/2.25 | 4.61 | 0.8 | 0.7 | 0.7 | 0.0085 |
4 | 2 | 7/0.85 | 4.61 | 0.8 | 0.7 | 0.7 | 0.0077 |
6 | 1 | 1/2.76 | 3.08 | 0.8 | 0.7 | 0.7 | 0.0070 |
6 | 2 | 7/1.04 | 3.08 | 0.8 | 0.7 | 0.7 | 0.0065 |
10 | 2 | 7/1.35 | 1.83 | 1.0 | 0.7 | 0.7 | 0.0065 |
Company Information Our company-Shandong New Luxing Cable Co.,Ltd establish in the year of 1999 , so until now we have been in this line for more than 18 years .at present ,we have 150 empoyees in total , and annual sales volume is about 8 billion .our headquarter in Jinan City , the capital in shandong province . and our factory located in Dezhou City , Covering an area of more than 60 acres .

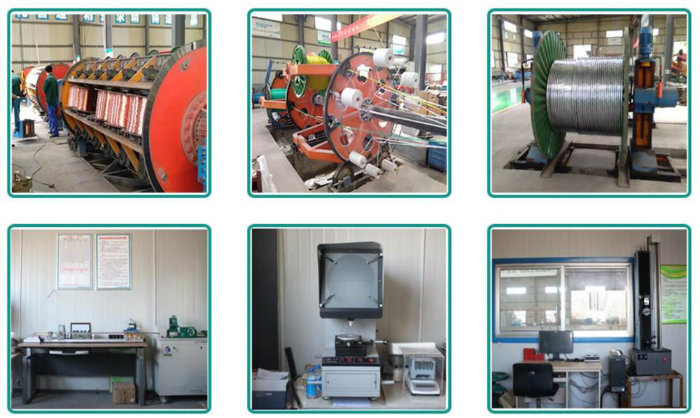

Strict Quality Test ( Raw Material & Finished Cable )
Certificates ( ISO CE CCC ROHS GB/T )

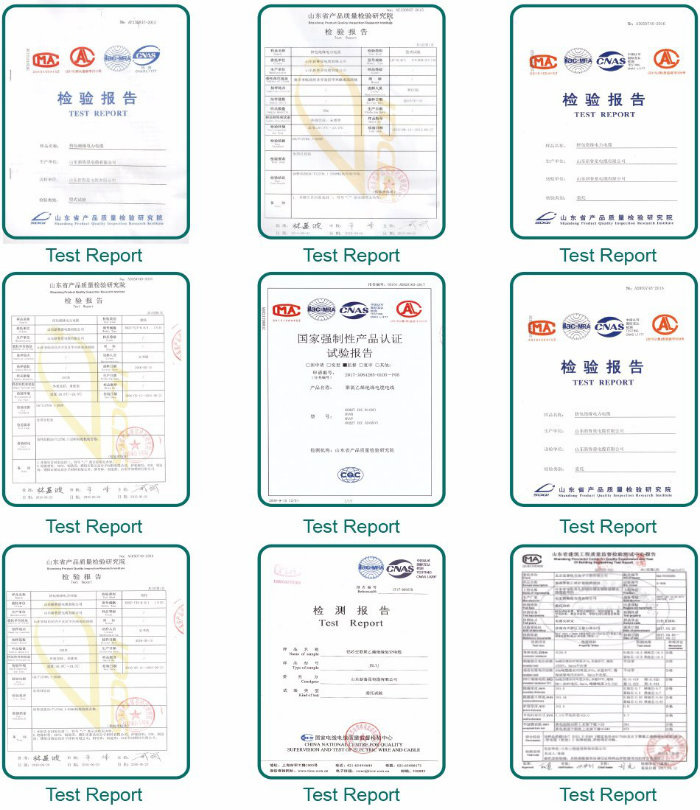

Type Test Report
We Mainly Produce the Following Products | 300/500V 450/750V electrical wire | AAC conductor |
| 600/1000V PVC insulated cable | AAAC conductor |
| 600/1000V XLPE insulated cable | ACSR conductor |
| 1.8/3KV to 26/35KV power cable | OPGW |
| Armored underground cable | ABC cable |
| Control cable and instrumentation cables | Rubber cable |

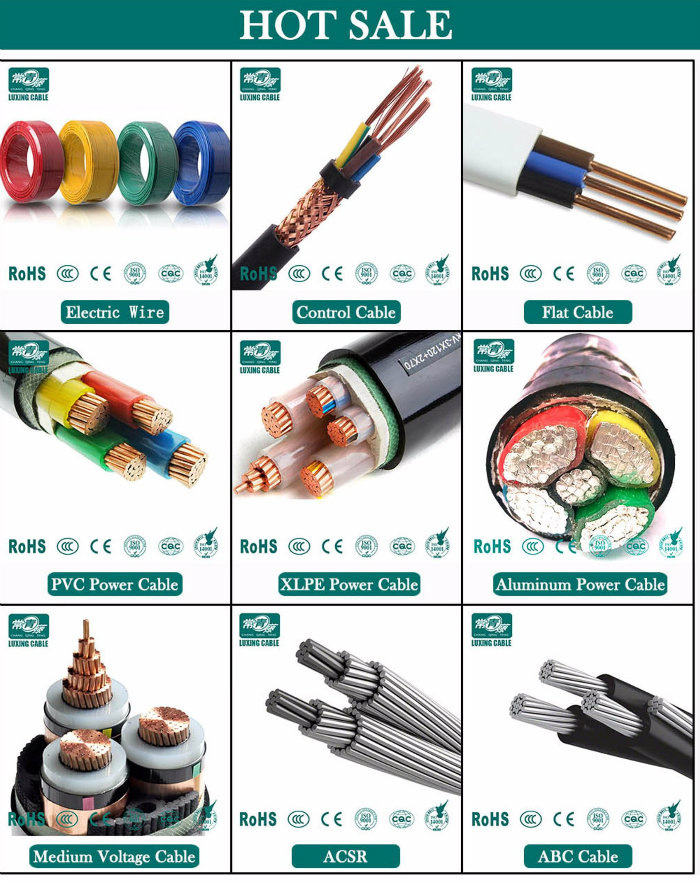

More Hot Sale Products for you to choose
