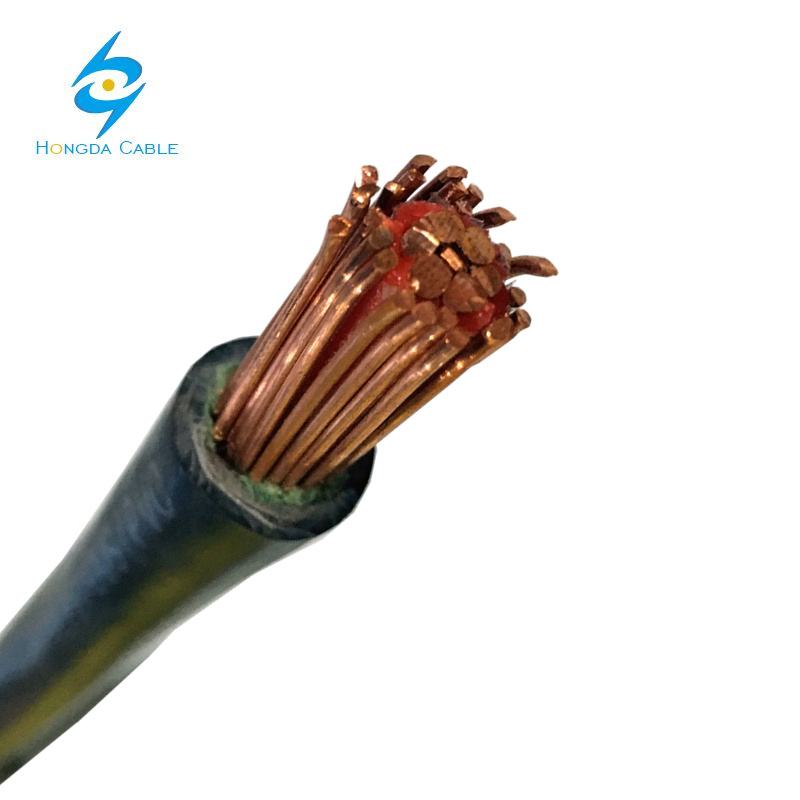

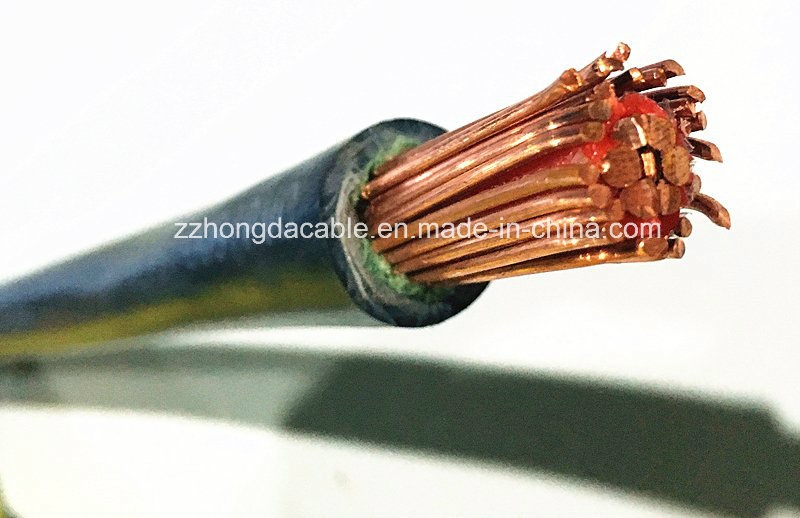

16mm2 25mm2 35mm2 Single Core Cu PVC Neutral Screen Cable
| Price: |
US $ 5-19.9/Meter |
| Min Order: |
500/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
Neutral Screen Cable |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
XLPE |
| Certification: |
CCC |
| Brand: |
OEM |
Product Description
Applications
The concentric cable is used as electric service entrance from the power distribution network until meter panel ,and as
feeder cable from the meters panel until the panel or general distribution panel,just as it is specified in the National electric
code,
this type of conductor can be used in dry and wet place,directly buried or outdoor;it's maximum temperature of
operation is 70ºC( PVC or PE insulation) or 90ºC (XLPE insulation) and it's voltage of service for all the applications is 600V.
Specification
1. Conductor : Copper or Aluminum or 8000 series Aluminum Alloy
2. Insulation: PVC or PE or XLPE
3. Concentric neutral: Copper or Aluminum or 8000 series Aluminum Alloy
4. Sheath: PVC or PE or XLPE
| | 2×#6 | 3×#6 | 2×#4 | 3×#4 | 4×#4 | 3×#2 | 4×#2 |
| Fase | No hilos | 7 |
Diametro hilo (mm) | 1.55 | 1.96 | 2.47 |
Diametro fase (mm) | 4.66 | 5.88 | 7.42 |
Seccion fase (mm2) | 13.3 | 21.2 | 33.6 |
| Espesor aislamiento (mm) | 1.14 |
Diametro sobre aislamiento (mm) | 6.94 | 8.16 | 9.70 |
Neutro | Cobertura (%) | ≥90 |
| No hilos | 25 | 65 | 26 | 65 | 103 | 65 | 103 |
Diametro hilo (mm) | 0.81 | 0.51 | 1.02 | 0.64 | 0.51 | 0.81 | 0.64 |
| AWG | 20 | 24 | 18 | 22 | 24 | 20 | 22 |
Seccion (mm2) | 12.97 | 13.33 | 21.3 | 21.11 | 21.12 | 33.7 | 33.44 |
| Espesor cubierta (mm) | 1.14 | 1.52 | 1.14 | 2.03 | 1.52 | 2.03 | 2.03 |
Diametro exterior aproximado (mm) | 11.14 | 11.2×18.2 | 12.7 | 13.8×21.9 | 22 | 15.6×25.3 | 26 |

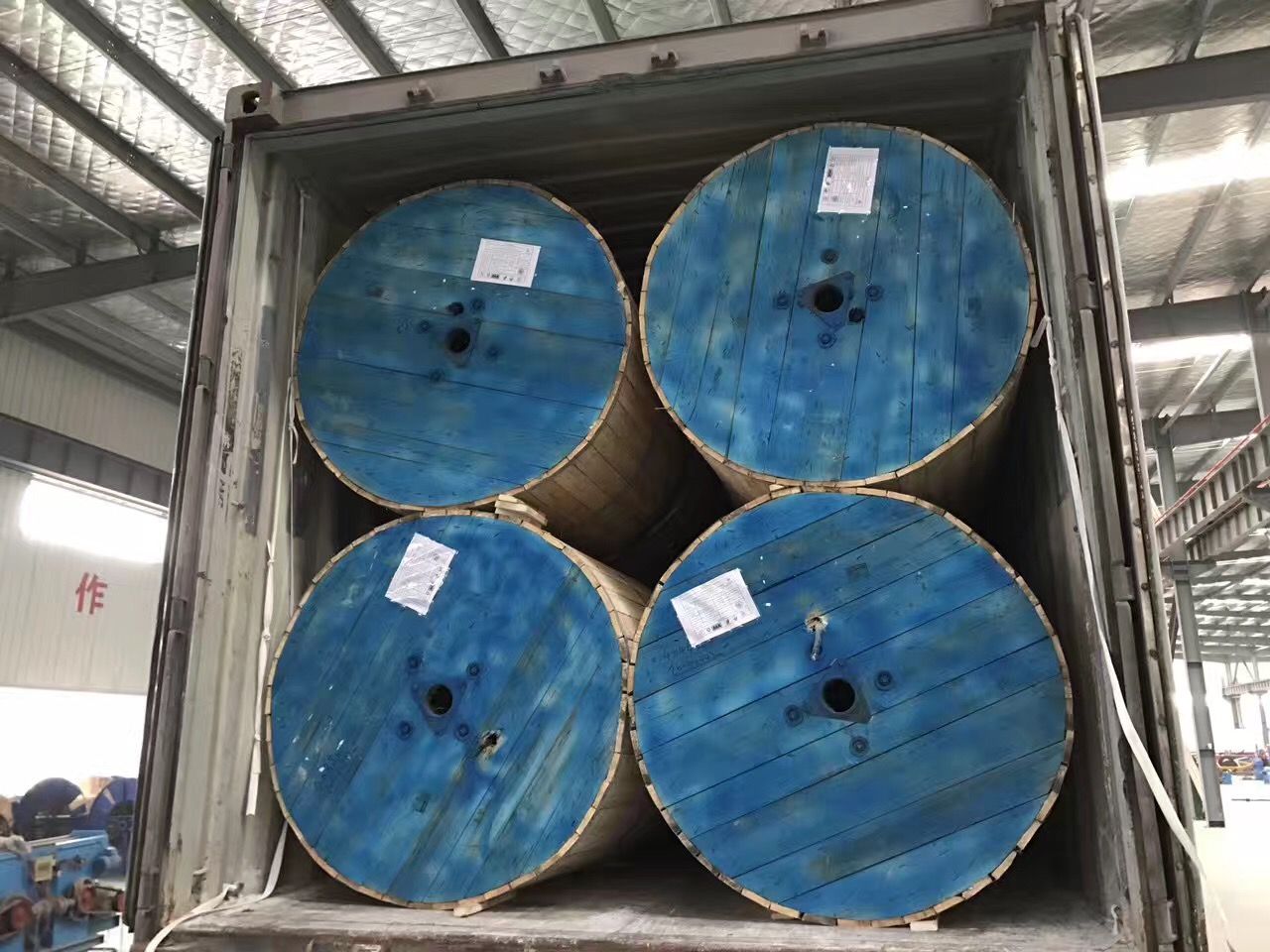

Packing shipping
Why Choose Us ?

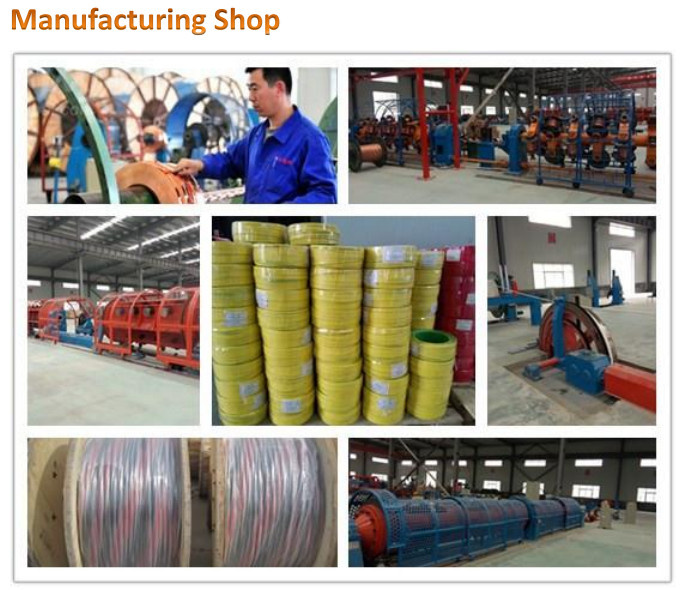

1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue:packaging list,invoice
5. Powerful technology team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.
10.We have a good reputation in the overseas
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance,70% T/T balance before shipment
If you have another question, pls feel free to contact us below

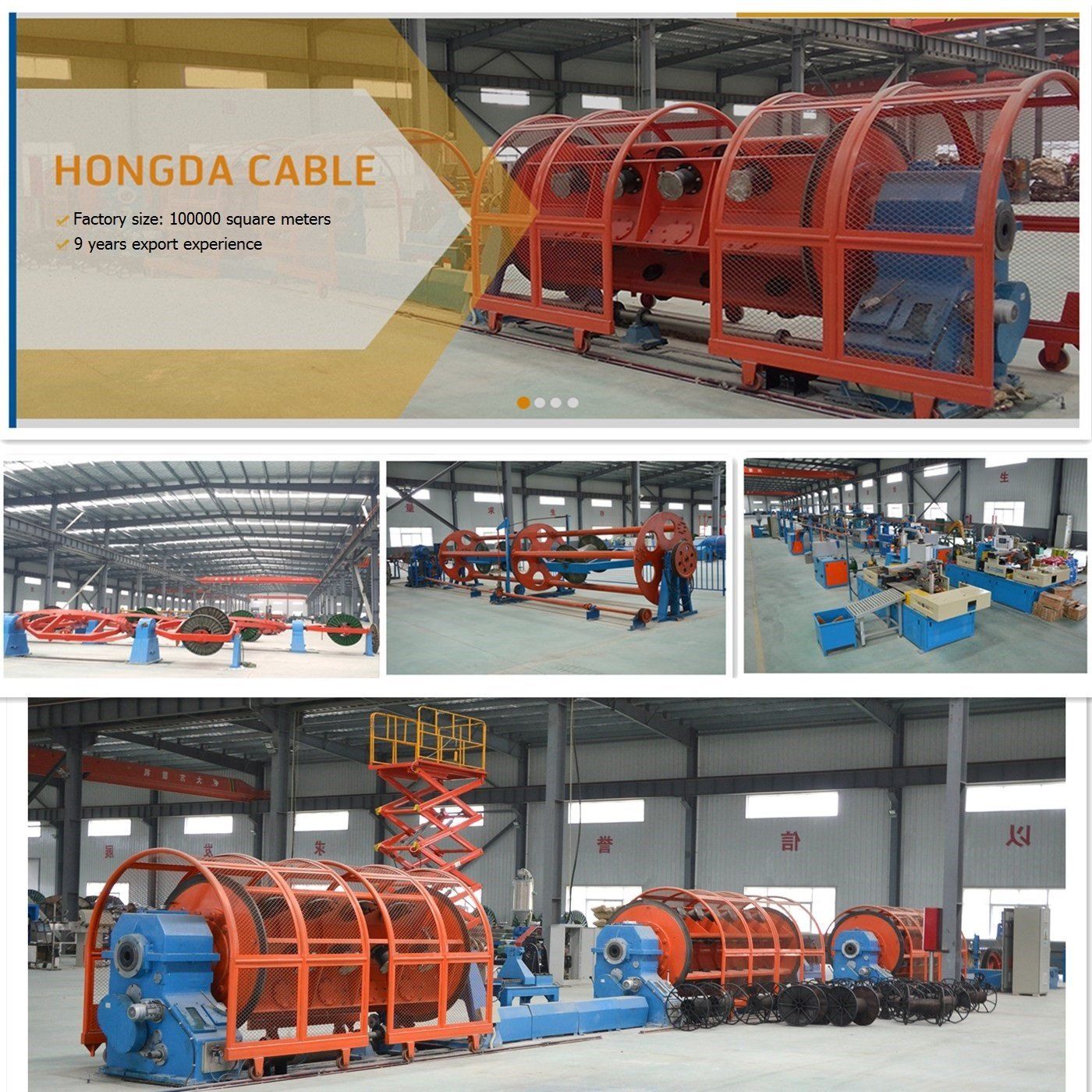

Henan Hongda Cable Co., Ltd. Located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Our company covers an area of 100, 000 square meters, including 50, 000 square meters of building area, and has more than 120 staff members and professional workers accounting for one third. Our fixed assets of 90, 000, 000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity.
Henan Hongda Cable Co. Ltd. Is the original Zhengzhou Hongda Cable Co. Ltd. Established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products, We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 70 (sets) domestic and oversea-leading production and testing equipment.
Our company's products have passed the ISO9001 Quality Management System Certification, the products also passed China Compulsory Certification (3C certification).
Our company insists on the principle of "Taking high and new technology as guide and being based on modern management". Our products sell well all over the world and the main reason is that we attach great importance to business honesty. We sincerely hope to be your partner.
