1kw-2kw Pure Sine Wave Inverter for Power System

Name: 1kw-2kw Pure Sine Wave Inverter for Power System
Brand: all-electronics-online.com
SKU: 706941542
Availability: InStock
Rating: 4.8 (145 reviews)

Price:	US $ 260-420/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FI-1020
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Snat
OEM/ODM:	Provide
Sample Order:	Accept
Accessory:	Controller, Inverter, Battery.Power System
Company:	Manufacture
Phase:	Single
Power Source:	Solar Power
Application:	School, Streets, Pasturing Areas, etc
Brand:	Snat

Product Description

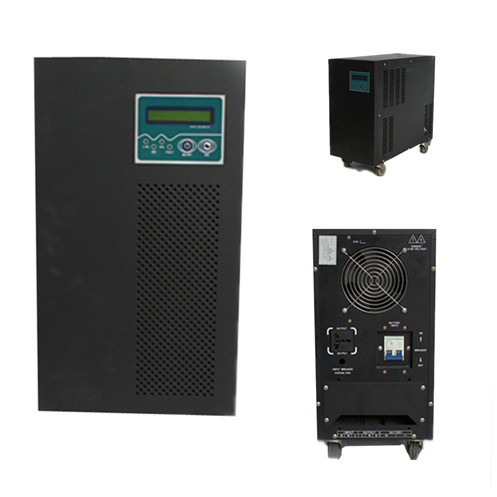

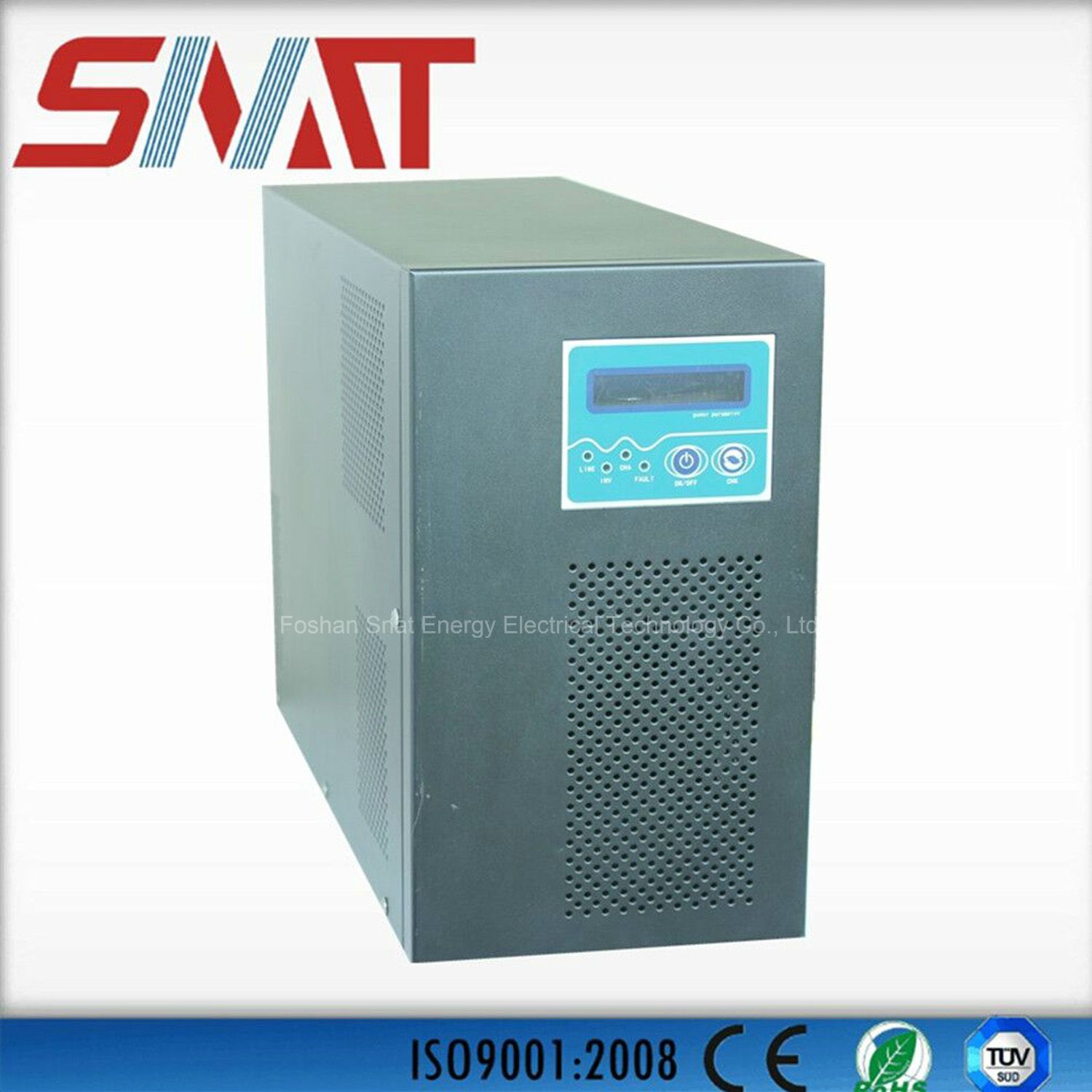

1kw-2kw Pure Sine Wave Inverter for Power System

Main features
Excellent performance because of an MCU intelligent control technology
a wide range of applicable loads because of power-frequency transformer design and pure sine wave AC output
Personalized digital communication via an intelligent RS232 interface
A wide range, high accuracy, and full automatic voltage stabilization
Overall protection functions (overload protection, short circuit protection, overvoltage protection, under voltage protection and over temperature protection.)
Simple LEDs and a LCD for visualization of operation status of the equipment
Use with generators because of high adaptability to power grids
A longer battery life because of intelligent battery management and overcharge protection

Technical Indexes

MODEL -FIH	1kw	1.5KW	2KW
Rated power	1000W	1500W	2000W
DC voltage	42VDS /48VDS
Input voltage	160-265VAC
Input frequency	45--65 Hz
Output voltage	220VAC ±5%
Output frequency	50Hz±1%
Switching time	5ms
Charge Current	Max15A
Inverter output protection	input overvoltage/under voltage protection, DC under voltage protection, peak surge protection, over; load protection; 100-120%, 30s ;>120%, 100ms; 150%, 50ms; output short circuit<150μs
Noise	<45dB
Ambient temperature for operation	0-40ºC
ambient temperature for storage	-15------ +15
Relative humidity for operation/storage	0-90% (no condensation)
Altitude for operation	0-3000m
Attitude for storage	0-15000m
product dimensions(DW*H)	380145210	446175300
Packing dimensions (DWH)	480220280	590315435
Net weight/gross weight	14/15.5	22.2/26	28.5/30.2

Warranty:
Quality warranty for 1 year, including all relative products purchased from our company; parts will be shipped free during warranty period.

Delivery time: Stick to contract

FAQ:
Q1: MOQ
A: MOQ from our company is required 1 unit

Q2: Are you manufacturer or trading company?
A: We are professional manufacturer of UPS since 1998 and manufacturer of solar inverter, solar charge controller and AC&DC solar power system since 2004; we are also trading company of solar panel and battery for solar power system.

Q3:I need this product and wanna a system for family/industrial/commerical using, can you help me?
A: Yes, we have a professional technology team average 10 years' experience, they can design solar power system in accordance with customers' special requirements.

Q4: How long is your delivery time
A: Within 15 days

Q5:How about your after-sales service?
A:Our quality warranty for 2 years; any parts will be shipped for free during warranty period.

Q6: Why choose us?

A1)Prompt delivery and good after-sale services.

A2)We have our own factory,the selling prices is competitive.

A3)All of our products are certified with CE, RoHS, ISO9001:2008.

A4)100% new materials for production and superior quality.

A5)Professional R&D technology team average 10 years experience

Factory

Packing & Shipping

A Professional Manufacturer Specialized in field of Solar power system

Foshan SNAT Energy Electrical Technology Co. Ltd is a professional manufacturer specialized in the field of solar inverters, solar inverters with controllers built-in, solar controllers, UPS which are used for household, telecom, electricity, infrastructure and industrial markets.

At the same time, our company is concurrently engaged in solar panels, batteries for solar power system. All products purchased by our company have our wanrranty commitment, parts will be shipped for free during wanrranty period.

Company information

Foshan SNAT Energy Electrical Technology Co. Ltd is established in 2004. Our company's predecessor is a trading company and engaged in UPS since 1998 and develop solar inverter since 2004. We are haveing professional technical team and focus on customers' demands, continuous innovation, and establish good cooperation with more and more clients. The leading-edge technology has become a competitive advantage for our customers and business.

Corporate development prospect

Foshan SNAT Energy Electrical Technology Co. Ltd is becoming a strong brand step by step depending on high quality and strict self-demanding. We have won a good reputation among clients. Nowadays, we have prepared well to develop much more wide international market. We sincerely wish to corporate with more and more international traders to vreat a better future!
