| Prod Model: |
EKL2-40 |
| Protection Degree: |
IP20 |
| Mechanical Life: |
8,000 |
| Electrical Life: |
4,000 |
| Export Market: |
Global |
| Quality: |
AAA |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCB |
| Certification: |
SGS TUV RoHS |
| Poles Number: |
1p+N |
Product Description
Description For EKL2-40 RCBO
Technical Features
Electrical Features
Type (wave form of the earth leakage sensed):AC,A
Thermo-magnetic release characteristic:B,C
Rated current In : 6, 10, 16, 20, 25, 32, 40A
Poles:1P+N
Rated voltage Ue: 230/240V
Rated sensitivity In:0.03, 0.1, 0.3A
Rated residual making and breaking capacity Im:500A
Rated short-circuit capacity lcn:6,000A
Break time under In :≤0.1s
Rated frequency:50/60Hz
Rated impulse withstand voltage (1.2/50)Uimp:4000V
Dielectric TEST voltage at ind. Freq. for 1min:2kV
Insulation voltage Ui:500V
Pollution degree:2
Mechanical Features
Terminal connection type: Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable: 16mm2 18-5AWG
Terminal size top/bottom for busbar: 16mm2 18-5AWG
Tightening torque 2 N*m 18In-Ibs.
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Connection: From top
| RCBO EKL2-40 | | | |
| In | Code | QTY/CTN |
| B curve | C curve | |
| 1P+N AC 0.03A | |
| 6A | 2L61NB06003 | 2L61NC06003 | 60 |
| 10A | 2L61NB10003 | 2L61NC10003 | 60 |
| 16A | 2L61NB16003 | 2L61NC16003 | 60 |
| 20A | 2L61NB20003 | 2L61NC20003 | 60 |
| 25A | 2L61NB25003 | 2L61NC25003 | 60 |
| 32A | 2L61NB32003 | 2L61NC32003 | 60 |
| 40A | 2L61NB40003 | 2L61NC40003 | 60 |
| | |
| 6A | 2L61NB0601 | 2L61NC0601 | 60 |
| 10A | 2L61NB1001 | 2L61NC1001 | 60 |
| 16A | 2L61NB1601 | 2L61NC1601 | 60 |
| 20A | 2L61NB2001 | 2L61NC2001 | 60 |
| 25A | 2L61NB2501 | 2L61NC2501 | 60 |
| 32A | 2L61NB3201 | 2L61NC3201 | 60 |
| 40A | 2L61NB4001 | 2L61NC4001 | 60 |
| | |
| 6A | 2L61NB0603 | 2L61NC0603 | 60 |
| 10A | 2L61NB1003 | 2L61NC1003 | 60 |
| 16A | 2L61NB1603 | 2L61NC1603 | 60 |
| 20A | 2L61NB2003 | 2L61NC2003 | 60 |
| 25A | 2L61NB2503 | 2L61NC2503 | 60 |
| 32A | 2L61NB3203 | 2L61NC3203 | 60 |
| 40A | 2L61NB4003 | 2L61NC4003 | 60 |
| | |
| 6A | 2L61NB06003A | 2L61NC06003A | 60 |
| 10A | 2L61NB10003A | 2L61NC10003A | 60 |
| 16A | 2L61NB16003A | 2L61NC16003A | 60 |
| 20A | 2L61NB20003A | 2L61NC20003A | 60 |
| 25A | 2L61NB25003A | 2L61NC25003A | 60 |
| 32A | 2L61NB32003A | 2L61NC32003A | 60 |
| 40A | 2L61NB40003A | 2L61NC40003A | 60 |
| | |
| 6A | 2L61NB0601A | 2L61NC0601A | 60 |
| 10A | 2L61NB1001A | 2L61NC1001A | 60 |
| 16A | 2L61NB1601A | 2L61NC1601A | 60 |
| 20A | 2L61NB2001A | 2L61NC2001A | 60 |
| 25A | 2L61NB2501A | 2L61NC2501A | 60 |
| 32A | 2L61NB3201A | 2L61NC3201A | 60 |
| 40A | 2L61NB4001A | 2L61NC4001A | 60 |
| | |
| 6A | 2L61NB0603A | 2L61NC0603A | 60 |
| 10A | 2L61NB1003A | 2L61NC1003A | 60 |
| 16A | 2L61NB1603A | 2L61NC1603A | 60 |
| 20A | 2L61NB2003A | 2L61NC2003A | 60 |
| 25A | 2L61NB2503A | 2L61NC2503A | 60 |
| 32A | 2L61NB3203A | 2L61NC3203A | 60 |
| 40A | 2L61NB4003A | 2L61NC4003A | 60 |

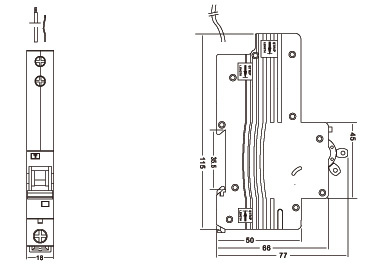

Dimensions (mm)
