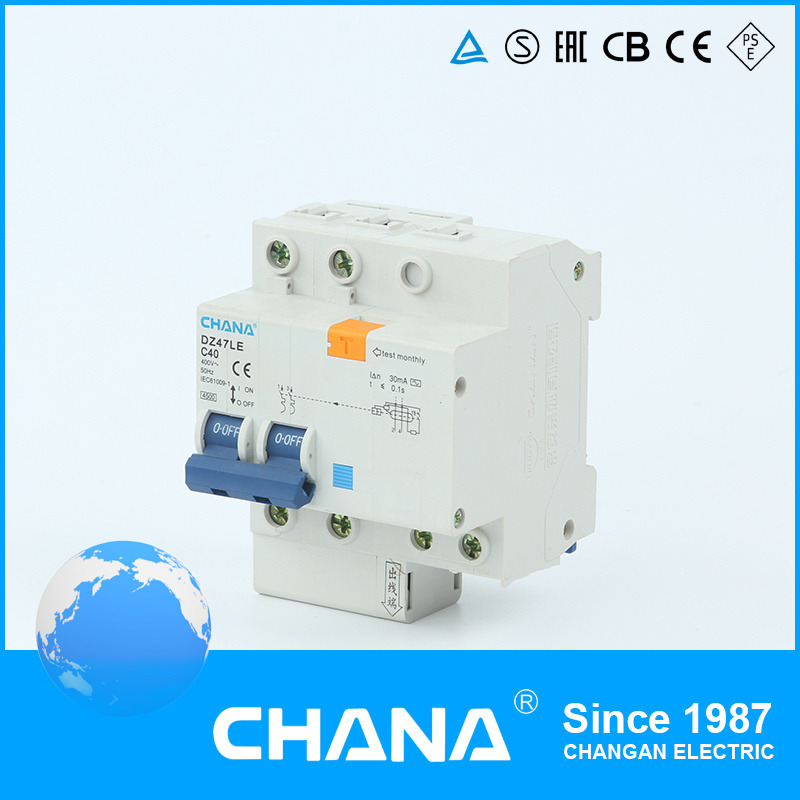

63A (Electronic Type) RCBO with CB Ce RoHS Approvals Dz47le-63

Prod Model:	DZ47LE-63
Brand Type:	Chana or OEM
Warranty:	1.5 Years
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	ELCB
Certification:	RoHS
Poles Number:	2p(1p+N)

Product Description

1. Electrical Features


Type (wave form of the earth leakage sensed)	AC,A
Thermo-magnetic release characteristic	B,C
Rated current In MCB+add on RCD block	6,10,16,20,25,32,40,50,63A
Poles	2P(1P+N),4P(3P+N)
Rated voltage Ue	240/415V
Rated sensitivity IΔn MCB6+add on RCD block	0.03 , 0.1 , 0.3A
Rated residual making and breaking capacity IΔm	500A(In≤40A) 630(In>40A)
Rated short-circuit capacity Icn	4500A
Break time under IΔn	≤0.1s
Rated frequency	50/60Hz
Rated impulse withstand voltage (1.2/50) Uimp	4000V
Dielectric TEST voltage at ind.Freq.for 1 min	2kV
Insulation voltage Ui	500v
Pollution degree	2

2. Mechanical Features


Electrical life	2000
Mechanical life	4000
Protection degree	IP20
Ambient temperature (with daily average≤35ºC)	-5ºC...+40ºC
Storage temperation	-25ºC...+70ºC

3. Installation

1) Terminal size top/bottom for cable: 25mm²
2) Terminal size top/bottom for busbar: 25mm²
3) Tightening torque 2.0 N*m
4) Mountin:On DIN rail EN 60715 (35mm) by means of fast clip device
5) Connection: From top and bottom (for combined type)
               From top (MCB+add-on RCD block)

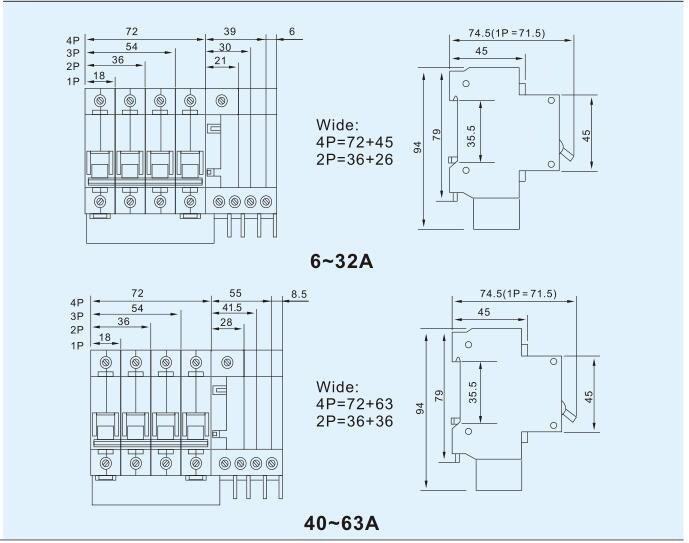

4. Dimensions (mm)

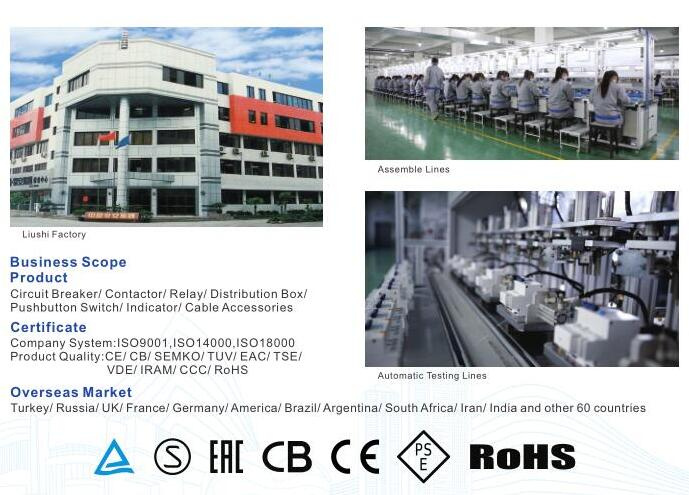

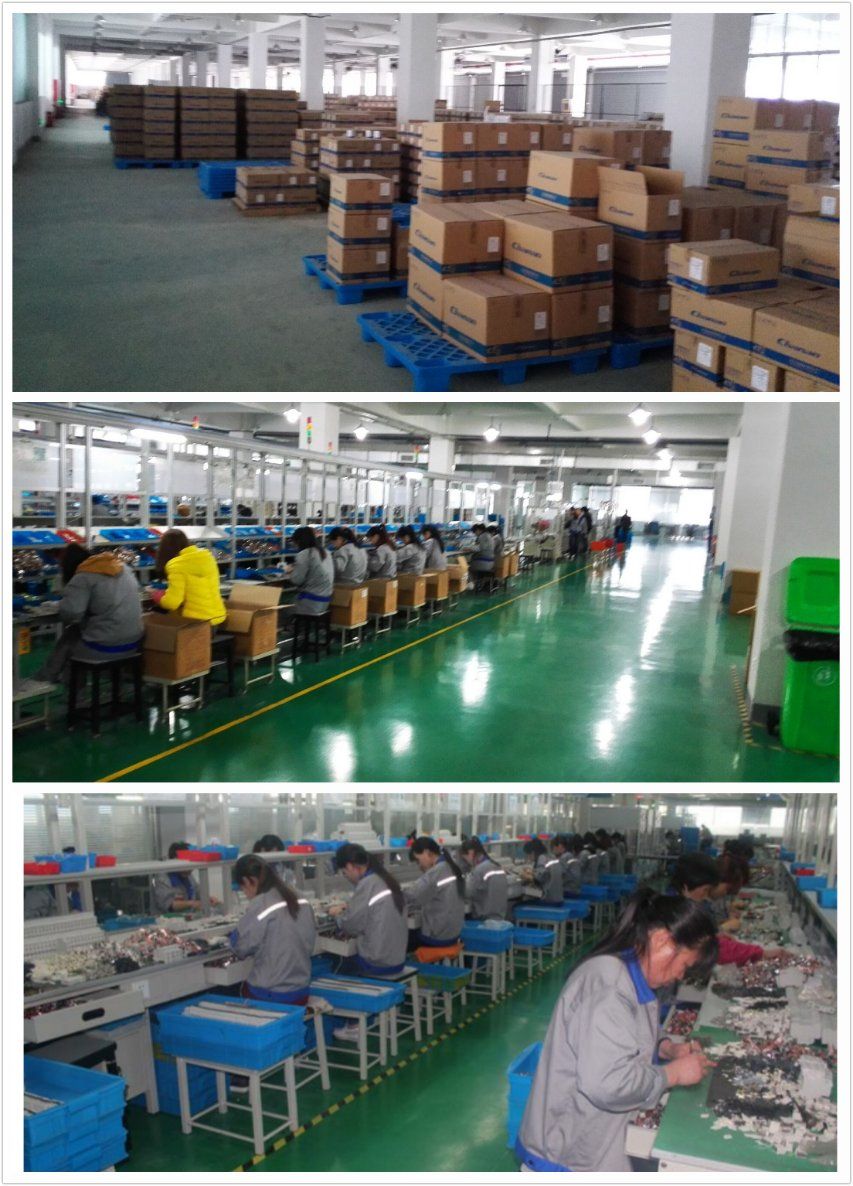

5. Company Profiles






6. Shipping

1) Normally by SEA From NINGBO TO ...
2) Products are shipped via UPS / DHL / FedEx / TNT and so on expresses (door to door) If the amount
is Small.
3) We Provide Drop shipping Service.
4) In order to ensure you receive your order tax free upon import, we can declare lower value according to your demand.
5) Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the       destination country.



7. Payment

1) We usually use T/T (30% deposit before production and 70% to be paid against the copy of B/L).
2) If the Amount is small,you can pay to us by western union/Paypal/Money Gram.
3) L/C also acceptable



8. Warranty:

1) We provide 18 months warranty.
2) If the product is defective, please notify us within 10 days of delivery.
3) All products must be returned on their original condition, in order to qualify for a refund or exchange of good
