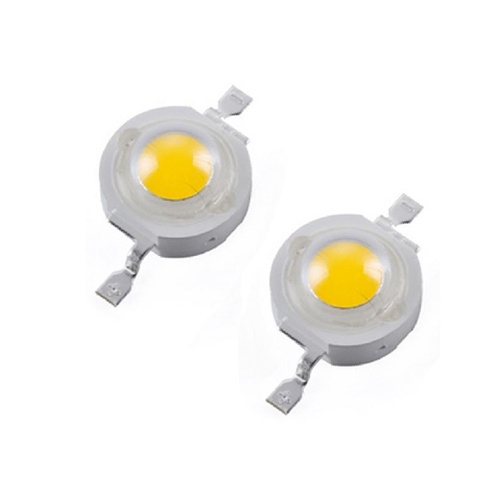

1W LED Bridgelux LED Diode

Prod Model:	1w
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	1W-3W
Voltage:	3.0-3.4V
Current:	350-1000mA
Lumen:	140-160

Product Description

Emergency lighting energy saving 1w 3w led warm white high lumen ledPOWER: 1W
VOLTAGE: 3.0-3.4V
CURRANT: 350-1000MA
LUMEN: 140-160LM@350MA
CCT: 5700-6000K (Accept customer made)
CHIP: 45MIL BRIDGELUX
BEAM ANGLE: 120° (60 ° /90° /140° Accept customer made)

APPLICATION:
LED WALL WASHER, LED POOL LIGHT, LED FOOD LIGHT, LED SPOT LIGHT, OTHER BULDING DECORATIVE LIGHT.

 1) High quality raw materials (Bridgelux/Epistar chip, Intematix phosphor, Ticor silver epoxy)
 2) Excellent color unity (two times of color seperation process)
 3) Brightness decay can be as low as 3%. (0% brightness decay for the first 3,000 hrs)
 4)  Production capacity: 10KK high power led/month, 30kk  smd led/month.
  5) Competitive factory price with superior quality( strictly tested)

Outstanding Service Level
* Professional Sales Team backing up with experienced engineers.
* Best Quality & Best Price & Best Service.
* Customizaiton and OEM service available.


CCT(COLOR BIN)	CURRENT(mA)	VOLTAGE(V)	POWER(W)	FLUX(lm)	ANGLE(°)	CRI
2725±145K (27L5)	350	3.0-3.4	1	120-130	120	70
3045±175K (30L5)	350	3.0-3.4	1	130-140	120	70
3985±275K (40L5)	350	3.0-3.4	1	130-140	120	70
5028±283K (50L5)	350	3.0-3.4	1	140-150	120	70
5665±355K (57L5)	350	3.0-3.4	1	140-150	120	70
6530±510K (65L5)	350	3.0-3.4	1	140-160	120	70
