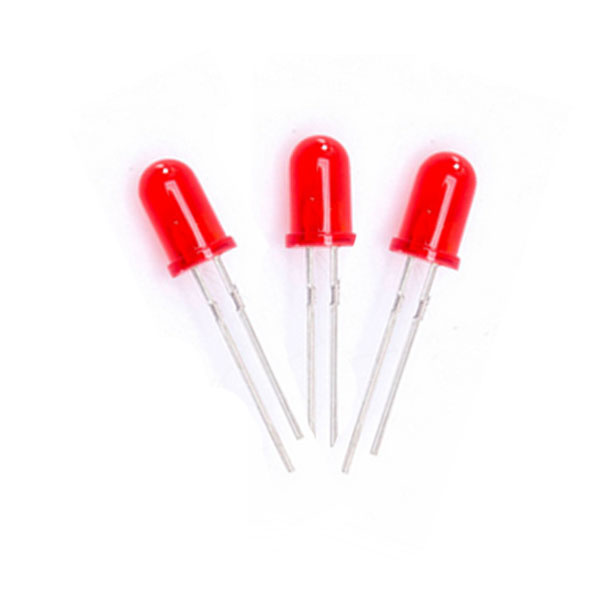

DIP 5mm Round Lighting LED Diode with Long Legs

Name: DIP 5mm Round Lighting LED Diode with Long Legs
Brand: all-electronics-online.com
SKU: 632334355
Availability: InStock
Rating: 4.7 (132 reviews)

Price:	US $ 0.04-0.12/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	led diode
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Round Straw Oval
Diameter:	3mm-10mm

Product Description

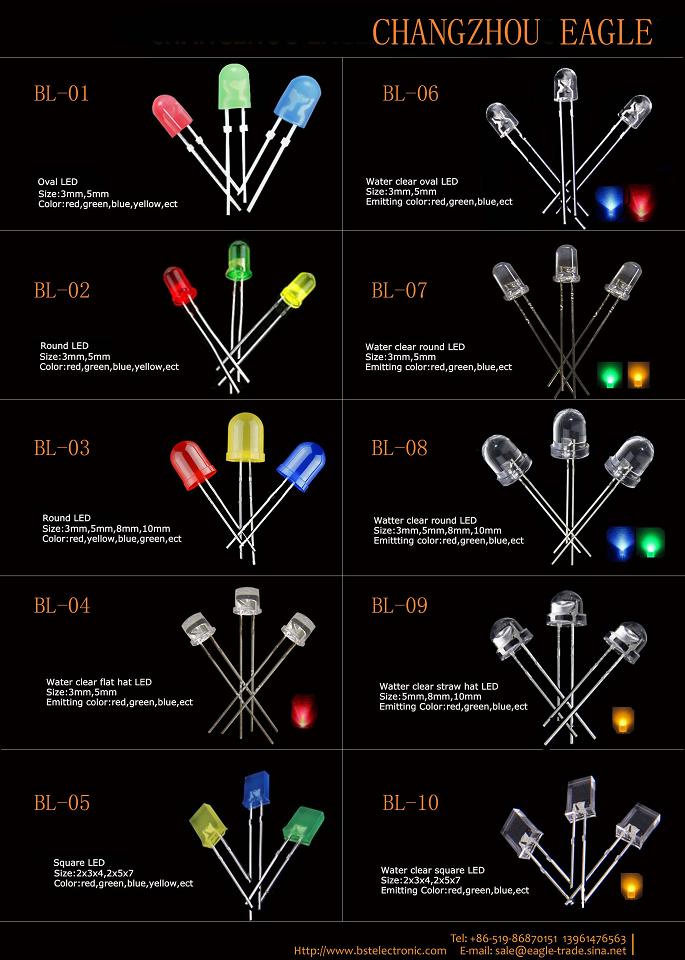

1) Shape: Round, rectangular, ellipse, tower, Christmas LED
2) Emitted color: Red, green, yellow, orange, blue, pure green and white
3) Low power and low forward voltage, wide viewing angle, high Luminous power
4) Applications: Electronic device indicators, portable equipment, indoor/outdoors message display, traffic signal lights and automotive uses

Parameter	Symbol	Typ.	Max.	Unit	Test Condition
Luminous Intensity	Iv	---	80	mcd	If=20mA (Note 1)
Viewing Angle	2θ1/2	18	---	Deg	(Note 2) Fig.5
Peak Emission Wavelength	λp	570	---	nm
Dominant Wavelength	λd	---	575	nm	Note 3
Spectral Line Half - Width	Δλ	10	---	nm
Forward Voltage	Vf	1.8	2	V	If=20mA
Reverse Current	IR	---	10	μA	VR=5V

We are the main manufacturer and exporter of electronic products such as amplfier, car player, speaker, remote control, inverter, microphones, antennas, cable, plugs, etc. With years of experience on mass production and exportation, we are able to promise prompt delivery and favorable prices to our customers. OEM/ ODM orders and your special requests are welcome. Samples are available upon request! For more information, please contact us by now.
