| Package Style: |
Mini Module |
| Configuration Type: |
1X2 |
| Fiber Type: |
Singlemode G.657A1 |
| Connector Type: |
Sc/APC |
| Fiber Diameter: |
900μm |
| Pigtail Length: |
1.5m |
| Insertion Loss: |
≤4.0dB |
| Return Loss: |
≥50dB |
| Loss Uniformity: |
≤0.6dB |
| Directivity: |
≥55dB |
| Application: |
Probe |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
CCC |
Product Description

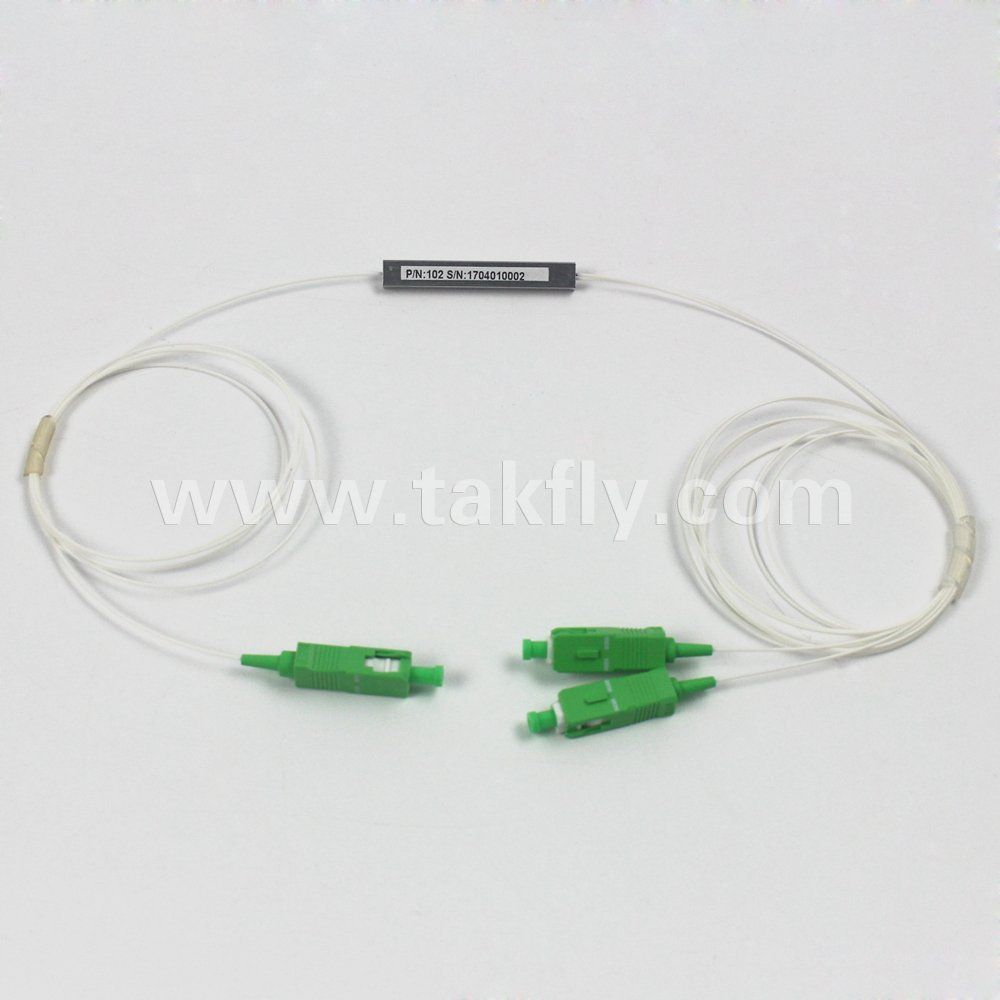

1x2 PLC Fiber Splitter, Mini Module, 900μm, SC/APCSinglemode G.657A1 fiber, 900μm input/output, 1260-1650nm, mainly used in fiber splice closure, optical distribution box and no need to splice in PON system.
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
Blockless PLC splitter has stronger fiber protection than bare fiber splitter, which is a miniaturization result of cassette splitter. It's mainly used for various connection and distribution boxes or network cabinets.
Product Details| Package Style | Mini Module | Configuration Type | 1x2 |
| Fiber Type | Singlemode G.657A1 | Connector Type | SC/APC |
| Fiber Diameter | 900μm | Pigtail Length | 1.5m |
| Insertion Loss | ≤4.0dB | Return Loss | ≥50dB |
| Loss Uniformity | ≤0.6dB | Directivity | ≥55dB |
| Polarization Dependent Loss | ≤0.2dB | Temperature Dependent Loss | ≤0.5dB |
| Wavelength Dependent Loss | ≤0.3dB | Operating Bandwidth | 1260~1650nm |
| Operating Temperature | -40~85°C | Storage Temperature | -40~85°C |
Product Highlights
1X2 PLC splitter, uniform distribution of optical signal
Small size, with the splitter type of mini module, SC/APC connector
Ideal for EPON, GPON, FTTH/FTTX network
Simple and Easy ConnectionBlockless PLC splitter can be easily installed in fiber splice closure, optical distribution box for space saving and no need to splice.
