2.4G 3 Zones RF/Wireless Touch Screen CCT LED Controller

Name: 2.4G 3 Zones RF/Wireless Touch Screen CCT LED Controller
Brand: all-electronics-online.com
SKU: 825187595
Availability: InStock
Rating: 4.4 (129 reviews)

Price:	US $ 10/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SU-TOUCH-CCT
Working Temperature:	-20-55
Output:	2 Channels
Current:	6A Each Channel
Connection Mode:	Common Anode
Controller Size:	L85×w45×h23mm
Remote Size:	L150×w40×h13mm
Warranty:	2 Years
Lifespan:	50,000h
Control Way:	Touch Remote Wireless
Application:	LED Products
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	<50m
Material:	Plastic
Battery Type:	AAA Battery
Voltage:	DC12-24V

Product Description

Product Description
This 2.4G 3 zone Touch Remote RGBW controller is human touch type and key control type universal RGB controller. Adopting the most advance PWM control technology, can control all kinds of 4 channel (common anode) and 5 wires LED lights. Such as LED module, led strip, led control box, led source,etc. This controller is easy to connected with wires and very simple to use. It is with synchronous indicating light and power off memory function. User can choose different changing mode, adjust the speed and brightness,turn on/off by the remote controlling. User can get flash effect, strobe effect, fade effect etc according to their demand .

Technical Parameters
Working temperature:-20~55ºC
Supply voltage:DC12V~24V
Output:2 Channel
Connection mode:Common anode
Controller size:L85×W45×H23mm
Remote size:L150×W40×H13mm
Static power consumption:<1W
Output current:<6A/CH
Output power:12V:<144W;24V:<288W

Remote Function introduction:
1,Use the 2.4G frequency RF remote control, no need to make the remote direct to the controller, and the RF remote can control it across obstacles.
2,In the open area remote control distance is about 30 meters.
3,Adopt touch control remote, slightly touch the color wheel can switch the light color easily and smoothly

Press ON button to start, then press mode button can switch the 9 modes as following:

Number	Mode	Adjustable state
1	Warm Color Fade In And Fade Out	Brightness is not adjustable,"+""-"are for speed up and down
2	Cool Color Fade In And Fade Out
3	Warm Color & Cool ColorCross Fade
4	Warm Color Strobe Flash
5	Cool ColorStrobe Flash
6	Warm Color & Cool Color Strobe Flash

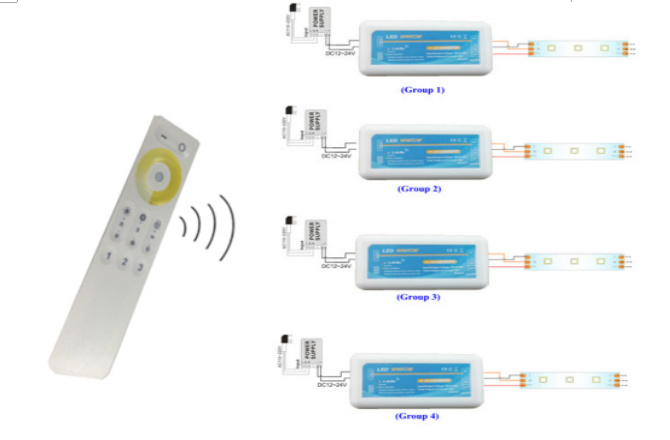

Typical Application

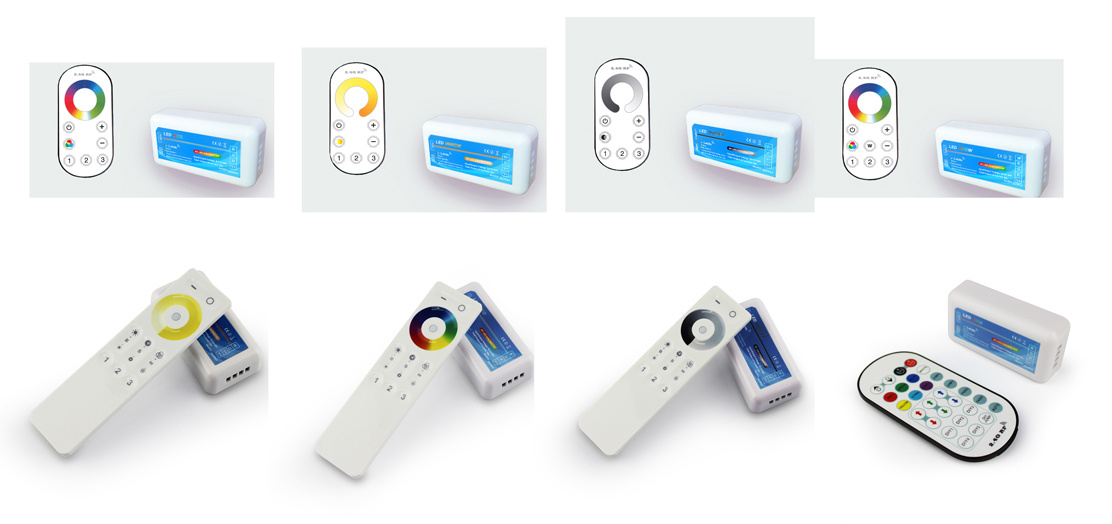

More led controller:
