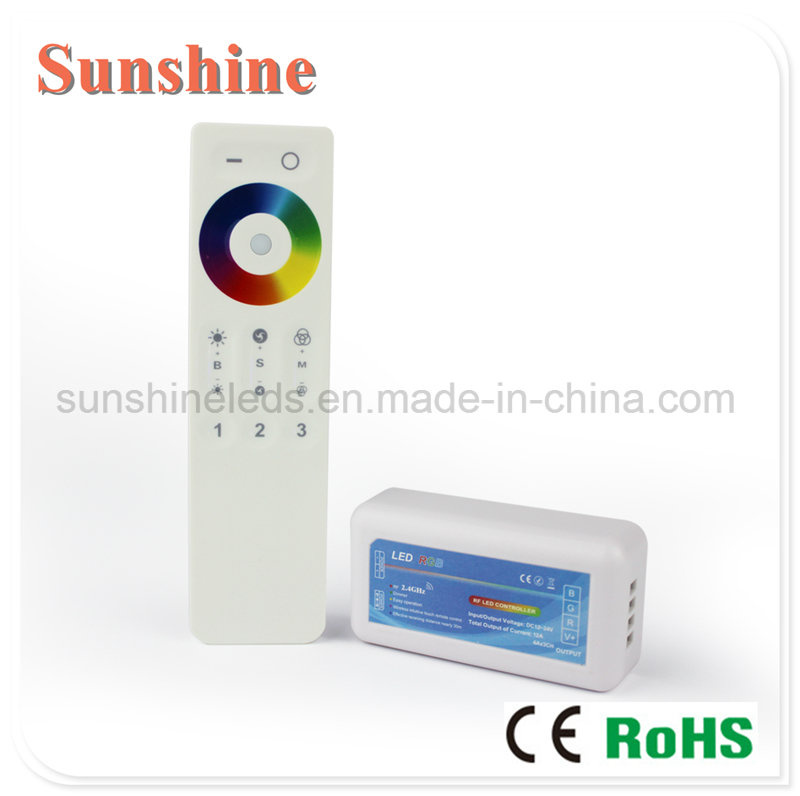

Touch Screen Wireless/RF RGB 3 Channels LED Controller

Name: Touch Screen Wireless/RF RGB 3 Channels LED Controller
Brand: all-electronics-online.com
SKU: 825193175
Availability: InStock
Rating: 4.9 (80 reviews)

Price:	US $ 10/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SU-TOUCH-RGB2
Working Temperature:	-20-55
Output:	3channels
Connection Mode:	Common Anode
Controller Size:	L85×w45×h23mm
Remote Size:	L150×w40×h13mm
Output Current:	<4A/CH
Output Power:	12V<144W, 24V <288W
Warranty:	2 Years
Lifespan:	50,000h
Application:	LED Products
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	<50m
Material:	Plastic
Battery Type:	AAA Battery
Voltage:	DC12-24V

Product Description

Product Description
This 2.4G 3 zone Touch Remote RGB controller is human touch type and key control type universal RGB controller. Adopting the most advance PWM control technology, can control all kinds of 4 channel (common anode) and 5 wires LED lights. Such as LED module, led strip, led control box, led source,etc. This controller is easy to connected with wires and very simple to use. It is with synchronous indicating light and power off memory function. User can choose different changing mode, adjust the speed and brightness,turn on/off by the remote controlling. User can get flash effect, strobe effect, fade effect etc according to their demand .

Technical Parameters
Working temperature:-20~55ºC
Supply voltage:DC12V~24V
Output:3 Channel
Connection mode:Common anode
Controller size:L85×W45×H23mm
Remote size:L150×W40×H13mm
Static power consumption:<1W
Output current:<4A/CH
Output power:12V:<144W;24V:<288W

Remote Function introduction:
1,Use the 2.4G frequency RF remote control, no need to make the remote direct to the controller, and the RF remote can control it across obstacles.
2,In the open area remote control distance is about 30 meters.
3,Adopt touch control remote, slightly touch the color wheel can switch the light color easily and smoothly

Press ON button to start, then press mode button can switch the 9 modes as following:

Number	Mode	Adjustable state
1	3 colors jumping change	Brightness is not adjustable, speed is adjustable
2	3 Colors fade in and fade out
3	Seven colorjumping change
4	Seven color fade
5	White color fade in and fade out
6	Red color fade in and fade out+flash 3 times
7	Green color fade in and fade out+flash 3 times
8	Blue color fade in and fade out+flash 3 times
9	Auto-cycle mode

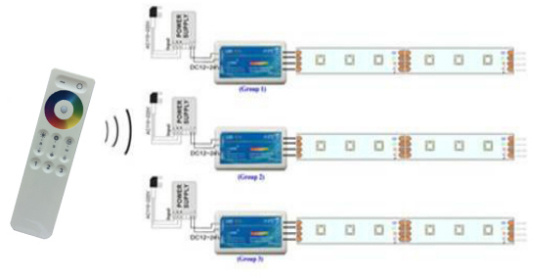

Typical Application

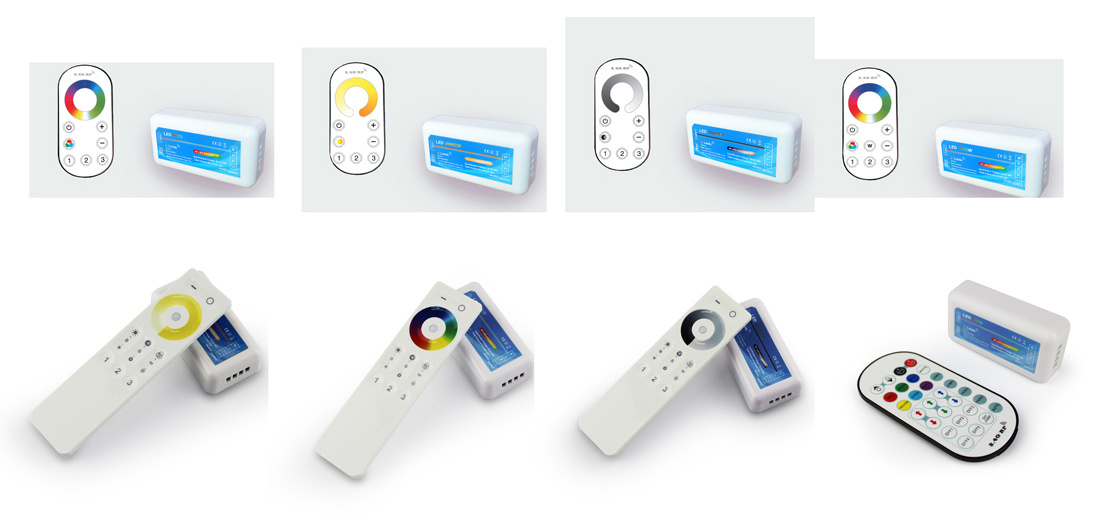

More new LED Controller :
