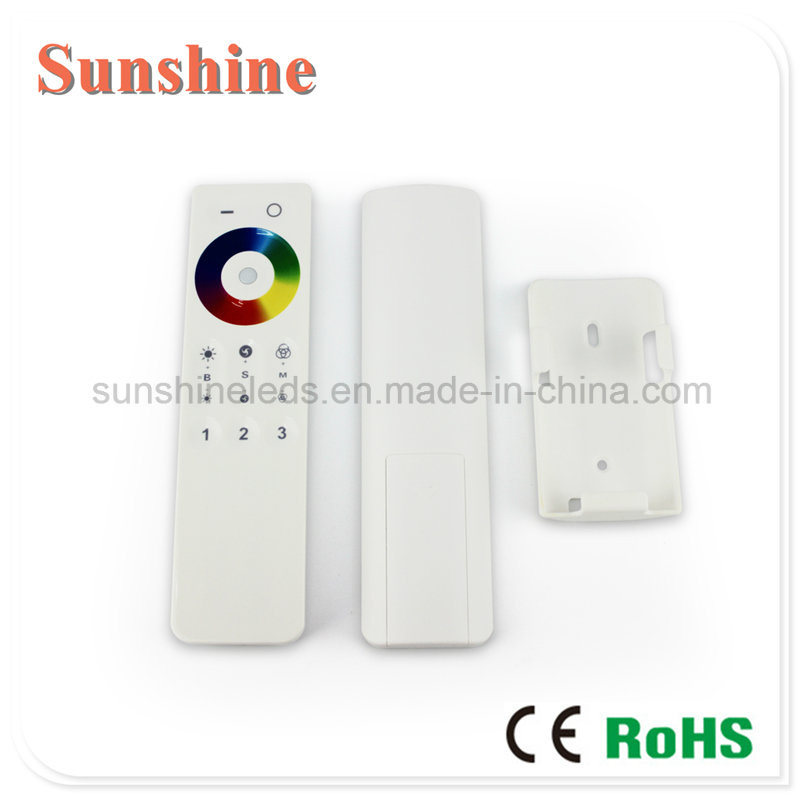

Touch Screen Wireless/RF RGBW 4 Channels LED Controller
| Price: |
US $ 10/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
SU-TOUCH-RGBW2 |
| Working Temperature: |
-20-55 |
| Output: |
4 Channels |
| Connection Mode: |
Common Anode |
| Controller Size: |
L85×w45×h23mm |
| Remote Size: |
L150×w40×h13mm |
| Output Current: |
<4A/CH |
| Output Power: |
12V<144W, 24V <288W |
| Warranty: |
2 Years |
| Lifespan: |
50,000h |
| Application: |
LED Products |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
<50m |
| Material: |
Plastic |
| Battery Type: |
AAA Battery |
| Voltage: |
DC12-24V |
Product Description
Product DescriptionThis 2.4G 3 zone Touch Remote RGBW controller is human touch type and key control type universal RGB controller. Adopting the most advance PWM control technology, can control all kinds of 4 channel (common anode) and 5 wires LED lights. Such as LED module, led strip, led control box, led source,etc. This controller is easy to connected with wires and very simple to use. It is with synchronous indicating light and power off memory function. User can choose different changing mode, adjust the speed and brightness,turn on/off by the remote controlling. User can get flash effect, strobe effect, fade effect etc according to their demand . Technical ParametersWorking temperature:-20~55ºCSupply voltage:DC12V~24VOutput:4 ChannelConnection mode:Common anodeController size:L85×W45×H23mmRemote size:L150×W40×H13mmStatic power consumption:<1WOutput current:<4A/CHOutput power:12V:<144W;24V:<288WRemote Function introduction:1,Use the 2.4G frequency RF remote control, no need to make the remote direct to the controller, and the RF remote can control it across obstacles.2,In the open area remote control distance is about 30 meters.3,Adopt touch control remote, slightly touch the color wheel can switch the light color easily and smoothlyOperation method:1,Connect the load wire at first, following by the power wire; Please make sure no short circuit between connecting wire before you turn on the power;2,Only the ON button is effective in the OFF station, press the power button for the first time then controller will enter to the last mode before turn off the controller last time (memory off function).3,Press ON button to start, then press mode button can switch the 9 modes as following:| Number | Mode | Adjustable state |
| 1 | 3 colors jumping change |
Brightness is not adjustable, speed is adjustable
|
| 2 | 3 Colors fade in and fade out |
| 3 | Seven color jumping change |
| 4 | Seven Colors Flash |
| 5 | Seven color fade |
| 6 | 7 Colors fade in and fade out |
| 7 | White color fade in and fade out |
| 8 | Red color fade in and fade out+flash 3 times |
| 9 | Green color fade in and fade out+flash 3 times |
| 10 | Blue color fade in and fade out+flash 3 times |
| 11 | White color fade in and fade out+flash 3 times |
| 12 | Auto-cycle mode |

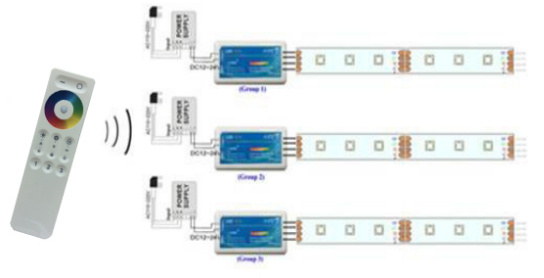

Typical Application
