2 Core FTTH Drop Optical Fiber Communication Patch Cord Pigtail

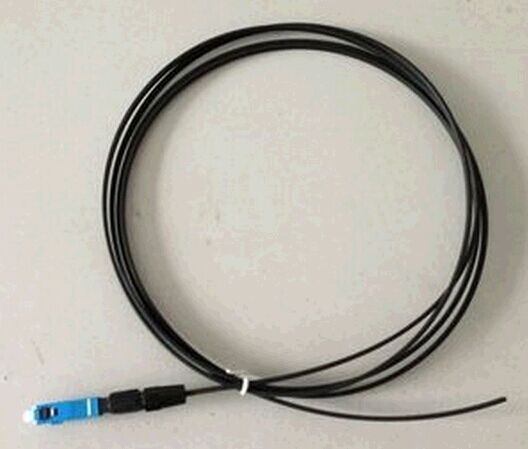

Name: 2 Core FTTH Drop Optical Fiber Communication Patch Cord Pigtail
Brand: all-electronics-online.com
SKU: 828609245
Availability: InStock
Rating: 4.3 (51 reviews)

Price:	US $ 0.15-0.23/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FTTH
Length:	1m,2m,3m 5m, or Others
Cables Colour:	12 Colors
Durability:	>1000times
Stability:	Huigh
Fiber Type:	Single or Multiply
Ferrule End-Face:	PC ABC Upc
Insertion Losss:	Low
Application:	Network
Connection Structure:	SC
Certification:	UL
Type:	E2000
Brand:	Tti

Product Description

2 Core FTTH Drop Optical fiber Communication Patch cord Pigtail

Features:
100% test before shipment
Low insertion loss and high return loss
Serialized & Individual Test Records
Meets ROHS and Bell core GR 326-core standards
Custom Configurations Available at No Extra Charge
Available in fiber bunch, ribbon fan-out, pigtail available

Applications:
Optical access network
Data processing networks
Premise installations
Telecommunication networks
Fiber optic communication networks
CATV, LAN, WAN, Test &Measurement
Specification:

Parameter		Single Mode				Multi Mode
Basic	Fiber connector	FC, SC, LC, ST, MU, MTRJ, MPO,e2000
	Ferrule End-face	PC	UPC	APC		UPC
	Insertion Loss	≤0.2dB	≤0.2dB	≤0.3dB		≤0.3bB
	Return Loss	≥50dB	≥55dB	≥60dB		≥35dB
	Ceramic Ferrule Specification	125.5um concentricity deviations:<=1um				127um concentricity deviations:<=3um
	Suitable Fiber	9/125um				50/125um,62.5/125um
End-face Geometry	Radius of Curvature	7~25mm		5~12mm	N/A
	Fiber Protrusion	≤50nm		≤100nm	N/A
	Fiber Under Cut	≤100nm		≤100nm	N/A
	Apex offset	≤50um
Mechanical	Exchangeability	≤0.2dB
	Salt Spray	≤0.1dB
	Drop	≤0.2dB(1.5M, 5 drops)
	Vibration	IL ≤0.2dB(550Hz, 1.5mm)
	Repeatability	≤ 0.1dB(1000 times)
	Durability	> 1000 times
	Operating Temperature	-40°C ~ +85°C

Shenzhen TRT Fiber Tech. Co., Ltd is specialized in R&D, manufacturing and marketing of fiber optic such as fiber optic cable, fiber optic patch cord/jumper, fiber pigtail, fiber connector, fiber adapter, fiber attenuator, fiber patch panel, ODF, fiber splice closure and other related fiber products.

With a powerful R&D team, TRT Fiber is able to manufacture products according to customer's specifications and requests, even with customized raw materials. We not only offer OEM service, but also help many partners from all over the world to win in the market with professional technical support, excellent product solution, competitive prices, fast delivery and good service. We ensure every piece of our fiber optic products is with excellent performance and appearance.

TRT has been putting a lot of investments to keep pace with fiber optic industry standard. With high quality raw materials, advanced manufacturing equipments and highly skilled workers, we ensure every piece of our fiber optic products is with excellent performance and appearance.

Welcome to be TRT business partners, we are sure to bring you more profits. Thank you.
