2 Phase 1.8 Degree 3D Printer NEMA 17 Stepper Motor

Name: 2 Phase 1.8 Degree 3D Printer NEMA 17 Stepper Motor
Brand: all-electronics-online.com
SKU: 835132735
Availability: InStock
Rating: 4.7 (28 reviews)

Price:	US $ 4-8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	42BYGH450-40-1203
Number Of Stator:	Two-Phase
Type:	Electromechanical
Function:	Motor
Brand:	Jianghua

Product Description

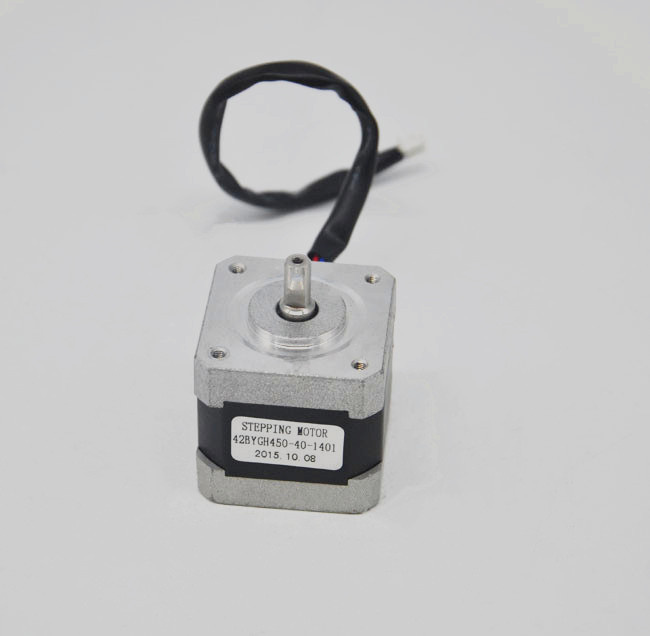

12V NEMA 17 Hybrid Stepping Motor For 42BYGH450-40-1203

Product Description

1.8degree Size 42mm Hybrid stepper motor. 3D Printer stepper motor

42mm size stepper motor, NEMA17 stepping motor,

Small stepping motors, 2 phase42mm stepper motor, Stepper motor 42mm size

Hybrid Stepper Motors
1) CE and ROHS approved
2) We can develop customer design version

Item	Specifications
Step Angle	1.8^.
Step Angle Accuracy	±5% (full step, no load)
Resistance Accuracy	±10%
Inductance Accuracy	±20%
Temperature Rise	80^.C Max.(rated current,2 phase on)
Ambient Temperature	-20^.C~+50^.C
Insulation Resistance	100MΩMin. ,500VDC
Dielectric Strength	500VAC for one minute
Shaft Radial Play	0.02Max. (450 g-load)
Shaft Axial Play	0.08Max. (450 g-load)
Max. radial force	75N (20mm from the flange)
Max. axial force	15N

Specifications:

Model No.	Step distance	Motor Length	Current /Phase	Resistance /Phase	Holding Torque	voltage	Rotor Inertia	Positioning torque	Inductance	# of Leads	weight
42BYGH450-40-1203	1.8	40mm	1.7A	1.5Ω	40N.cm	3v	54g.cm2	2.2N.cm	2.8MH	4	220g

Changzhou JiangHua electric appliance Co., Ltd is located in changzhou qi shuyan, north near Shanghai-nanjing expressway, south meets the 312 national highway, the traffic is very convenient.

Our company specializing in the production of stepping motor with many years of production experience, the product in Beijing, Shanghai, zhejiang and southern region is very popular in the customer high praise. With advanced production equipment, precision testing equipment, exquisite production process.

The company pays attention to the enterprise image, the new products constantly, breed is expanding, continuous improvement technology. The company will continue to with more excellent professionalism dedicated to our machinery equipment industry.

The company continued the effective operation of ISO9001 quality management system, excellent production equipment and advanced production processes, complete test means, perfect service system, will provide our customers with excellent products and services.

Our company carries out the "business-oriented to the letter, walk the world shengwalunding paying court" as our tenet, following the mutual reciprocity and mutual benefit spirit and their clients to establish long-term friendly cooperative partnership. Today's efforts, tomorrow's success, let us cooperate, create together fine tomorrow!
