CHANGZHOU JKONGMOTOR CO., LTD. >> 2 Phase 0.39n. M Hybrid Stepper Motors NEMA23 57hs41-1006 1.8 Degree Textile Machinern

2 Phase 0.39n. M Hybrid Stepper Motors NEMA23 57hs41-1006 1.8 Degree Textile Machinern

2 Phase 0.39n. M Hybrid Stepper Motors NEMA23 57hs41-1006 1.8 Degree Textile Machinern
Price: US $ 7.1-7.8/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: 57HS41-1006
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Step Angel: 1.8 Degree
Holding Torque: 0.39n.M
Length: 41mm
Phase: 2 Phase
Type: Electromechanical
Number Of Stator: Two-Phase
Excitation Mode: HB-Hybrid

Product Description



2 Phase 0.39N.M Hybrid Stepper Motors Nema23 1.8 Degree  Textile Machinery





  1. Nema 23 Hybrid Stepper Motor
  2. Model Number: JK57HS41-1006
  3. Phase: 2 Phase
  4. Lead Wire (No.): 6 wire
  5. Structure: Hybrid
  6. Step Angle: 1.8°
  7. Motor Height: 57 mm
  8. Holding Torque: 0.39 N.m
  9. Speed: Low / High speed
  10. Certification: CE, ROHS, ISO9001
  11. Shape: Square
  12. Applications:Use for robots stepper motor, electronic automatic equipment stepping motor , medical instrument stepping motor,advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.Cnc router stepper motor.



Desciption:

NEMA23 stepping motor , 57mm square stepper motor .

0.39N.m holding  torque   57HS41-1006

Applications:

Use for robots stepper motor, electronic automatic equipment stepping motor , medical instrument stepping motor,advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.

Cnc router stepper motor.

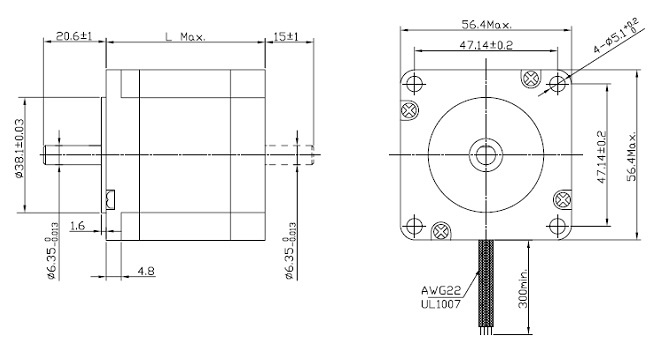

Dimensions:

(Unit=mm)

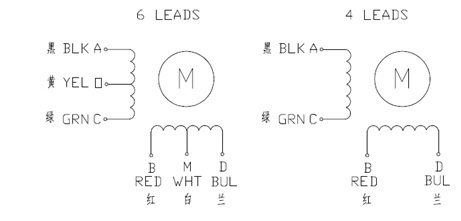

Wiring Diagram:


Matching Stepper motor Driver: JK1545, JK0230


About our manufacturer:
 We are a professional manufacturer for Stepper motor , Stepper driver, BLDC motor and DC motor. we can supply OEM service.
Our products all with CE and ROHS.
Welcome you visit our company Changzhou Jingkong Motor&Electric Appliance Co.,Ltd




Model No. Step Angle Motor Length Current
/Phase
Resistance
/Phase
Inductance
/Phase
Holding Torque # of Leads Detent Torque Rotor Inertia Mass
( °) (L)mm A Ω mH N.m No. g.cm g.cm Kg
JK57HS41-1006 1.8 41 1 5.2 5.5 0.39 6 250 150 0.47
JK57HS41-2006 1.8 41 2 1.4 1.4 0.39 6 250 150 0.47
JK57HS41-3006 1.8 41 3 0.63 0.6 0.39 6 250 150 0.47
JK57HS41-2804 1.8 41 2.8 0.7 1.4 0.55 4 250 150 0.47
JK57HS51-1006 1.8 51 1 6.6 8.2 0.72 6 300 230 0.59
JK57HS51-2006 1.8 51 2 1.65 2.2 0.72 6 300 230 0.59
JK57HS51-3006 1.8 51 3 0.74 0.9 0.72 6 300 230 0.59
JK57HS51-2804 1.8 51 2.8 0.83 2.2 1.01 4 350 280 0.68
JK57HS56-1006 1.8 56 1 7.4 10 0.9 6 350 280 0.68
JK57HS56-2006 1.8 56 2 1.8 2.5 0.9 6 350 280 0.68
JK57HS56-3006 1.8 56 3 0.75 1.1 0.9 6 350 280 0.68
JK57HS56-2804 1.8 56 2.8 0.9 2.5 1.26 4 350 280 0.68
JK57HS76-1006 1.8 76 1 8.6 14 1.35 6 600 440 1.1
JK57HS76-2006 1.8 76 2 2.25 3.6 1.35 6 600 440 1.1
JK57HS76-3006 1.8 76 3 1 1.6 1.35 6 600 440 1.1
JK57HS76-2804 1.8 76 2.8 1.13 3.6 1.89 4 600 440 1.1
JK57HS82-3004 1.8 82 3.0 1.2 4 2.2 4 1000 600 1.2
JK57HS82-5004 1.8 82 5 0.6 1.5 2.2 4 1000 600 1.2
JK57HS112-3004 1.8 112 3.0 1.6 6.8 2.8 4 1200 800 1.4
JK57HS112-4204 1.8 112 4.2 0.9 3.8 2.8 4 1200 800 1.4

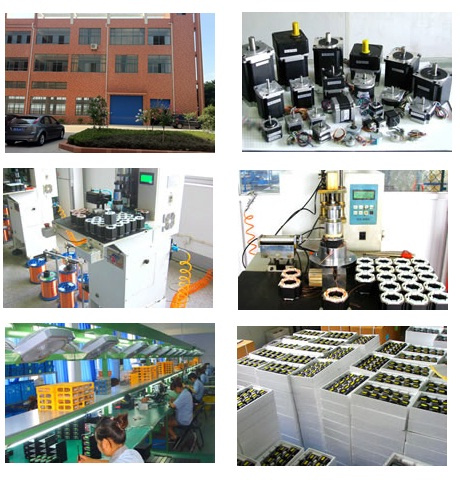

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
