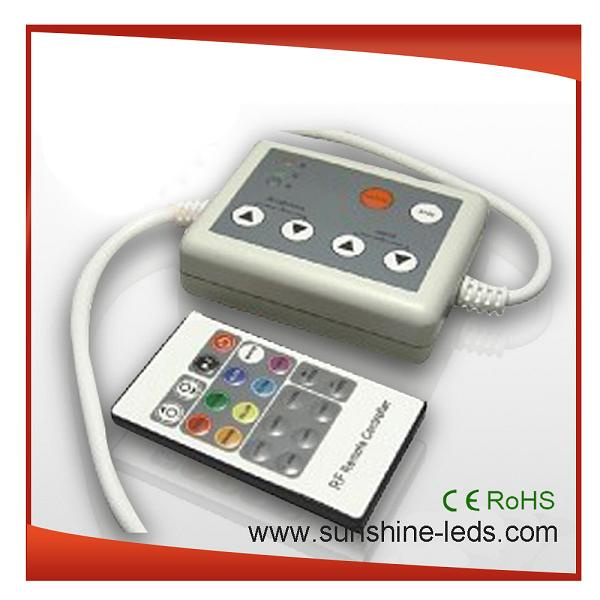

20-Key RF/RGB LED Controller (SU-CON-RF20B-3CH-1LV)

Prod Model:	SU-CON-RF20B-3CH
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output:	3 Channels
Supply Voltage:	DC5V, 12V, 24V
Connectiing Mode:	Common Anode
Output Current:	<4 a
Output Power:	5 V: <60W, 12V: <144W, 24V: <288W
Certificate:	CE&RoHS
Warranty:	2 Years
Sample Date:	3days
Brand:	Sunshine
Certificates:	CE
Signal Transmission:	RF Remote Control
Type:	Button
Application:	LED Lighting

Product Description

20-Key RF/RGB LED Controller with CE

Rgb Led Controller, Rf Controller, Led Controller, Rf Led Controller, Led Strip Controller, Rgb Led Strip Light Controller, Dmx Controller, Controller, Light Controller, Led Rgb Controller, Led Dmx Controller, Led Control, Lighting Controller, Dmx512 Controller, Remote Control Wireless Led Lighting, Led Controller Wifi, Led Remote Control, Dmx Rgb Led Controller, Led Rgb Sound Controller, rgb controller
20-Key RF LED Controller is a RGB wireless remote LED controller. This LED controller is designed for LED strip light and other LED products.

Summarization
RF controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; At the same time, it has many advantages such as convenient connection, simplicity to use and others. According to actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.

Technical parameters
1. Working temperature: -20-60 degrees
2. Supply voltage: DC5V, 12V, 18V, 24V < Optional> (for orders specify voltage)
3. Output: 3 channels
4. Transmission/receiving frequency: 433MHz
5. Remote distance: 10~15M
6. Controller dimension: L128 * W64 * H24 mm
7. Remote dimension: L85*W52*H7 MM
8. Packing size: L145 * W95 * H50mm
9. Net weight: 165g
10. Gross weight: 205g
11. Static power consumption: < 1 W
12. Output current: < 4 A (each channel)
13. Output power: 5 V: < 60W, 12V: < 144W, 24V: < 288W

Direction for use
1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
