| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
215*115*50 Mm |
| Output Voltage: |
5V-48V |
| Output Frenquency: |
47~63Hz |
| Protection: |
Short-Circuit and Overload Protection |
| Output Current: |
0-60A |
| N.W.: |
1.25kgs |
| Overload Protection: |
105%~150% |
| Output Type: |
Single |
| Output Power: |
101 - 200W |
| Input Voltage: |
Full Range |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Warranty: |
2 Years |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
CE |
Product Description

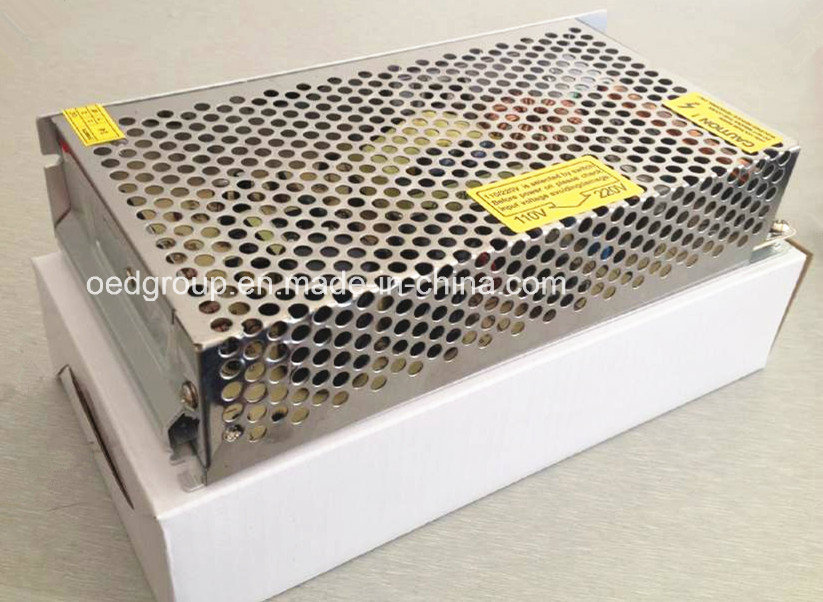

200W 12V 17A LED Switching Power Supply, 12vdc power supply
OED-S200-12V
Specifications
1. We have 7 years produce and export experience
2.12 hours response service
3. CE certificate
SWITCH POWER SUPPLY SINGLE TYPE S SERIES 200W
Features
1. Low price and high reliable.
2.105 `C output capacitor
3. AC input power suitable for the world
4. High efficiency and how operation temperature.
5. Soft-start current can reduce the AC input impact effecticly.
6. With short-circuit and overload protection.
7. Compact size, light weight.
8.100% full-load buming test.
9. Installed with EMI filter, minmum wave.
10. Single Output ATX 100W 12V Switching Power Supply
Please Note:
1. The testing condition for the parameter above is: 230VAC input, rated load, 25° C 70%Rh, Humidity.
2. Error, include the setting error, line stability and load stability.
3. Wave test: Adopting "A12" double wire for 20MHZ, and 0.1uF&uF capacitor short-circuit for interrupting.
4. Inlet Voltage Stability test: When is over load, the lowest voltage of inler is representative to the highest voltage.
5. Load stability test: The load is from 0% to 100%, others 60%.
|
NES-200 series switching power supply |
|
Features : |
|
|
|
|
|
|
|
|
|
|
AC input range selectable by switch |
|
|
100% full load burn-in test |
|
Protections: Short circuit / Overload / Over voltage / Over temperature |
|
LED indicator for power on |
|
Forced air cooling by build-in DC fan |
|
|
Fixed switching frequency at 90 KHz |
|
Withstand 300VAC surge input for 5 seconds. |
|
|
Low cost, high reliability, high efficiency and long life |
|
Bulit-in constant current limting circuit |
|
2 years warranty |
|
|
|
|
|
|
|
|
|
|
|
|
|
SPECIFICATION |
|
|
|
|
|
|
|
|
|
|
MODEL |
NES-200-3.3 |
NES-200-5 |
NES-200-7.5 |
NES-200-12 |
NES-200-15 |
NES-200-24 |
NES-200-27 |
NES-200-36 |
NES-200-48 |
|
OUTPUT |
DC VOLTAGE |
3.3 V |
5V |
7.5V |
12V |
15V |
24V |
27V |
36V |
48V |
|
RATED CURRENT |
40A |
40A |
27A |
17A |
14A |
8.8A |
7.8A |
5.9A |
4.4A |
|
CURRENT RANGE |
0 ~ 40A |
0 ~ 40A |
0 ~ 27A |
0 ~ 17A |
0 ~ 14A |
0 ~ 8.8A |
0 ~ 7.8A |
0 ~ 5.9A |
0 ~ 4.4A |
|
RATED POWER |
132W |
200W |
202.5W |
204W |
210W |
211.2W |
210.6W |
212.4W |
211.2.W |
|
RIPPLE & NOISE (max.) Note.2 |
150mVp-p |
150mVp-p |
150mVp-p |
150mVp-p |
150mVp-p |
150mVp-p |
200mVp-p |
240mVp-p |
240mVp-p |
|
VOLTAGE ADJ. RANGE |
2.97 ~ 3.7V |
4.6 ~ 5.6V |
6 ~ 9V |
10 ~ 13.5V |
13.5~ 18.5V |
20~ 26.4V |
26 ~ 32V |
32~ 40V |
41 ~ 56V |
|
VOLTAGE TOLERANCE Note.3 |
±2.0% |
±2.0% |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
LINE REGULATION Note.4 |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
LOAD REGULATION Note.5 |
±1.5% |
±1.0% |
±1.0% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
SETUP, RISE TIME |
1000ms, 50ms/230VAC 1000ms, 20ms/115VAC at full load |
|
HOLD UP TIME (Typ.) |
20ms/230VAC 16ms/115VAC at full load |
|
INPUT |
VOLTAGE RANGE Note 7 |
90 ~ 132VAC / 180 ~ 264VAC selected by switch 254 ~ 373VDC |
|
FREQUENCY RANGE |
47 ~ 63Hz |
|
EFFICIENCY (Typ.) |
75% |
79% |
82% |
85% |
85% |
87% |
88% |
89% |
89% |
|
AC CURRENT (Typ.) |
4.5A/115VAC 2.5A/230VAC |
|
INRUSH CURRENT (Typ.) |
40A/115VAC 55A/230VAC |
|
LEAKAGE CURRENT |
<3.5mA / 240VAC |
|
PROTECTION |
OVERLOAD |
105~ 150% rated output power |
|
Protection type :Constant current limiting, recovers automatically after after fault condition is recover |
|
OVER VOLTAGE |
3.8-4.9V |
5.75 ~ 7.0V |
9.4 ~ 10.9V |
13.8~ 16.2V |
18 ~ 21V |
27.6~ 32.4V |
33.7 ~ 39.2V |
41.4~ 46.8V |
57.6~ 67.2V |
|
Protection type : Shut down O/P voltage, re-power on to recover |
|
OVER TEMPERATURE |
95°C±5°C (3.3V) , 100°C±5°C(5V) , 90°C±5°C(7.5V) ,85°C±5°C (12-24V),80°C±5°C (27-36V) 75°C±5°C (48V),(TSW1) Detect on case |
|
Protection type : Shut down O/P voltage, recovers automatically after temperature is gose down |
|
ENVIRONMENT |
WORKING TEMP. |
-20 + 50 ºC (Refer to load derating curve"") |
|
WORKING HUMIDITY |
20 ~ 90% RH non-condensing C34 |
|
STORAGE TEMP., HUMIDITY |
-40 ~ +85 ºC , 10 ~ 95% RH |
|
TEMP. COEFFICIENT |
± 0.03% ºC / (0 ~ 50 ºC ) |
|
VIBRATION |
10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes |
|
SAFETY & EMC Note 8 |
WITHSTAND VOLTAGE |
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
|
ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 ºC / 70% RH |
|
OTHERS |
MTBF |
271.9Khrs min. MIL-HDBK-217F (25 ºC) |
|
DIMENSION |
215*115*50mm (L*W*H) |
|
NOTE |
1. All parameters not specially mentioned are measured at 230VAC input, rated load and 25 ºC of ambient temperature. |
|
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12 twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. |
|
3.Tolerance: includes set up tolerance, line regulation and load regulation. |
4.Please connect positive pole of input voltage to mark "L" of the terminal block and connect negative pole of input voltage with mark "N" of the terminal block. using DC voltage for input voltage.
|
