| Prod Model: |
OED-S150-12V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
199*110*50mm |
| Output Voltage: |
12V |
| Output Frenquency: |
47~63Hz |
| Protection: |
Short-Circuit and Overload Protection |
| Output Current: |
12.5A |
| N.W.: |
0.8kgs |
| Overload Protection: |
105%~150% |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
101 - 200W |
| Input Voltage: |
Full Range |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
CE |
Product Description

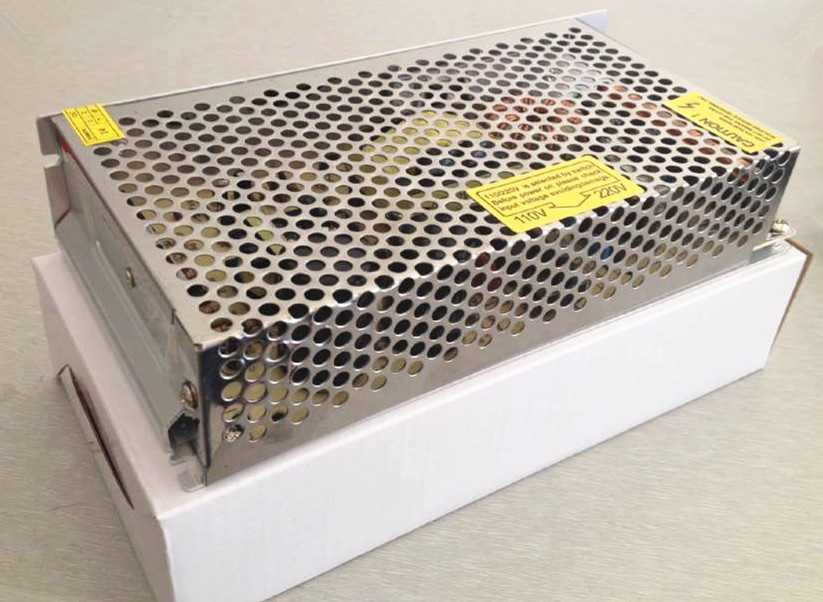

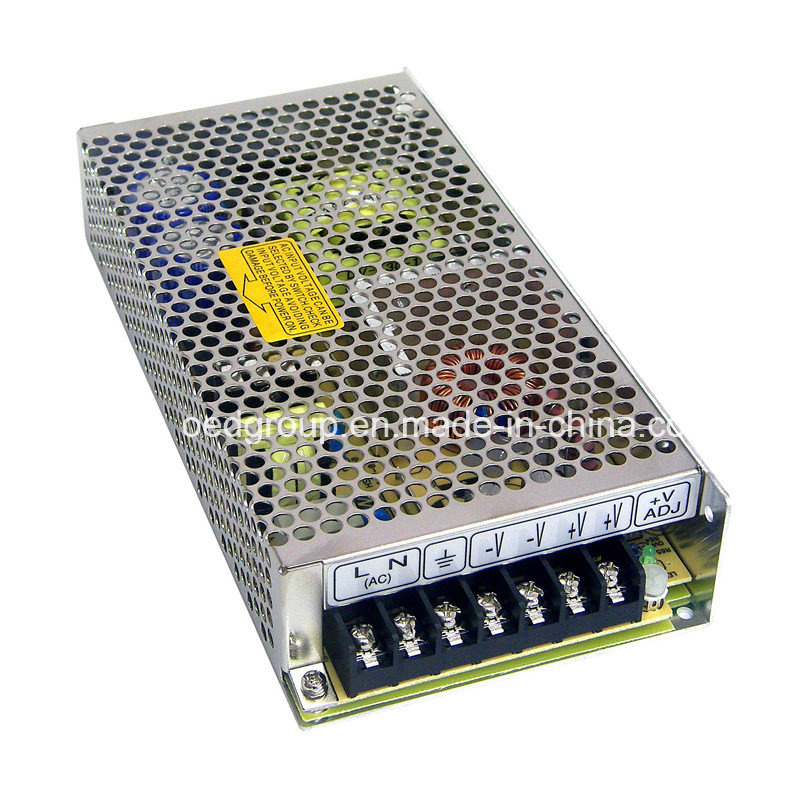

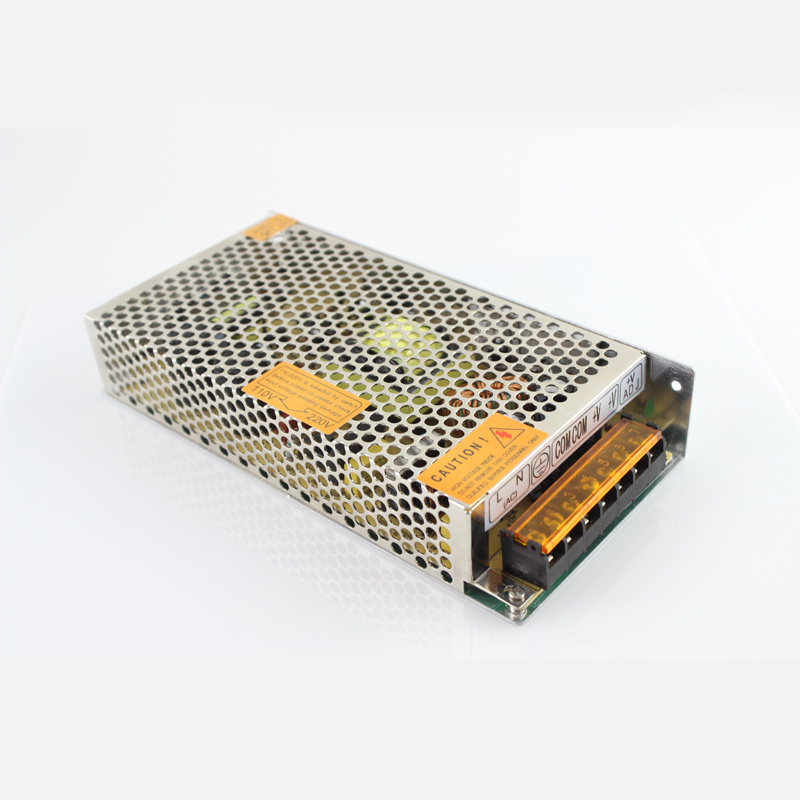

Single output ac / dc 12v Power Supply 150W with net caseOED-S150-12V
Specifications
1. we have 7 years produce and export experience
2. 12 hours response service
3. CE certificate
SWITCH POWER SUPPLY SINGLE TYPE S SERIES 150W
Features1. Low price and high reliable.
2. 105 `C output capacitor
3. AC input power suitable for the world
4. High efficiency and how operation temperature.
5. Soft-start current can reduce the AC input impact effecticly.
6. With short-circuit and overload protection.
7. Compact size, light weight.
8. 100% full-load buming test.
9. Installed with EMI filter, minmum wave.
10. Single Output ATX 100W 12V Switching Power Supply
Please Note:1. The testing condition for the parameter above is: 230VAC input, rated load, 25°C 70%Rh, Humidity.
2. Error, include the setting error, line stability and load stability.
3. Wave test: adopting "A12" double wire for 20MHZ, and 0.1uF&uF capacitor short-circuit for interrupting.
4. Inlet Voltage Stability test: when is over load, the lowest voltage of inler is representative to the highest voltage.
5. Load stability test: the load is from 0% to 100%, others 60%.
| Model Specification | S-150-5V | S-150-7.5V | S-150-9V | S-150-12V | S-150-13.5V | S-150-15V | S-150-24V | S-150-27V | S-150-48V |
| DC Output Voltage | 5V | 7.5V | 9V | 12V | 13.5V | 15V | 24V | 27V | 48V |
| Iutput Voltage Error | ± 2% | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% |
| Rated Output Current | 30A | 20A | 16.7A | 12.5A | 11.2A | 10A | 6.5A | 5.6A | 3.2A |
| Output Current Range | 0-30A | 0-20A | 0-16.7A | 0-12.5A | 0-11.2A | 0-10A | 0-6.5A | 0-5.6A | 0-3.2A |
| Tripple and Noise | 150mVp-p | 150mVp-p | 180mVp-p | 180mVp-p | 180mVp-p | 180mVp-p | 240mVp-p | 240mVp-p | 240mVp-p |
| Iniet Stability | ± 0.5% | ± 0.5% | ± 0.3% | ± 0.3% | ± 0.3% | ± 0.3% | ± 0.2% | ± 0.2% | ± 0.2% |
| Tolerance Voltage | ± 0.5% | ± 0.5% | ± 0.3% | ± 0.3% | ± 0.3% | ± 0.3% | ± 0.2% | ± 0.2% | ± 0.2% |
| DC Output Power | 150W | 150W | 150.3W | 150W | 151.2W | 150W | 156W | 151.2W | 153.6W |
| Efficiency | 78% | 80% | 80% | 82% | 83% | 84% | 85% | 86% | 87% |
| Adjustable Range for DC Voltage | 4.5-5.5V | 6-8.3V | 8-10.4V | 10.6-13.2V | 12-15V | 13.5-16.5V | 21-28V | 24-30V | 43-53V |
| AC Input Voltage Range | 85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC |
| Input Current | 3.2A/115V 1.6A/230V |
| AC Inrush Current | Cold-Start Current: 35A/115V, 60A/230V |
| Leakage Current | <3.5mA/240VAC |
| Overload Protection | 105%~150% Type: Cut Output, Reset: Auto Recovery |
| Over Voltage Protection | ^^^^ |
| High Temperature Protection | ^^^^ |
| Temperature Coefficient | ± 0.03% /°C (0~50°C) |
| Start, Rise, Hold time | 100ms, 50ms, 20ms |
| Vibration | 10~500Hz, 2G 10min,/1cycle, a total of 60 minutes, Each axes |
| Withstand Voltage | Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC |
| Isolation Resistance | Input and Output Intermal: Input and Enclosute, Output and Enclosure: 500VDC/100M Ohms |
| Working Temperature and Humidity | `-10°C~+60°C (Refer to Output Derating Cutve), 20%~90%RH |
| Storage Temperature and Humidity | `20°C~+85°C, 10%~95%RH |
| Overall Dimension | 199*110*50mm |
| Weight | 0.8kgs |
| Safety Standards | Meet UL 1012 requirement (Not apply for the mark) |
| EMC Standards | Meet FCC Part 15J Conduction class B |
