| Prod Model: |
OED-S50-12V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
159*98*38 Mm |
| Output Voltage: |
12V |
| Output Frenquency: |
47~63Hz |
| Protection: |
Short-Circuit and Overload Protection |
| Output Current: |
4.2A |
| N.W.: |
0.4kgs |
| Overload Protection: |
105%~150% |
| Output Type: |
Single |
| Output Power: |
1 - 50W |
| Input Voltage: |
Full Range |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Warranty: |
1 Year |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
CE |
Product Description

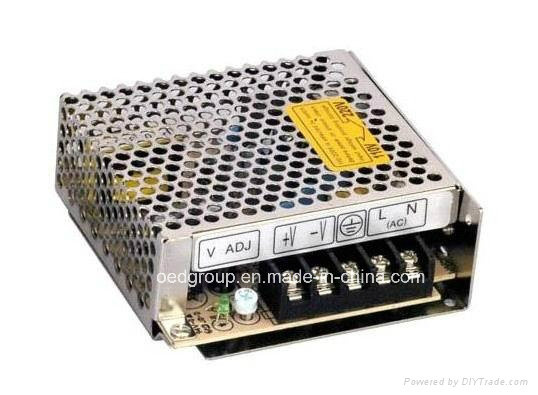

Single output 50w switching power supply 12v 4.2a
OED-S50-12V
Specifications
1. We have 7 years produce and export experience
2.12 hours response service
3. CE certificate
SWITCH POWER SUPPLY SINGLE TYPE S SERIES 50W
Features
1. Low price and high reliable.
2.105 `C output capacitor
3. AC input power suitable for the world
4. High efficiency and how operation temperature.
5. Soft-start current can reduce the AC input impact effecticly.
6. With short-circuit and overload protection.
7. Compact size, light weight.
8.100% full-load buming test.
9. Installed with EMI filter, minmum wave.
10. Single Output ATX 50W 12V Switching Power Supply
Please Note:
1. The testing condition for the parameter above is: 230VAC input, rated load, 25° C 70%Rh, Humidity.
2. Error, include the setting error, line stability and load stability.
3. Wave test: Adopting "A12" double wire for 20MHZ, and 0.1uF&uF capacitor short-circuit for interrupting.
4. Inlet Voltage Stability test: When is over load, the lowest voltage of inler is representative to the highest voltage.
5. Load stability test: The load is from 0% to 100%, others 60%.
|
Model Specification |
S-50-5V |
S-50-12V |
S-50-15V |
S-50-24V |
|
DC Output Voltage |
5V |
12V |
15V |
24V |
|
Iutput Voltage Error |
± 2% |
± 1% |
± 1% |
± 1% |
|
Rated Output Current |
10A |
4.2A |
3.4A |
2.1A |
|
Output Current Range |
0-10A |
0-4.2A |
0-3.4A |
0-2.1A |
|
Tripple and Noise |
75mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
|
Iniet Stability |
± 0.5% |
± 0.5% |
± 0.5% |
± 0.5% |
|
Tolerance Voltage |
± 1% |
± 0.5% |
± 0.5% |
± 0.5% |
|
DC Output Power |
50W |
50.4W |
51W |
50.4W |
|
Efficiency |
71% |
78% |
78% |
82% |
|
Adjustable Range for DC Voltage |
`+10, -5% |
± 10% |
± 10% |
± 10% |
|
AC Input Voltage Range |
85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC |
|
Input Current |
1.3A/115V 0.65A/230V |
|
AC Inrush Current |
Cold-Start Current: 18A/115V, 36A/230V |
|
Leakage Current |
<1mA/240VAC |
|
Overload Protection |
105%~150% Type: Cut Output, Reset: Auto Recovery |
|
Over Voltage Protection |
^^^^ |
|
High Temperature Protection |
^^^^ |
|
Temperature Coefficient |
± 0.03% /°C (0~50°C) |
|
Start, Rise, Hold time |
200ms, 100ms, 20ms |
|
Vibration |
10~500Hz, 2G 10min,/1cycle, a total of 60 minutes, Each axes |
|
Withstand Voltage |
Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC |
|
Isolation Resistance |
Input and Output Intermal: Input and Enclosute, Output and Enclosure: 500VDC/100M Ohms |
|
Working Temperature and Humidity |
`-10°C~+60°C (Refer to Output Derating Cutve), 20%~90%RH |
|
Storage Temperature and Humidity |
`20°C~+85°C, 10%~95%RH |
|
Overall Dimension |
159*98*38mm |
|
Weight |
0.5kgs |
|
Safety Standards |
Meet UL 1012 requirement (Not apply for the mark) |
|
EMC Standards |
Meet FCC Part 15J Conduction class B |
