2016 Hot Sale Power Inverter with Remote Control Function
| Price: |
US $ 1-200/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Color: |
Black or White |
| Input Voltage: |
120VAC/230VAC |
| Frequency: |
50Hz or 60Hz |
| Output Voltage: |
120/220/230/240VAC |
| Power Factor: |
0.9-1.0 |
| Phase: |
Single |
| Power Source: |
Electric Power & Solar Power & Wind Power |
| Waveform: |
Pure Sine Wave |
| OEM Service: |
Available |
| Warranty: |
3 Years |
Product Description

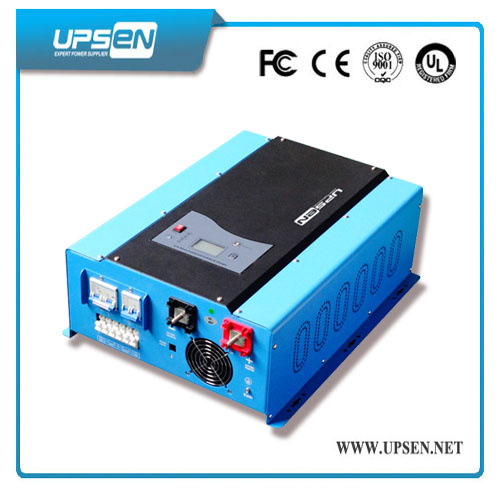

2016 Hot sale Power Inverter with Remote Control Function PS8Kw-12Kw (1ph in/1ph out)
Key Features On inverter1. High overload ability
2. Low battery voltage trip selectable, extracting max power from various batteries with different protections
3. Low quiescent current, selectable sensing cycle to reduce power consumption
On battery charge1. 3-step intelligent battery charging
2. 8 preset battery type selector plus de-sulphation for totally flat batteries
3. Powerful charge rate up to 100Amp ,selectable charging current
4. PFC(Power Factor Correction) for charger, less power consumption than conventional units
On Transfer1. Delay before transfer, extra protections for loads under generator mode
2. Input AC voltage range selectable, for different kinds of loads
3. 8 ms typical transfer time, guarantees power continuity
4. 30A/40A through current ability
5. Output voltage regulation optional
On remote control & other features1. Ability to switch the unit on/off
2. Ability to select/deselect power saver mode
3. 17 alarms/warnings, informative for easier operation and trouble-shooting
4. LCD status display available
5. RS232 communication port optionalTechnical Specification| Power Star Series |
| Model No. | PS8K | PS10K | PS12K |
| Nominal Power | 8KW | 10KW | 12KW |
| AC Input |
| Phase & Waveform | Single Phase & Pure Sine Wave |
| Voltage | 220/230/240VAC |
| Acceptable Voltage | 154-273VAC |
| Line Low Transfer | 154V |
| Line Low Return | 164V |
| Line high Transfer | 273V |
| Line high Return | 263V |
| Frequency | 50Hz or 60Hz (Auto sensing) |
| Line Low Transfer | 40Hz |
| Line high Transfer | 80Hz |
| AC Output |
| Phase & Waveform | Single Phase & Pure Sine Wave(bypass mode sync to input) |
| Voltage | 220/230/240VAC (Same as Input on bypass mode) |
| Voltage Regulation | ±10%rms(bypass mode sync to input) |
| Frequency | 50Hz or 60Hz (Auto sensing) |
| Crest Power | 3 times of rating power |
| Short Circuit Protection | Yes,shutdown |
| Power Factor | 0.9-1.0 |
| DC Input |
| Battery Voltage | 48V |
| Minimum Start Voltage | 40V |
| Low Battery Alarm | 44V |
| Low Battery Transfer | 40V |
| High Voltage Alarm | 64V |
| Max Charging Current | 75A | 85A | 100A |
| Over Charge Voltage | 62.8V |
| Transfer Efficiency |
| Line Mode | >95% |
| Battery Mode | >88% |
| power saver | Available when the load is less than 75 Watts |
| Indicators |
| 4-LED Display | Charge, Line, Inverter, Fault |
| LCD Display | Input/Output Voltage, Frequency, Battery Voltage, Load, Tempreture, Charge Current,Fault |
| Switch selector | Saving Mode is on/off when push the switch forwards/backwards, keeping it horisontal is turning the inverter off. |
|
| Audible Alarm | Sounding when the heatsink's tem is over 105ºC and shutdown after 30 seconds. |
| Protections | low battery,over charging,over temp,over load |
| Communications | RS232/RJ11(Optional) |
| Enviromental |
| Operating Environment | 0-40ºC,0-90%RH(non-condensing) |
| Audible Noise | <60dB |
| Physical |
| Net Weight(KG) | 56 | 64 | 68 |
| Dimension L*W*H(mm) | 549*450*201mm | 584*450*201mm |
| *Specification is subject to change without prior notice. |
UPSEN Competitive Advantages1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales
6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
7: Free OEM & ODM Service
8: Competitive price, quality and mature products
Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
