2018 Hot Sales T1000s DMX 512 RGB LED Controller

Name: 2018 Hot Sales T1000s DMX 512 RGB LED Controller
Brand: all-electronics-online.com
SKU: 831080315
Availability: InStock
Rating: 4.4 (96 reviews)

Price:	US $ 2.9-10/Meter
Min Order:	50/Meter
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	T1000S
CCT:	Ww/ Wh/ R/ G/B/Y/RGB/RGBW Ect Available
Lead Time:	3 Working Days
Warranty:	3years
Application:	LED Products
Type:	Button
Certification:	CE
Universal:	Universal
Material:	Metal
Battery Type:	Button Battery
Signal Transmission:	DMX 512
Transmission Distance:	2048 Pixel
Voltage:	3V-24V

Product Description

2018 HOT SALES T1000S DMX 512 RGB LED Controller

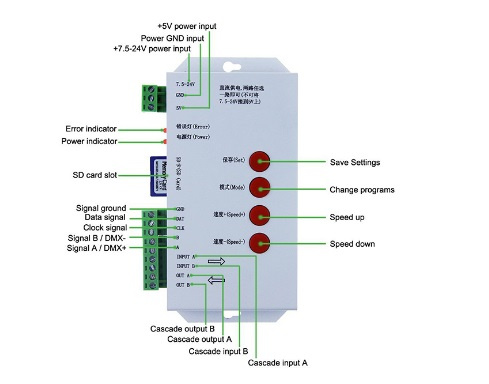

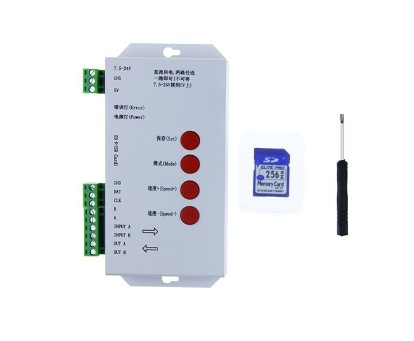

T1000S DMX 512 RGB LED Controller

Great for DIY. T-1000S is a SD card DIY programmable led pixel controller. You can edit any color modes or animation you want.
Wide compatibility. Support almost all the single line or double line smart LED chips., such as WS2811,WS2812B, WS2801, SK6812, SK6812-RGBW,WS2813, DMX512,LPD6803, LPD8806, APA102, APA104, APA105, TM1804, TM1814, TM1914, TM1913, P9813, UCS1903, and so on.
32-256 Gray level, support software Gamma correction. Support the rules and special-shaped handle.
Single-port output, can support 2048 pixels. Off-line(SD Card) control, play back content stored in the SD card.
Multiple T1000S controllers can be cascaded together and work synchronously.

Specification:

Input voltage	DC5V / DC7.5-24V
Dimensions	6.30 in x 2.95 in x 0.91 in (16.0 cm x 7.5 cm x 2.3 cm)
Weight	230g
Number of programs	16 MAX
MAX number of pixels	2048
32-256 Gray level, support software Gamma correction.
Support the rules and special-shaped handle.
Single-port output, can support 2048 pixels
Off-line(SD Card) control, play back content stored in the SD card.
T-1000S store a maximum of 16 programs, copy multiple files to the SD card in order after formatting the SD card as "FAT" format.
The program must be named in orders . Ex.: 00_1.led, 01_1.led, 02_1.led.

Kindly note
(1) To copy files to SD card, you must first format to the SD card, pay attention to is that each copy must be formatted before.
(2) SD card must be formatted as "FAT" format.
(3) When T1000S controller load less than 512 pixels the frame rate can reach 30fps.
(4) When T-1000s control more than 512 pixels the frame rate will slow down automatically.
(5) T1000S must use the new software LedEdit 2012.
(6) Please read the description carefully and confirm whether you can use it. If need be, please contact us before place the order.
(6) Please download user manual and LedEdit 2012 software by these links.

Company Introduction:

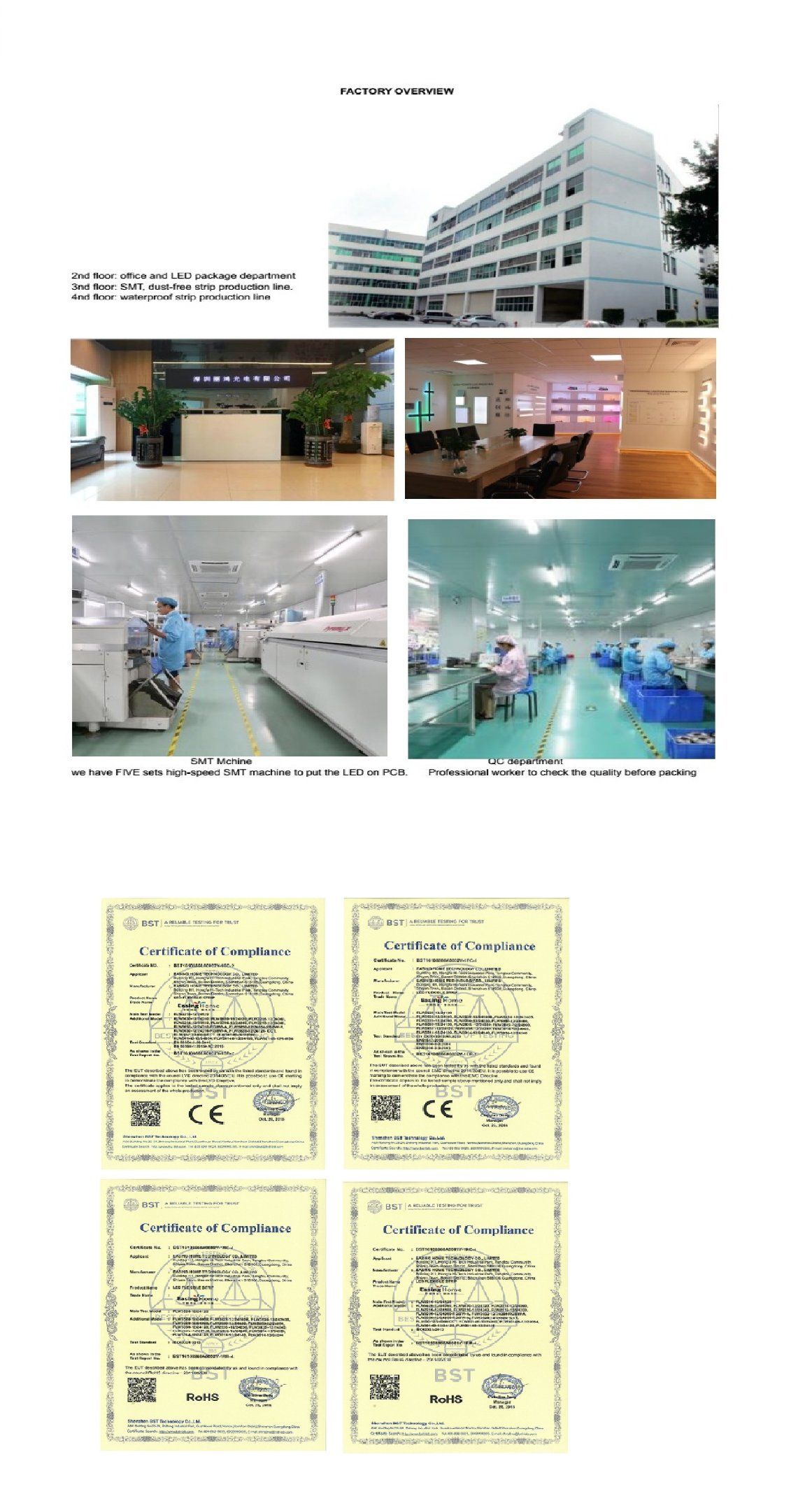

Easing Home Technology Co. Ltd established in 2008 and own 4,000 meters factory, specializing in producing and manufacturing aluminum profile, LED strip for LED lighting.
