| Prod Model: |
YL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frane: |
71-132 |
| Power: |
0.25kw-5.5kw |
| Core Wire: |
Copper |
| Mounting: |
B3, B35, B5, B14 |
| Protection Class: |
IP44 |
| Insulation Class: |
F |
| Application: |
Universal |
| Operating Speed: |
High Speed |
| Number Of Stator: |
Single-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Closed Type |
| Starting Mode: |
y-δ Starting |
| Species: |
Yl |
| Number Of Poles: |
2, 4 |
| Certification: |
CE |
| Brand: |
Qizhen |
Product Description

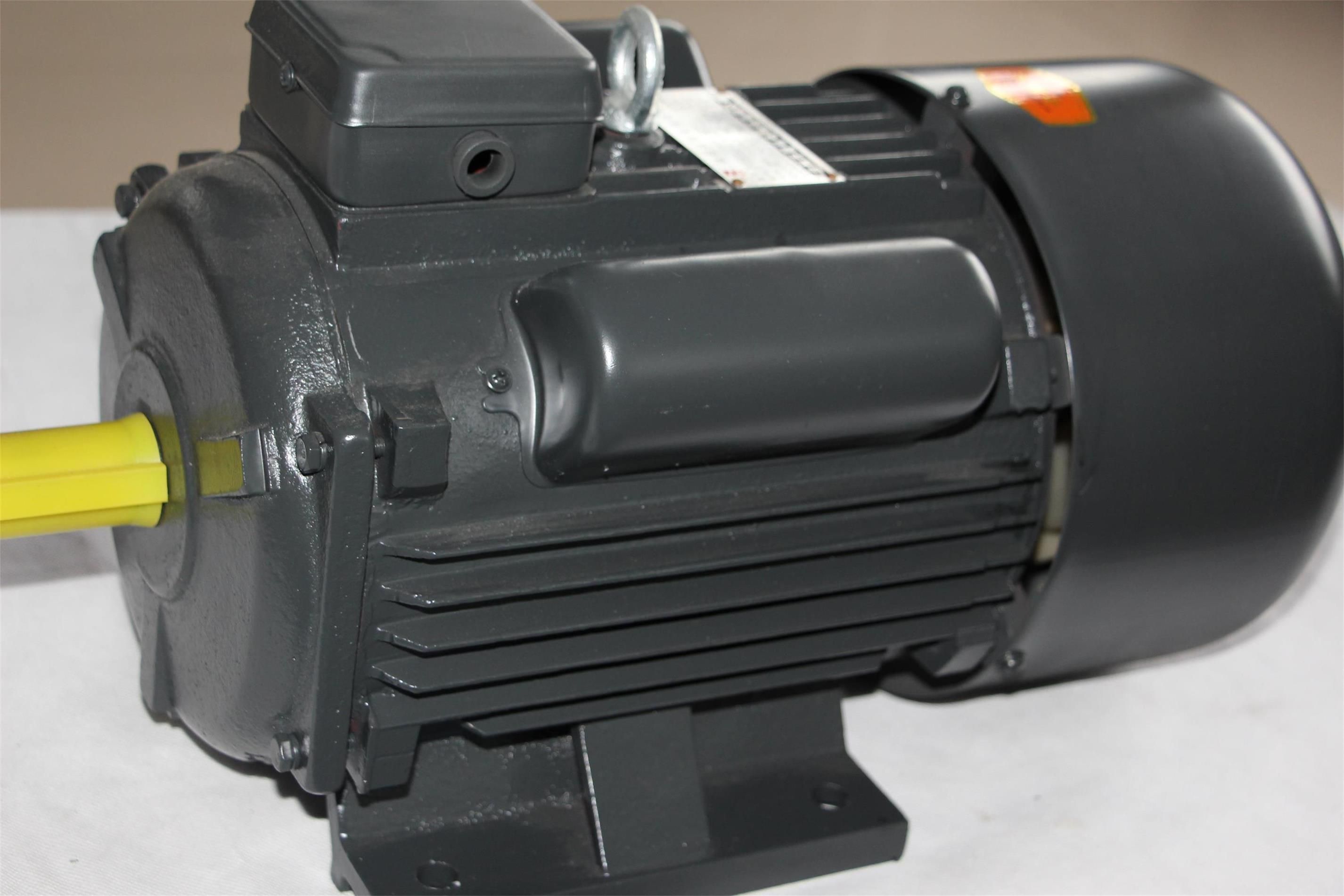

220v single phase induction small electric motor with starting capacitor
YL series single phase dual -capacitor induction electric motor is designed and manufactured in according with national standard, with the advantages of low noise, compact structure, light weight, easy maintenance, etc.
Details:
- Protection Class: IP44/IP54/IP55
- Rated Voltage: 115/230,220V
- Rated Frequency: 6 0 Hz(50Hz)
Application Scope:
These motors are widely used in air compressors, pumps, fans, refrigeration, medical instruments,small-size machines, etc, especially for occasion where only single-phase power supply is available.
Technical Data:
Model | Power ( KW) | Current ( A) | Speed (r/min ) | Efficiency Eff % | power factor | locked rotor torque
Rated torque | LRC
A |
| YL 711-2 | 0.37 | 2.2 | 2800 | 67 | 0.92 | 1.8 | 16 |
| YL 712-2 | 0.55 | 3.9 | 2800 | 70 | 0.92 | 1.8 | 21 |
| YL 801-2 | 0.75 | 4.9 | 2800 | 72 | 0.95 | 1.8 | 29 |
| YL 802-2 | 1.1 | 7.0 | 2800 | 75 | 0.95 | 1.8 | 40 |
| YL 90S-2 | 1.5 | 9.4 | 2800 | 76 | 0.95 | 1.7 | 55 |
| YL 90L-2 | 2.2 | 13.7 | 2800 | 77 | 0.95 | 1.7 | 80 |
| YL100L1-2 | 3 | 18.2 | 2800 | 79 | 0.95 | 1.7 | 110 |
| YL112M-2 | 4 | 26.6 | 2850 | 77 | 0.82 | 2.2 | 175 |
| YL 711-4 | 0.25 | 2.0 | 1400 | 62 | 0.92 | 1.8 | 12 |
| YL 712-4 | 0.37 | 2.8 | 1400 | 65 | 0.92 | 1.8 | 16 |
| YL 801-4 | 0.55 | 4.0 | 1400 | 68 | 0.92 | 1.8 | 21 |
| YL 802-4 | 0.75 | 5.1 | 1400 | 71 | 0.92 | 1.8 | 29 |
| YL 90-4 | 1.1 | 7.3 | 1400 | 73 | 0.95 | 1.7 | 40 |
| YL 90-4 | 1.5 | 9.7 | 1400 | 75 | 0.95 | 1.7 | 55 |
| YL 100L1-4 | 2.2 | 13.9 | 1400 | 75 | 0.95 | 1.7 | 80 |
| YL 112M-4 | 3 | 18.6 | 1400 | 77 | 0.95 | 1.7 | 110 |
| YL132S-4 | 4 | 27.1 | 1400 | 78 | 0.77 | 2.2 | 175 |
| YL132M-4 | 5.5 | 31.2 | 1400 | 78 | 0.79 | 2.2 | 200 |
Packing :
To avoid damp, inner layer wrapped with plastic paper
To lessen vibration, middle layer filled with foam
To avoild squeeze, motor are packed with plywood or wooden case Customized package is also acceptOur Company1.We are professional manufacturer with more than 17 years experience.
2. We are Alibaba Assessed Gold Supplier and Trade Assurance.
3. Every year 500,000 to 600,000pcs of electric motor were exported .
4.we test the material beforeand during production to ensure the quality
also we produce according to your quirement
5.Best production capability,best quality control,best service
6.we can be your OEM manufacturer with your authorization of brand.
Pre-sales service:
- We value every inquiry sent to us, ensure quick competitive offer within 12 hours.
- We cooperate with customer to design and develop the new products.
Provide all necessary document.
- We are a sales team, with all technical support from engineer team.
- 100% test after each process and final test before packing
After sales service:
- We respect your feed back after receive the goods.
- We provide 12-24 months warranty after goods arrive.
- We promise all spare parts available in lifetime use.
There are some questions you may come up with :
1. Q: What is your MOQ of this item?
A: Our MOQ is a full 20ft container, but for the first time cooperation,
we accept samples order to check quality.
2. Q: Is it all right to make customers' own brand name?
A: Sure, we can be your OEM manufacturer with your authorization of brand.
3. Q: What are your payment terms?
A: 30% T/T deposit, 70% balance before shipment or L/C at sight.
4. Q: How long is your warranty?
A: One year after receive B/L.
5. Q: What is the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.
