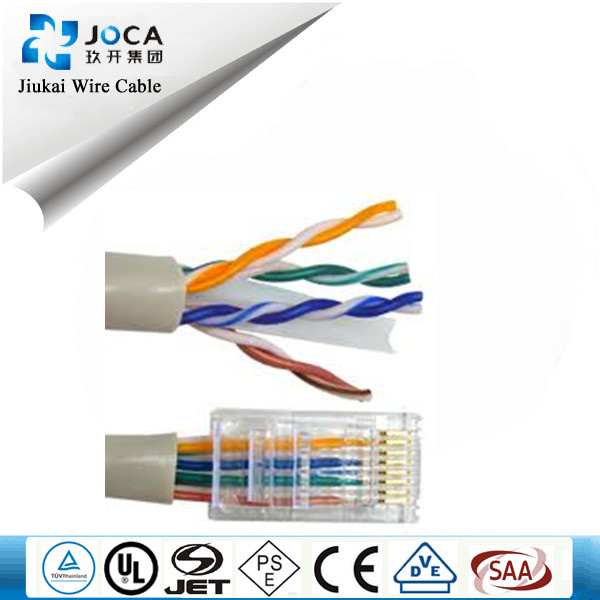

23AWG Network LAN Cable, Communication Cable

Prod Model:	JK Communication Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sheath Color:	According to The Requires
Test Standard:	ISO/IEC11801 Tia-568-C.2 Yd/T1019
Surface Printing Color:	Black
Carton Dimension:	According to The Requires
Rip-Cord:	Yes
Drain Wire:	No
Application:	Network Cable
Conductor Material:	Copper
Cover Material:	PVC
Type:	Cat 6
Certification:	VDE
Model:	Jk Communication Cable
Brand:	Jiukai

Product Description

Item:23AWG Network LAN Cable,Communication Cable ---Code:JK Communication Cable

Product Description & Parameters

CAT6 0.56mm UTP CCA CABLE
ITEM		UNIT		DESCRIPTION
CONDUCTOR	MATERIAL	MM		CCA            (copper clad aluminum)
	CONSTRCTION	MM		23AWG(0.56)
	OD	MM		0.56
INSULATION	MATERIAL	MM		HD-PE
	AL BRAIDED			64
	THICKNESS	MM		0.18
	OD	MM		0.92
TWIST PAIR	N/A			1.BLUE*WHITE/B
	N/A			2.ORANGE*W/O
	N/A			3.GREEN*W/G
	N/A			4.BROWN*W/B
JACKET	MATERIAL			PVC
	THICKNESS			0.6
	OD			6+0.2M/M
				CMR
MARKING	UTP 4PR 23AWG CAT6 TO TIA/EIA 568B  001FT
CHARACTERISTIC
TEMPERATURE  RATING			75ºC
VOLTAGE RATING			30V
UL  STYLE			2835
CONDUCTOR RESISTANCE			23AWG 9.38/100M MAX
UNBALANCE RESISTANCE			5 PERCENT MAX
PROPAGATION DELAY			518NS/100M MAX(100MHZ)
DELAY SKEW(NS)			45NS/100M MAX
TEST BASIS			ANSI/EIA/TIA568



Packaging & Shipping
1.Wooden Drum+Wooden Pallet/Wooden Box.
2. The goods will be sent to the customers by ship if the quantity of the order is big. On the contrary, it will be sent to the customers by DHL Express. Of course, whatever it is ,it is up to the customer's request.

Packaging Details	1.Plastic/Wooden Drum:100M/Roll,500M/Roll,1000M/Roll
	2.According to customer requirement.
Delivery Detail	7~15 days


Certification
  CCC,VDE,TUV,CE,PSE,UL and so on.


Related product
Item:UTP CAT5E Network LAN Cable
Coductor:24awg copper
Pe:0.9insulation
Groudwire:nelon
Jacket:PVC

Why Choose US
1.Jiukai sends all the items with Outgoing Quality Inspection Report;
2.The copy of TUV certification will be sent along with the products;
3.We guarantee100% good quality when the products are sent out of factory;
4.Jiukai is ship to world wide;
5.Most orders ship within 7 days on payment received;
6.We ship the goods by the fastest way of EMS,UPS,DHL and TNT,reaching most countries within 7 days;
7.Once we shipped the products,our after-sale service will send you the tracking number;
8.If your item is not as described or faulty when you receive it,we will send replace it for you with no additional charge;
9.If the item is found non-defective,the item will be sent back to the buyer at buyer's expense.

Company Information
Shanghai Jiukai Wire&Cabel Co.,Ltd. is a national high and new tech enterprise. We consistently dedicate to the R&D, production and sales of wires and cables.
We mainly produce 10 categories(thousands of kinds)cables, such as audio&video cable, elevator cable, data cables,computer cable, CAT5E LAN cable, CAT6E cable, solar PV cable, UL Wire,flexible cable and special cable.
With so many years' manufacturing experience, our cables are well sold to America, Europe,Middle-east, Southeast Asia and Africa. And all our cables has already got the certificates of national or international professional testing organizations, such as China CCC certificate, US UL certificate, European Union CE Certificate, German TUV, Quality system certification certificate ISO9001:2000. And we get the honors of "Recontract And Trustworthy Enterprise", "Measurement Qualified Enterprises","China Top Brand" and "China Cable Manufacturer TOP100.


FAQ
Q:How long is the product's service life?
A: Very long service life more zhan 25 years at 90ºC
Q:What are the product's characteristics?
A:1.UV,ozone and hydrolysis resistant
  2.High temperature resistant,the materials do not metl or flow
  3.Good cold flexibility
Q:Scope of application?
A:Compatible to all popular connectors
Q:What is the size of your company?
A:JOCA holding group is an enterprise group, integrated research, manufacture & trade.
  The group has he group total registered capital RMB 250 million & occupied area 1800 thousand sqm including building area 1000 thousand sqm.
  The group has more than 800 sets nowadays domestic & foreign advanced cable equipment, yearly production capacity RMB 1.6 billion,600 employees and nearly domestic & overseas representative offices or branch companies.
  Subsidiary company Shanghai Jiukai Wire & Cable Co., Ltd, Jiukai Communication Technology (Shangshai) Co., Ltd & Wuxi City Qunxing Wire & Cable Co., Ltd are fully invested Wholly owned companies by JOCA group in cable, telecommunication & integrated general wiring industry.
Q:What is the turnover of the company?
A:Our turnover was 7 billion last year.
Q:What kind of certifications do you have?
A:Such as China CCC certificate,US UL certificate,European Union CE Certificate,German TUV,Quality system certification certificate ISO9001:2000,Japanese Standard PSE certificate and so on,
   And we get the honors of "Re-contract And Trustworthy Enterprise ","Measurement Qualified Enterprises" , "China Top Brand" and "China Cable Manufacturer TOP 100 " and so on.
Q:How long solar cable can be loaded in one 20" container?
A:Can load:1×4mm² solar cable 250km; 1×6mm² solar cable 200km;1×10mm² solar cable 120km;1×16mm² solar cable 80km;2×4mm² solar cable 128km;2×6mm² solar cable 80km.
Q: Does the company take relevant exhibition ?
A:Yes,of course!We have taken relevant exhibition in Australia,Japan, Thailand, the united Arab emirates,Mexico
