24-Key Aluminum Infrared Controller with IR (GN-CTL006)

Name: 24-Key Aluminum Infrared Controller with IR (GN-CTL006)
Brand: all-electronics-online.com
SKU: 735396225
Availability: InStock
Rating: 5 (45 reviews)

Price:	US $ 4-4.5/Piece
Trade Terms:	FOB
Min Order:	5/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GN-CTL006
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Control The LED Lamp
Application:	LED Products
Signal Transmission:	IR Remote Control
Certification:	RoHS
Universal:	Universal
Transmission Distance:	<50m
Voltage:	12V

Product Description

Product Description

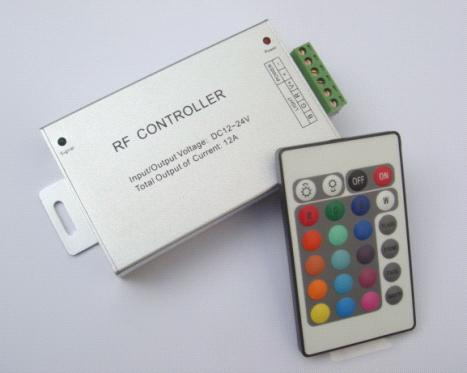

24-key aluminum infrared controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; It has many advantages such as low price, easy connection and simplicity to use. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through infrared remote control. In addition, customers can adjust their light color as they like.

TechnicalParameters
Working temperature: -20-60° C
Supply voltage: DC5V, 12V~24V
0utput: 3channels
Connecting mode: Common anode

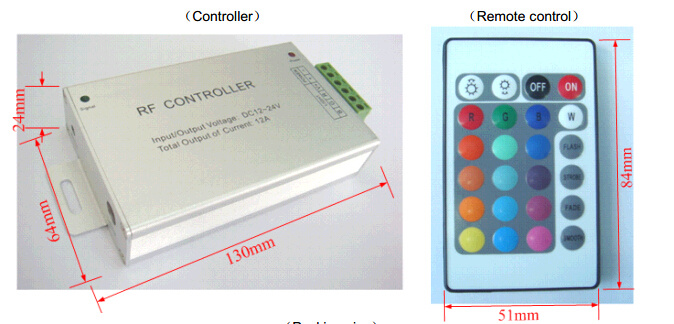

External dimension: L130*W64*H24mm
Packing size: L137*W80*H54 mm
Net weight: 185g
Gross weight: 215g
Static power consumption: <1W
Output current: <4A(each channel)
Output power: 5V: <60W, 12V: <144W, 24V: <288W
