Name: 24V 240V 3000W Inverters 110V Transformer 2000W
Brand: all-electronics-online.com
SKU: 739901105
Availability: InStock
Rating: 4.5 (107 reviews)

Price:	US $ 111-1555/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SC300-SC10KW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Power:	300W to 10kw
Rated DC Voltage:	12/24/48/96V
Output Voltage:	110V/120/220/230V
Solar System Type:	off Grid System
Controller Capacity:	10A to 100A
Control Method:	PWM/MPPT
Voltage:	220V
Generating Methods:	Solar Power Generation
Phase:	Single Phase

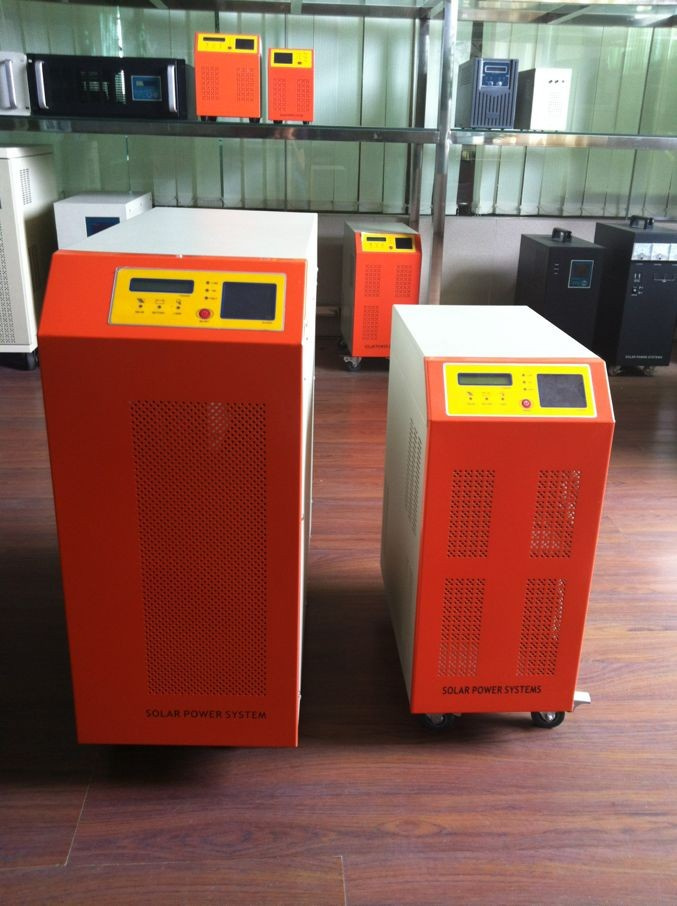

Product Description

24v 240v 3000w inverters, inverter 230v 5000w, 220v 110v transformer 2000w

Feature:
1. Combine with solar power controller and inverter hybrid function.
2. Completely controlled by CPU.
3. Inverter use copper transformer, pure sine wave output.
4...Two LCD displays, clearly to know the status.
5. Have bypass function and AC charger (UPS function)
6. Perfect protection. Protect against anti-charge at night, battery over charger/over discharge, output short-circuit, against overload, against over-voltage, over-current protection, etc.
Working way below optional:
1. The city power priority: When it have city power, inverter will work bypass output, city power take the load directly; When have both city power and sun power, inverter will charge 2 kinds power to battery.
When city power failed, just charge solar power to battery.

2. Battery power priority: When it have sun power, just charge sun power to battery, and take the load,
When it has not sun power, inverter will use battery power take the load.
When battery power is lower, inverter will automatically use bypass function to take the load, and charge to battery at the same time.
(before order, need confirm us for which working way you need)

Model		SC1500		SC2000	SC3000	SC5000
Rated power(W)		1500W		2000W	3000W	5000W
Rated DC voltage(V)		24Vor48V		48V or 96V
Line input	Input voltage(V)	165-275V, 90-127V
	Charge current(A)	7-25A
Inverter output	Output voltage(V)	220VAC±5%
	Output frequency	50Hz/60Hz±1%
	Wave form	Pure Sine Wave, THD<4%(Full Load)
Solar input	Maximum voltage(V)	42V or 88V or 176V
	Rated power(Wp)	1500		2000	3000		5000
Solar Controller	Charge current(A)	50/30		40/30	60/40		80/60
	Control range(V)	24v(20-34)48v(40-68),96v(80-136)
	Charging efficiency	90%-95%, Peak on 97%
Other	Over charge protective voltage of battery(V)	24V(28.6),48V(57.2),96V(114)
	Over charge recover-voltage of battery(V)	24V(27.4),48V(54.8),96V(109.6)
	Voltage drop between solar module and battery(V)	≤0.5V
	Voltage drop between loads and battery(V)	≤0.25V
	Start speed of cooling fan	Have
	Environment Humidity	0-90% Maximum,non-condensable
	Protective Functions	Protection against anti-charge at night;Battery over charge/over discharge protection; Joint-reversed of solar modules
	Control mode	MPPT
Size :DWH(mm)		450230480			450230570
N.W&G.W(kg)		26/32	32/38		40/49			49/58
