Prod Model: |
BND-MS10 |
Warranty: |
1 Year |
Moisture Range: |
0-50% 0-100% |
Conductivity Range: |
0-5000us/Cm 0-10000us/Cm 0-20000us/Cm Custom Desig |
Supply Voltage: |
3.6-30V DC 12-30V DC 2.7-16V DC |
Line Length: |
2m |
Measurement Parameters: |
Soil Moisture/Ec./Temperature |
Electrode Length: |
70mm |
Operating Environment: |
-40~85°c |
The Material Of The Probe: |
Food Grade Stainless Steel |
The Measurement Precision Of Soil Temper: |
±0.5ºC |
Material: |
316L Steel Stainless |
Measuring Medium: |
Ec/Temp./Moisture |
Product Description

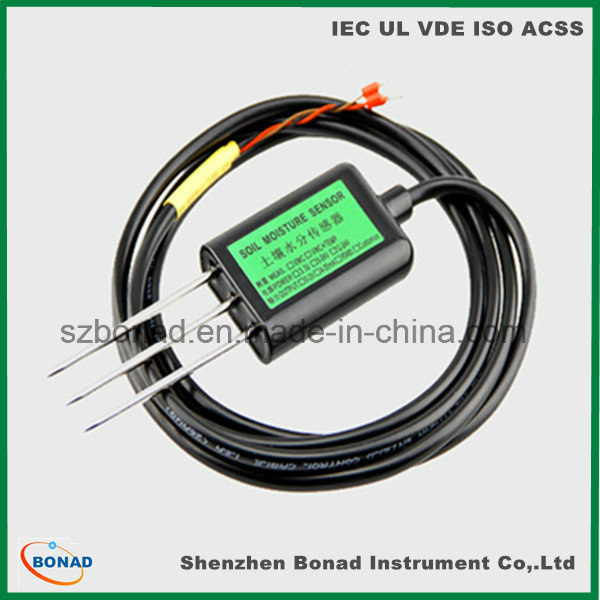

24V RS485 20mA soil moisture temperature sensor
Product Description
MS10 RS485 soil moisture / electric conductivity / temperature 3 in 1 soil sensor
MS10 soil moisture / conductivity / temperature sensor is high sensitivity and stable performance.It is the important tool for observation and study of the occurrence, evolution of saline soil, as well as for improved water and salt dynamic.By measuring the dielectric constant of the soil, can be stably directly reflect the true moisture content of various soils.MEC10 soil moisture sensor measures the soil moisture volume percentage, soil moisture measurement methods in line with current international standards.Suitable for soil moisture monitoring, scientific experiments, water-saving irrigation, greenhouse, flowers, vegetables, grass pastures, fast testing of soil, plant culture, sewage treatment, precision agriculture and other occasions.
Sensor has the following characteristics:
(1) soil moisture, Electric conductivity and temperature 3 in 1.
(2) can be used on one of the fertilizer solution , as well as on testing Electric conductivity between the other nutrient and the matrix.
(3) the electrode is used of specially treated alloy material that can withstand strong external shocks, difficult to damage.
(4) it is completely sealed, acid corrosion, can be embedded directly into the soil or water for long-term dynamic testing.
(5) High accuracy, fast response, good interchangeability, measuring probe into the design to ensure accurate and reliable performance.
(6) perfect protection circuit and a variety of signal output interface optional.
Detailed Images
Technical Parameters |
Output Signal | Voltage Output0-2V (The output impedance of approximately 0 Euro) | Current output4-20mA Load Resistance <500ohm) | RS485 Interface Modbus Protocol |
Supply voltage | 3.6-30V/DC DC | 12-30V/DC DC | 3.6-30V/DC DC |
Static power | 6mA@24V DC DC | 50mA@24V DC DC (Two current output channels are 20mA) | 6mA@24V DCDC |
Soil moisture range | Range:0-50%,0-100% Resolution:0-50%(0.03%),50-100%(1%) Accuracy:0-50%(2%),50-100%(3%) |
Electric conductivity Range | Range:0-5000us/cm,10000us/cm,20000us/cm Resolution:0-10000us/cm(10us/cm), 100000-20000us/cm(50us/cm) Accuracy:0-10000us/cm(±3%);10000-20000us/cm(±5%) |
Conductivity Temperature Compensation | Built-in temperature compensation sensor,Compensation range0-50ºC |
Temperature measurement range | Range:-40~80ºC,Resolution:0.1ºC,accuracy :±0.5ºC |
The measuring principle | FDR method of soil moisture, soil conductivity AC bridge method,Insert situ soil or immersed in broth, or integrative water and fertilizer nutrient solution to test directly. |
Protection class | IP68 Immersion in water can be used for a long |
Operating Environment | -40~85ºC |
Probe material | Special electrode corrosion |
Sealing material | Black flame retardant epoxy resin |
Mounting | All buried or probes inserted all measured media |
The default cable length | 2M, can be customizable |
Connection | Preloaded cold terminal |
Size | 45*15*145mm |
Electrode length | 70mm |
Model Selection
Code number | Code | Code Description |
Code 1:Products | MEC10 | MEC10 soil moisture,soil electric conductivity (EC)and soil temperature 3 in 1 |
Code 2:Measurement parameters | A | Soil moisture,soil electric conductivity (EC)and soil temperature 3 in 1 |
Code 3:Soil moisture range | A
B | 0-50%
0-100% |
Code 4:Conductivity Range | A B C D | 0-5000us/cm 0-10000us/cm 0-20000us/cm Custom design |
Code 5:Supply voltage | A B C D | 3.6-30V DC 12-30V DC 2.7-16V DC Custom design |
Code 6:Output signal | A B C D E F G | Voltage Output 0-2V Current output 4-20mA RS485 interface ,Modbus Protocol RS485 interface,Modbus Protocol & Voltage Output0-2V RS485 interface,Modbus Protocol & Current Output4-20mA SDI-12 interface Custom design |
Code 7:Line length | 002 XXX | 2M Custom design |
Code example: MEC10 soil sensor,Soil moisture range:0-100%,soil electric conductivity range:0-10000us/cm,3.6-30V power supply,RS485 interface,Modbus protocol,5M cable.Code sample :MEC10 - A B B A C 005 |
