Ms20 2.7V Soil Humidity and Temperature Sensor

Name: Ms20 2.7V Soil Humidity and Temperature Sensor
Brand: all-electronics-online.com
SKU: 801594355
Availability: InStock
Rating: 5 (111 reviews)

Price:	US $ 59-199/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	BND-MS20
Delivery Time:	3-7days
Warranty:	1year
Product Name:	Soil Humidity and Temperature Sensor
Input Voltage:	4.2-30V/DC
Average Working Current:	<10mA
Soil Moisture Measurement:	± 2% for 0-53%; ± 4% for 53-100%
Soil Temperature Measuring Range:	-40~80ºC
Working Temperature:	-40~85ºC

Product Description

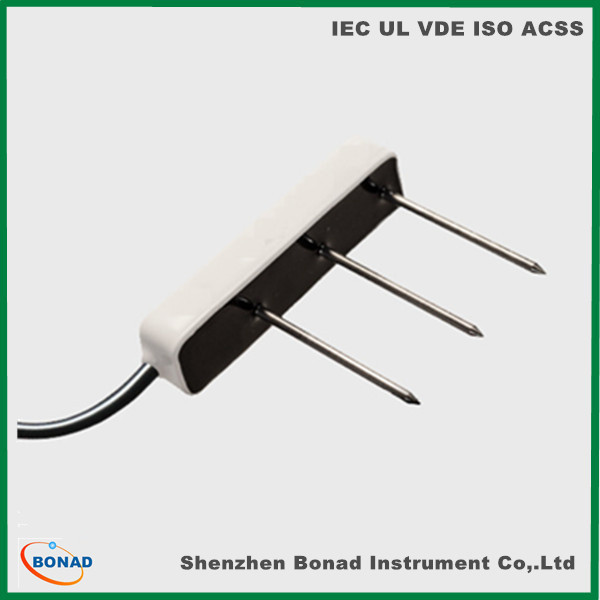

MS20 2.7V soil humidity and temperature sensor

Technical Parameter
Signal output type	RS485 interface	Voltage output	Voltage output (Low-voltage)	Current output
Output range	Modbus Protocol	0-2V 0-5V 0-10V Customize	0-1V 0-2V	4-20mA Customize
Input voltage	4.2-30V/DC	4.2-30V/DC	2.7-16V	12-30V/DC
Average working current	<10mA	<10mA	<7mA	<15mA (without output current)
Feature	Customize soil type Multi-connection Digital transfer High precision Remote access	Many output voltages to be specified.	Instrument usage	Remote access
Soil moisture measurement area	A 7cm diameter, 7cm height cylinder which the center is the probe.
Response time (moisture and temperature)	Less than 1 second
Soil moisture measurement range	0-50% volumetric moisture content ; 0-100% volumetric moisture content
Soil moisture measurement accuracy	± 2% for 0-53%; ± 4% for 53-100%
Soil temperature measuring range	-40~80ºC
Soil temperature measurement accuracy	±0.4ºC
Protection grade	IP68, full-time working in water
Working temperature	-40~85ºC
Storage temperature	-40~85ºC
Material of the probe	Special corrosion resistant stainless steel
Sealing material	Black flame retardant epoxy resin
Installation	Wholly buried or put the probe into all the measured medium
