Mec10 Soil Temperature and Moisture Ec Sensor for Greenhouse

Name: Mec10 Soil Temperature and Moisture Ec Sensor for Greenhouse
Brand: all-electronics-online.com
SKU: 801242475
Availability: InStock
Rating: 4.7 (122 reviews)

Price:	US $ 59-199/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	BND-MEC10
Power Supply Voltage:	3.6-30V/DC
Maximum Power Dissipation:	6mA@24V DC
Temperature Measuring Range:	-40~80ºC
Accuracy:	±0.5ºC
Operated Environment:	-40~85ºC
Outer Size:	4515145mm
Delivery Time:	3-7days
Warranty:	1year
Material:	Stainless Steel

Product Description

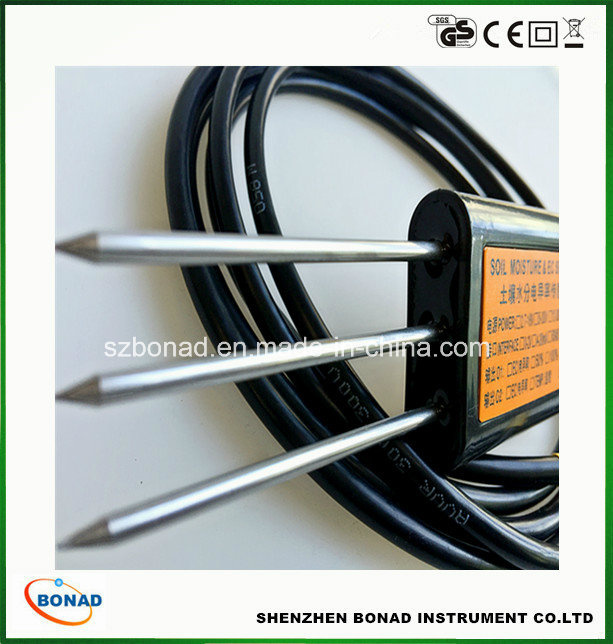

MEC10 soil temperature and moisture ec sensor for greenhouse

MEC10 soil ec sensor is performance, high stability and sensitivity .it is an important tool for observing and studying the occurrence, evolution, improvement and salt-water dynamics of saline soil.By measuring the dielectric constant of the soil ,Can directly and steadily reflect the true moisture content of various soils.MEC10 soil moisture sensor can measure the volume of soil moisture percentage,it Is in line with current international standards for soil moisture measurement methods,Applies to soil moisture content monitoring,science experiment,Water Saving Irrigation,greenhouse,flowers and vegetables ,Grassland pasture etc

Technical Parameters
Signal output	Output voltage 0-2V (output impedance 0 ohm)	Current output 4-20mA(load resistance<500ohm)	RS485 interface, Modbus protocol
Power supply voltage	3.6-30V/DC	12-30V/DC	3.6-30V/DC
Maximum power dissipation	6mA@24V DC	50mA@24V DC (When the two current output channel is 20mA)	6mA@24V DC
Conductivity range	Optional range:0-5000us/cm,10000us/cm,20000us/cm resolution:0-10000us/cm within 10us/cm, 100000-20000us/cm within 50us/cm Accuracy 0-10000us/cm range is ±3%; 10000-20000us/cm range is ±5%
Conductivity temperature compensation	Built-in temperature compensation sensor,compensation range 0-50ºC
Temperature measuring range	range:-40~80ºC,resolution:0.1ºC,accuracy:±0.5ºC
Measuring principle and measuring method	In situ soil insertion or Immersed into the culture medium,Water and fertilizer integrated nutrition To check directly
waterproof grade	IP68
Operated environment	-40~85ºC
Probe material	Corrosion special electrode
Sealing material	Black flame retardant epoxy resin
Installation	All buried or probe fully inserted to be tested
The default cable length	2meters,Cable length can be customized
Outer size	4515145mm
Electrode length	70mm
