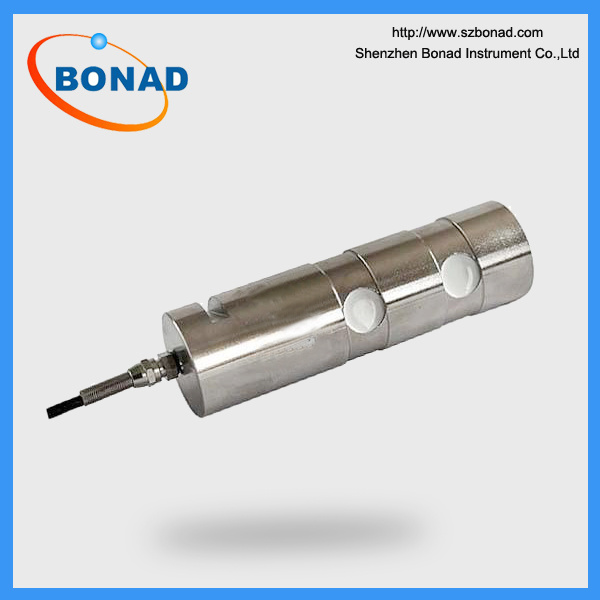

High Precision Load Cell Pin with Double Shear Beam Structure

Name: High Precision Load Cell Pin with Double Shear Beam Structure
Brand: all-electronics-online.com
SKU: 809960215
Availability: InStock
Rating: 4.4 (146 reviews)

Price:	US $ 99-199/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	BND-CFZX
MOQ:	1 Unit
Warranty:	1 Year
Material:	Alloy Steel
Pattern:	Single Point Load Cells

Product Description

High Precision Load Cell Pin with Double Shear Beam Structure

Capacity:1~40 (Ton)
Features:
• Double shear beam structure
• Anti- twist
• High precision
• Anti-bias load
• Good strength
Application:Suitable for lifting, water conservancy, shipbuilding and other industries in the process control and measurement systems.

Detailed Information

Parameters	Unit	Technical Parameter	Parameters	Unit	Technical Parameter
Sensitivity	mV/V	1.0-2.0±0.05	temperature sensitivity coefficient	≤%F·S/10°C	±0.05
Nonlinear	≤%F·S	±0.1	Operating Temperature Range	°C	-20°C~+80°C
Lag	≤%F·S	±0.1	Input Resistance	Ω	750±20Ω
Repeatability	≤%F·S	±0.05	Output Resistance	Ω	700±5Ω
Motility changes	≤%F·S/30min	±0.1	Safety overload	≤%F·S	150%F·S
Zero output	≤%F·S	±1	Insulation Resistance	MΩ	≥5000MΩ(50VDC)
Zero temperature coefficient	≤%F·S/10°C	±0.05	Recommended excitation voltage	V	10V~15V

Schematic :

Capacity	A	B	C	D	E	F	G
2ton~5ton	120	40	15	15	25	6	6
10ton	160	55	20	22	40	8	8
15~20ton	200	65	25	27	50	10	8
30~40ton	250	85	30	32	80	12	10

Packaging & Delivery

Packaging : carton box
Delivery : Within3~ 15 days after receiving your payment.

FAQ
1.What's your MOQ?
MOQ for most of our products is 1 unit. If you purchase more products, you will get a better price accordingly.
2.Do you have an OEM/OED service?
Yes! Please contact us for details.
3.What's the lead time?
It depends on the product and the qty.
If it is in stock, 3~7 days will be taken. Normally, 1~2 weeks for most products. 4~7 or more weeks will be needed for complex ones.
Please contact us to confirm.
4.What's the payment term?
T/T, Western Union, Money gram ,PayPal ,etc .
5.What's the shipping way?
Via air , sea or express like DHL, UPC, TNT, FedEx and so on.
6.What's your after-sales service policy?
One year warranty and life long tech support.
