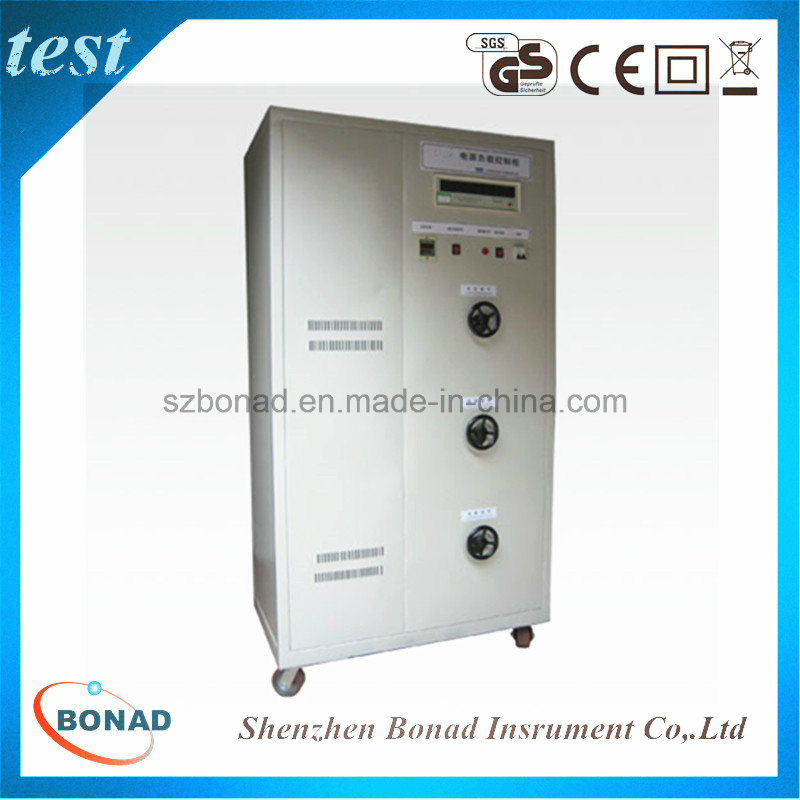

UL1054 Electrical Annex Power Load Cabinet for Pulg Life Test

Prod Model:	BND-FZ
Delivery Time:	3-7days
Product Name:	Power Load Cabinet
Warranty:	1year
Input Power:	AC 220V, 40A, 50 / 60Hz
Output Current:	AC 5-20A/30A/40A/60A
Output Voltage:	AC 0-300V
Power Factor:	0.3-0.96 Continuously Adjustable
Accuracy:	V: 0.5, I: 0.5, Cos: 0.03
Counter:	0 ~ 999999 Times Can Be Preset
Number Of Output:	1 Road
Type:	Power
Structure:	Protection

Product Description

UL1054  electrical annex power load cabinet for pulg life test

1, according to GB2099.1, GB16915.1, GB15092, UL1054 and IEC standards and other related electrical life of electrical accessories and other relevant provisions of the design of ancillary equipment.

Resistive and inductive test loads are available for all types of electrical accessories.

2, supporting mechanical action testing machine equipment - such as plug and socket life testing machine, switch life testing machine, bending test machine,
can be carried out capacity test, breaking capacity test and normal operation test.

Technical Parameters:
1, the input power: AC 220V, 40A, 50 / 60Hz;

2, the output: resistive, resistive + inductive;

3, the output current: AC 5-20A continuously adjustable (can be customized 30A, 40A, 60A);

4, the output voltage: AC 0-300V continuously adjustable;

5, power factor: 0.3-0.96 continuously adjustable;

6, accuracy: V: 0.5, I: 0.5, COS: 0.03;

7, the counter: 0 ~ 999999 times can be preset;

8, work: intermittent or continuous mode;

9, the number of output: 1 Road

10, the reference standard: GB2099.1-2008, GB16915.1-2003, GB15092.1-2003

11, the reference standard: Dimensions: 900 *1700 *760 (mm)

12,type:Capacitance /resistance

Note: the output current of 30A, 40A, 60A models were BND-FZ3, BND-FZ4, BND-FZ6

This model have several types ,different type have different price. if you need other model please tell us ,thanks
