| Prod Model: |
BND-CZL301U |
| Precison: |
C2 & C3 |
| Comprehensive Error(%F.S): |
0.03 & 0.02 |
| Rated Output(Mv/V): |
2.0 |
| Creep(%F.S/30min): |
.024 & 0.016 |
| Zero Balance(%F.S): |
1.0 |
| Nput Resistance: |
350 |
| Output Resistance: |
350 |
| Insulation Resistance: |
5000(100VDC) |
| Compensated Temp. Range: |
-10~+40 |
| Safe Overload (%F.S): |
150 |
| Material: |
Alloy Steel |
| Pattern: |
Single Point Load Cells |
Product Description

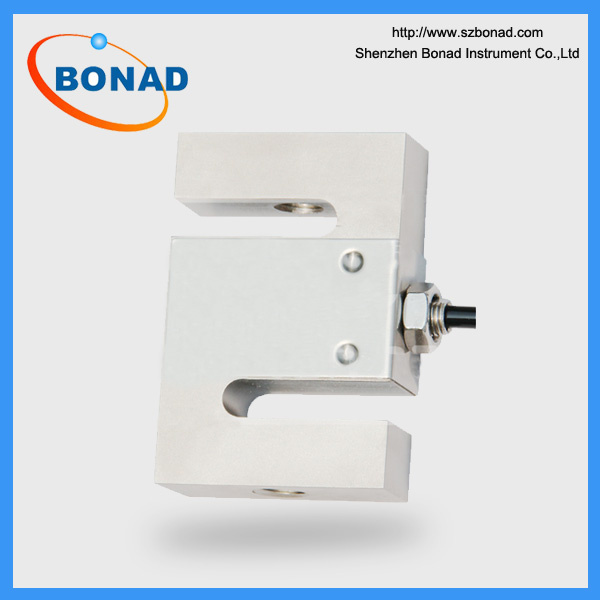

Model BND- CZL301U SS-Type Alloy Steel Load Cell
Rated load: 10kg,150kg,200kg,250kg,300kg,500kg,1000kg,2000kg
Feautures: Alloy steel structure; bellows hermetically sealed by laser, nickel plated waterproof and anticorrosion, suitable for multiform environments; suitable for electronic platform scales, hopper scales, and otherelectronic weighing devies.
Parameters:
| Model Number | BND-CZL301U |
| Material | Alloy steel |
| Precison | C2 & C3 |
| Comprehensive error(%F.S) | ±0.03 & ±0.02 |
| Rated output(mv/v) | 2.0±0.004 |
| Creep(%F.S/30min) | ±0.024 & ±0.016 |
| Zero balance(%F.S) | ±1.0 |
| Input resistance(Ω) | 350±5 |
| Output resistance(Ω) | 350±3 |
| Insulation resistance(MΩ) | ≥5000(100VDC) |
| Temp. effect on span(%F.S/10ºC) | ±0.017& ±0.011 |
| Temp. effect on zero(%F.S/10ºC) | ±0.023 & ±0.015 |
| Compensated temp. range(ºC ) | -10~+40 |
| Use temp. range(ºC ) | -20~+55 |
| Excitation voltage(V) | 9~12(DC) |
| Safe overload (%F.S) | 150 |
| Ultimate overload (%F.S) | 200 |
| Defend grade | IP66 |
specification
Rate load(kg)
|
A |
B |
C
| D | M |
| 10--50 | 51 | 12.7 | 64 | 16.1 | 8 |
| 100--150 | 50.8 | 19 | 76.2 | 22.4 | 10x1.5 |
| 200--2000 | 50.8 | 19 | 76.2 | 22.4 | 12x1.75 |
Wiring schematic diagram:
| Color | Type |
| Red | Input ( + ) 11 |
| White | Output ( - ) |
| Black | Input ( - ) 1 |
| Green | Output ( + ) |
| Notes: It used 4-core shielded cable(φ5×3000mm).. |
