25pair UTP Cat5. E Network LAN Cable
| Price: |
US $ 10-70/Box |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Box |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
| Prod Model: |
25P UTP CAT5. E LAN Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Number Of Conductors: |
More Than 10 |
| Conductor O.D: |
24AWG*2*4 |
| Conductor: |
Cu/ CCA |
| Insulation: |
HDPE |
| Outer Jacket: |
PVC |
| Length: |
1000 Feet(305m) |
| Qty Of Cable In Couple: |
4p/10p/25p/50p/100p |
| Dielectric Strength: |
1000VAC 1min |
| Type: |
Cat 5 |
| Certification: |
UL |
| Application: |
Telecommunication |
| Cover Material: |
PVC |
| Model: |
25p UTP Cat5.E LAN Cable |
| Brand: |
Daytai |
Product Description
25Pair UTP CAT5.E Network Lan Cable
25Pair UTP CAT5.E Lan Cable Description
CAT.5E-UTP-4PAIR Cable,(24AWG*2*4)CU OR CCA+HDPE+Rip Cord+PVC.
25Pair UTP CAT5.E Lan Cable Physical Features
1.Specification: 24 AWG.
2.Length: 1000 Feet(305M)
3.Quantity of Cable In Couple:4P,10P,25P,50P,100P.

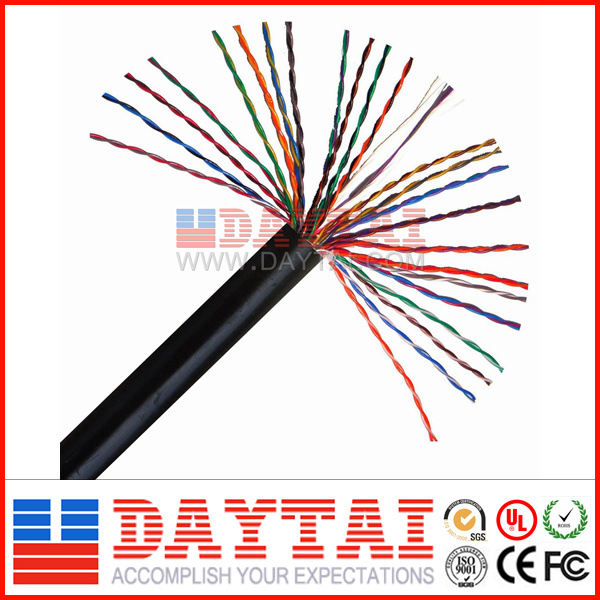

UTP CAT5.E Lan Cable Pictures:
25Pair UTP CAT5.E Lan Cable Electronic Performance
A.
| Frequency (MHz) | RL(dB) | Attenuation (dB/100M) | Next Worst Pair
(dB) | Next Power Sum (dB) | Elfext worst pair (dB) | Nominal Velocity Propagation |
| 0.772 | 16.7 | 1.8 | 64.0 | 64.0 | 63.0 |
0.65 |
| 1.0 | 17.0 | 2.0 | 62.3 | 62.3 | 6.08 |
| 4.0 | 18.8 | 4.1 | 53.3 | 53.3 | 48.7 |
| 8.0 | 19.7 | 5.8 | 48.8 | 48.8 | 42.7 |
| 10.0 | 20.0 | 6.5 | 47.3 | 47.3 | 40.8 |
| 16.0 | 20.0 | 8.2 | 44.3 | 44.3 | 36.7 |
| 20.0 | 20.0 | 9.3 | 42.8 | 42.8 | 34.7 |
| 25.0 | 19.3 | 10.4 | 41.3 | 41.3 | 32.8 |
| 31.25 | 18.6 | 11.7 | 39.9 | 39.9 | 30.9 |
| 62.5 | 16.5 | 17.0 | 35.4 | 35.4 | 24.8 |
| 100 | 15.1 | 22.0 | 32.3 | 32.3 | 20.8 |
B.
| DC Resistance | 94 Ω KM Max @20ºC |
| DC Resistance unbalance | 3% Max |
| Characteristic Impedance | 100±15Ω@1-100MHz |
| Capacitive Unbalance | 3.4Pf/m Max. |
| LCL | 45dB |
| Structural Return Loss | 23dB/100m,1-20MHz,Min |
| 23-10Log(f/20)dB,f=20-100MHz |
| Propagation Velocity(%,min) | 58-70% |
Time Propagation Delay | 570ns/100m,1MHz,Max |
| 540ns/100m,10MHz,Max |
| 530ns/100m,100MHz,Max |
| Distortion Of Time Propagation Delay | 45ns/100m,1-100MHz,Max |
| Insulation Resistance | 150MΩ,KM.Min.500Vdc |
| Dielectric Strength | 1000Vac 1Min |
| Rated Voltage | 220 Vac Max |
